BSQ-SP204S BeamSquared SP204S M2 Measurement System, 266-1100 nm, USB 3.0

BSQ-SP204S

Model：BSQ-SP204S
Description：

BSQ-SP204S Datasheet

Price(USD)：$0

Content Software Video

Model	BSQ-SP204S
Sensor Type	CMOS
Spectral Range	266-1100 nm
Communication Interface	USB 3.0
Active Area	6.7mm x 5.6mm
Elements	2472 x 2064
Effective Pixel Pitch	2.74μm x 2.74μm
Dynamic Range	67 dB
Full Resolution Frame Rate	37 fps
Beam Size	1 - 10 mm (Auto Mode)
Camera Model	SP204S
Software	BeamSquared
CE Compliance	Yes
UKCA Compliance	Yes
China RoHS Compliance	Yes

Automatic M² - at Production Speeds

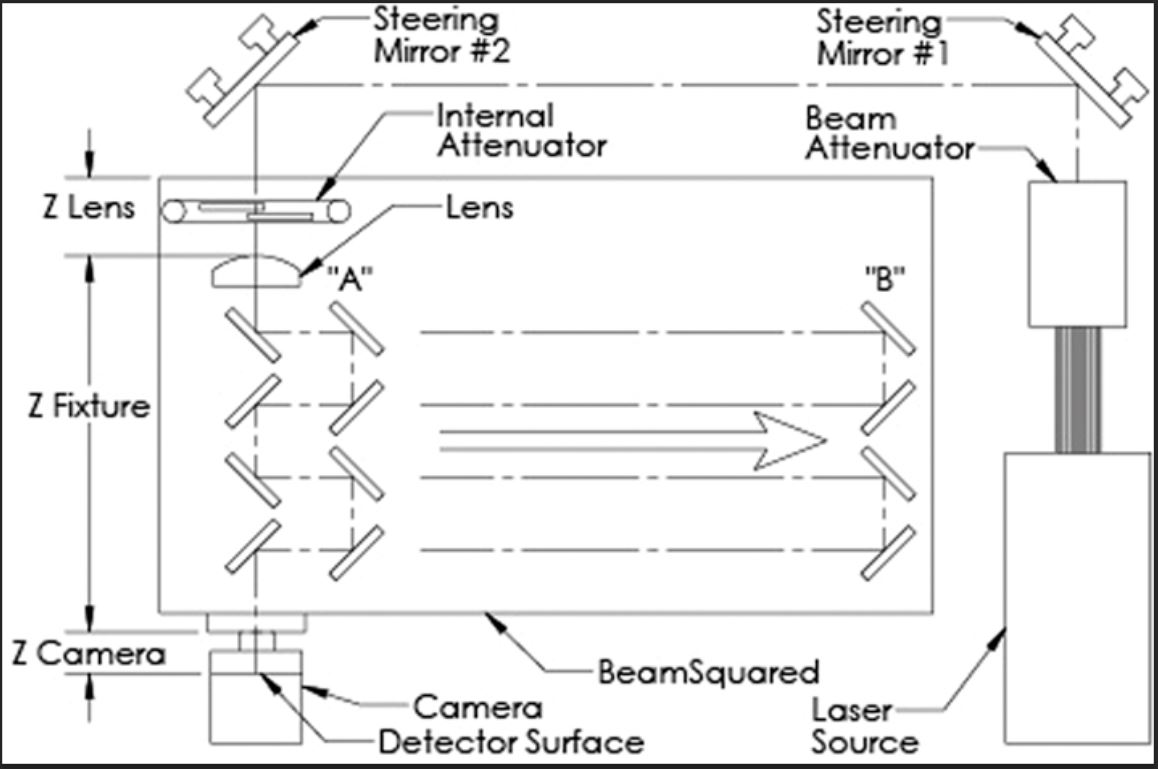

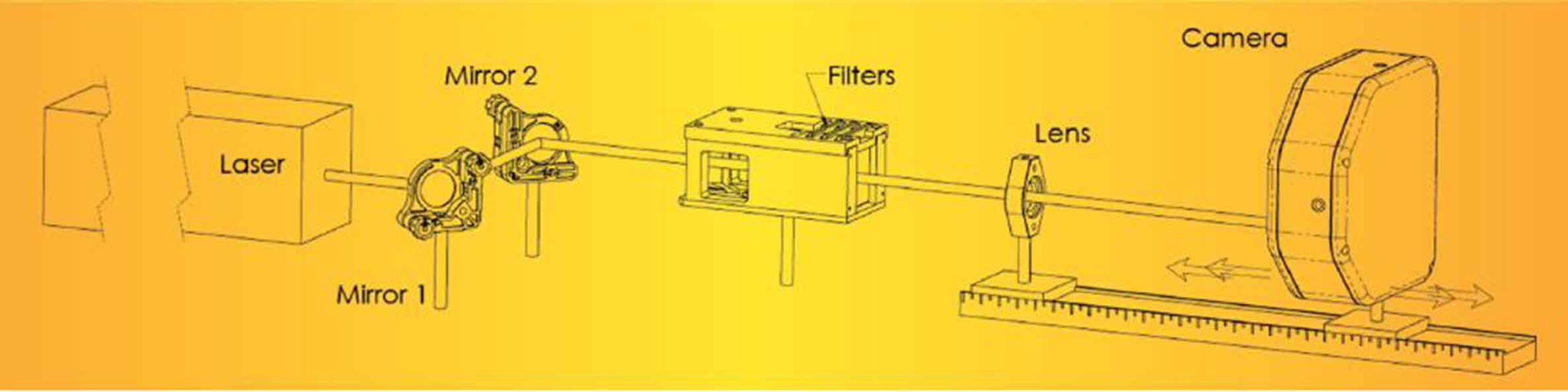

and camera. The mirrors that direct the focused beam into the camera are moved to precise locations, translating the beam through the near field, the waist, and the far field regions. All these measurements and translations, as well as incremental beam attenuation, are automatically controlled by the BeamSquared software. Design improvements in the BeamSquared system have decreased the measurement reporting time by 2-3 times, making it possible to report M² in under a minute.

Manual M²
Manual mode is available for wavelengths greater than NIR, particularly Terahertz and above, and for beams that are too large or too small for the BeamSquared optical system. Users are required to provide a manual translation/attenuation apparatus.

Accuracy by Design
Spiricon products are known for accuracy. Using our patented Ultracal calibration method, auto aperturing to exclude noise beyond the wings of the laser beam, and long optical path, assures the user of the most accurate measurements in the industry.

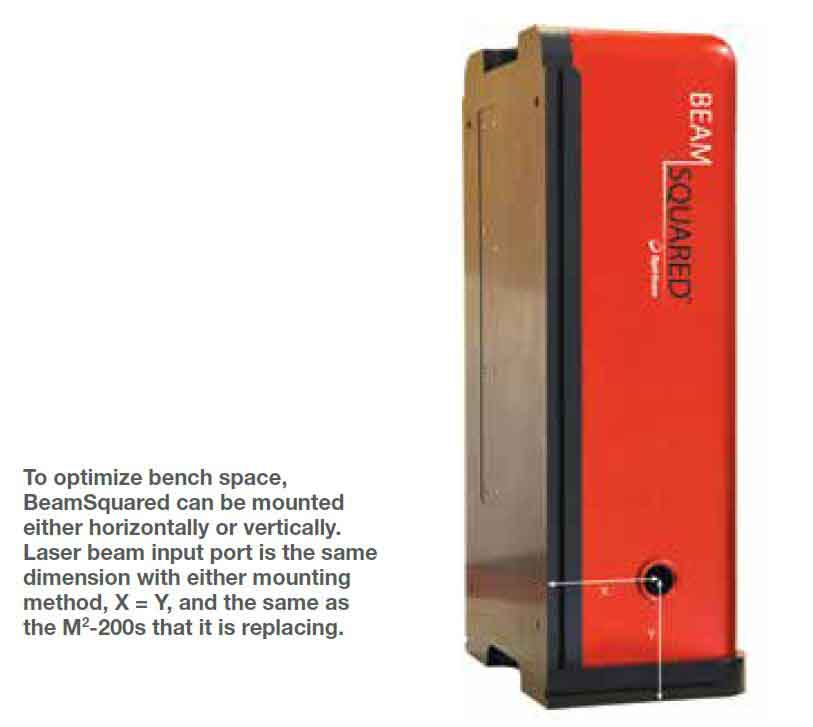

Designed by Our Customers
Guided by customer input from our widely deployed previous generation M2-200s system, Spiricon redesigned the BeamSquared to meet the challenging demands of the laser industry. The new BeamSquared system has significantly higher durability and operational robustness for continuous use in a three shifts a day, seven days a week environment. The rigid baseplate and internal optics greatly simplifies and reduces the time for initial set-up and alignment. The system configuration is now stored using an RF ID chip embedded in the lens holder which is uploaded automatically by the BeamSquared system when the lens cartridge is inserted in the system, eliminating the need for our customers to keep track of configuration file. Both novice and seasoned users will appreciate these new features along with the time-tested excellence that Spiricon has provided over the years.

Measurements
• BeamSquared measures propagation characteristics in both the X and Y axes and displays the following parameters:
• Waist diameters
• Full angle Divergences
• Waist locations
• Rayleigh lengths
• M2 or K and BPP factors
• Astigmatism
• Asymmetry

Main Screen Functions

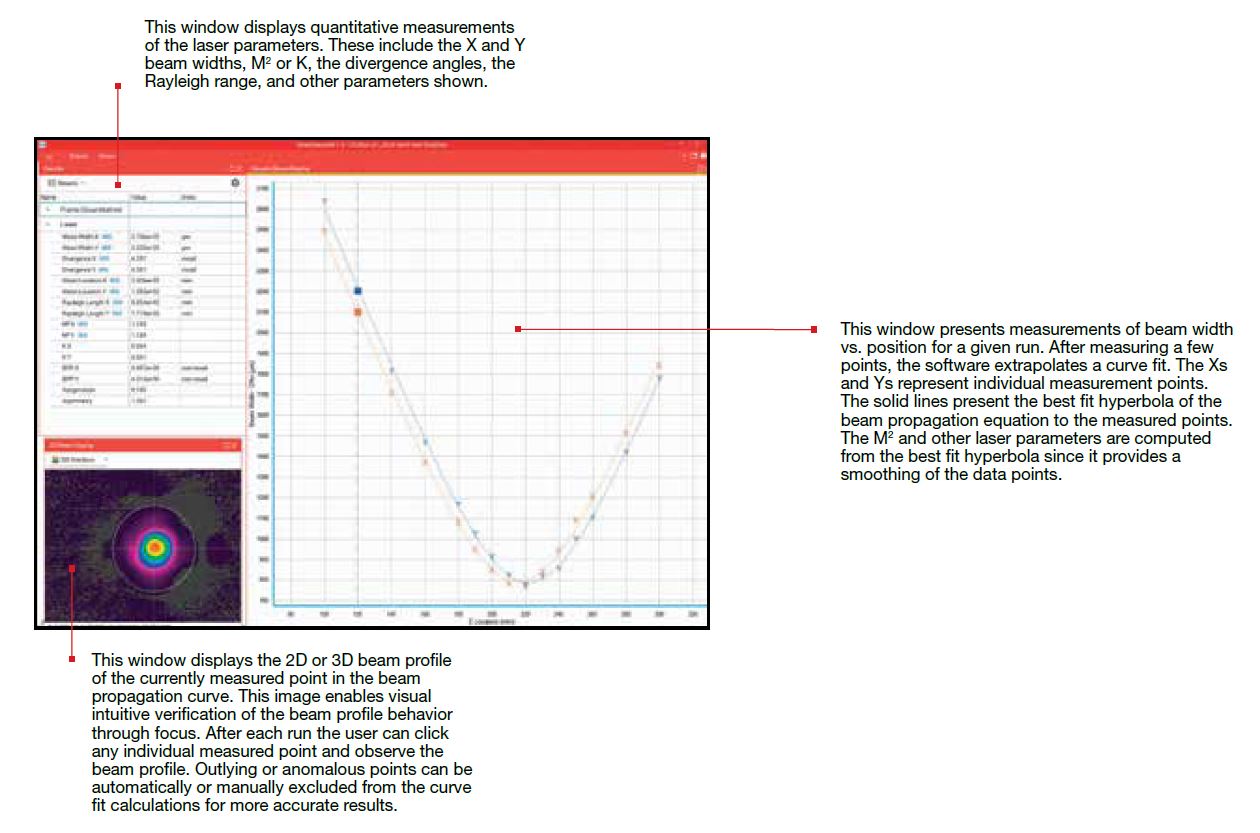

BeamSquared M² Propagation Analyzer		BeamSquared Automated ISO Set-Up

Introducing the BeamSquared, a compact and fully automated tool for measuring the propagation characteristics of continuous wave and pulsed laser systems from the UV to NIR to Telecom wavelengths.		This video describes the BeamSquared software Auto ISO measurement feature, which makes obtaining an ISO compliant beam measurement as easy as "align and click."
