產品型號：Development Kit with Scan Module
產品說明：
產品說明：
-

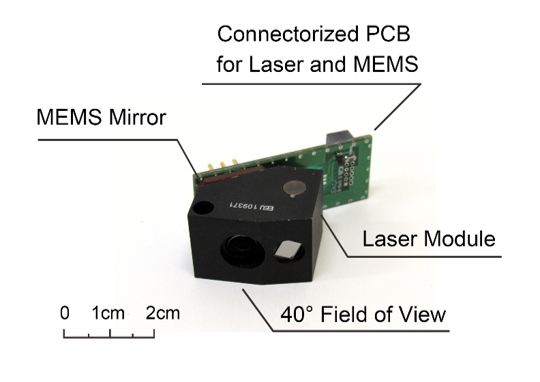

In other development kits there are individual MEMS Mirrors included which can be used with kit accessories or other user optics to develop optical beam steering applications. In this kit, a Scan Module is included instead which is a pre-assembled (integrated) optomechanical cell which includes a MEMS Mirror, a laser diode, beam shaping and wide angle scanning optics.
The Scan Module includes a very fast dual-axis quasi-static MEMS Mirror of 1.0mm diameter (A7M10.2-1000AL). With this easy-to-use option users can experiment and develop laser beam scanning applications with optical scanning angles of -17° to +17° (on both axes) with a high speed mirror with all optics pre-aligned, assembled, and enclosed. Standard version includes a green laser Scan Module "EaZy4.0G", set by the MEMS Controller to output maximum laser power of 4-4.99mW. Laser intensity is controlled with Mirrorcle software based on 8-bit laser driver (0-255).
Other wavelengths are also possible (red, blue, or violet) with longer lead times and tooling fees.
