1. 材料微處理
2. 眼科
3. 半導體與電子
4. 顯示器製造
5. 電池製造
6. 黑色打標
1. 極為堅固穩定
2. 可調重複率、脈衝持續時間、功率
3. 高脈衝能量與乾淨的脈衝形狀
4. 被動式空氣冷卻 (水冷卻可選)
5. 免維護與交鑰匙
6. 防塵保護
| |
Model |
| Specifications |
Indylit 20 |
Indylit 20 SH |
| Central wavelength |
1030 ± 2 nm |
515 ± 1 nm |
| Spectral bandwidth (FWHM) |
< 4 nm |
< 3 nm |

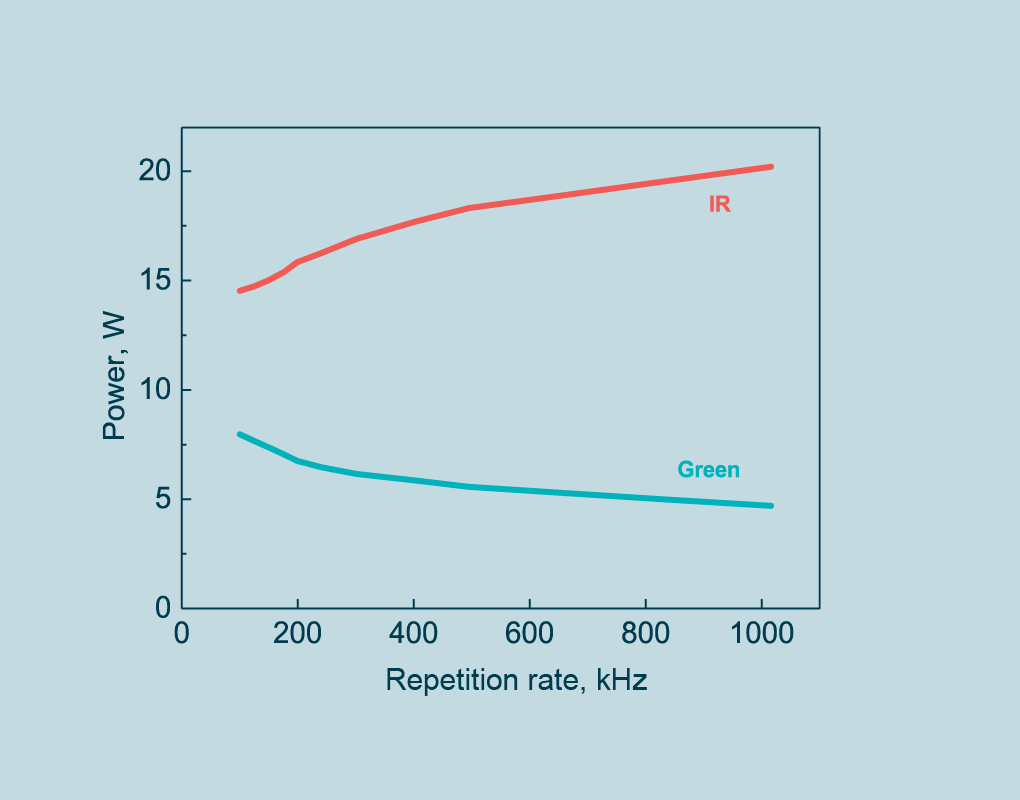

| Average power |
> 13 W @ 100 kHz |
> 7 W @ 100 kHz |
| > 18 W @ 1MHz ( Typ 20W @ 1MHz ) |
> 3 W @ 1MHz |

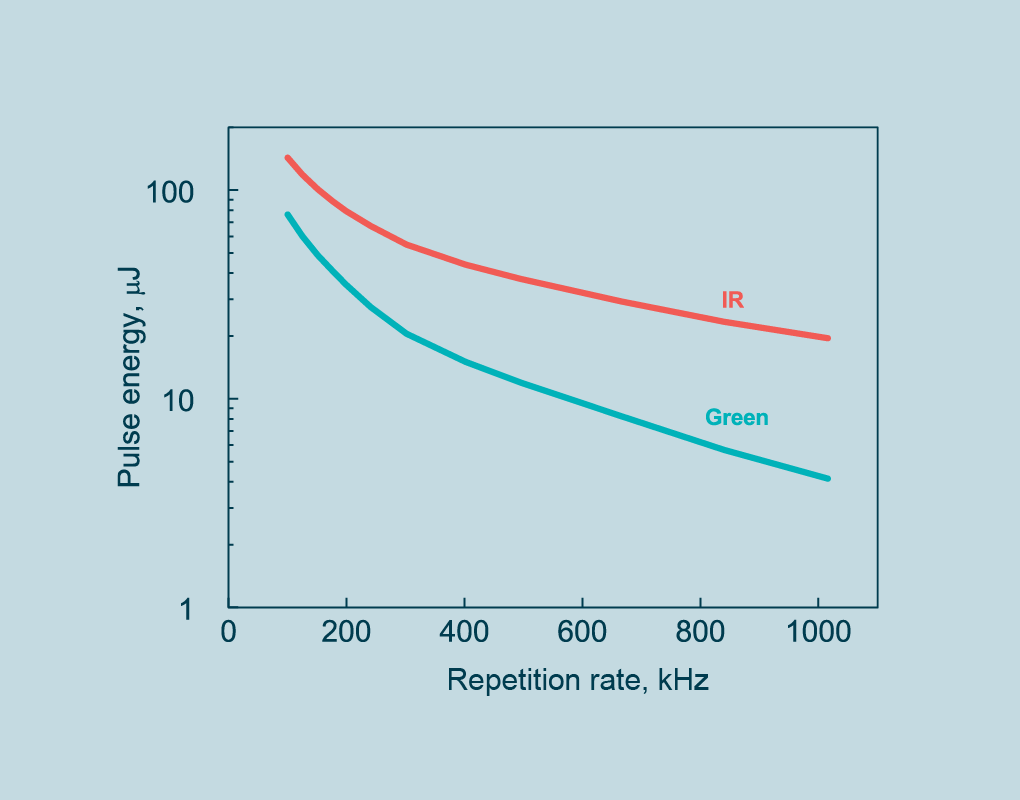

| Max. pulse energy |
> 130 μJ |
> 70 μJ |

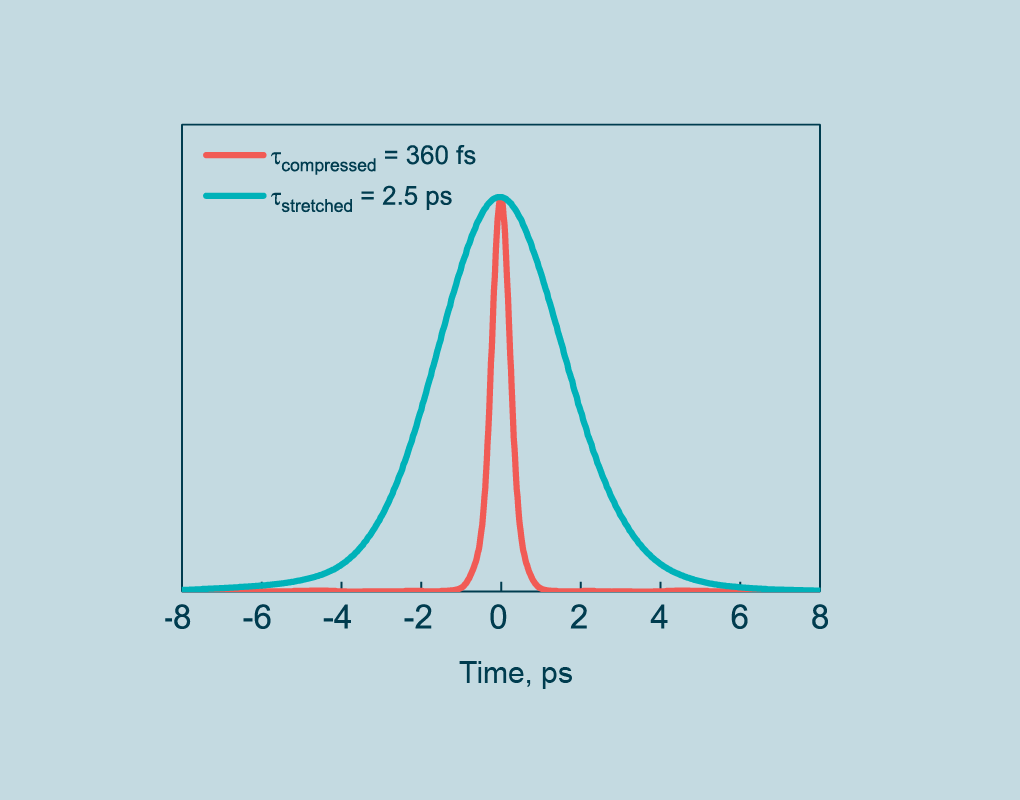

| Pulse duration |
< 400 fs |
| Pulse duration tunability |
400 fs – 2 ps |
N/A |
| Switch time between outputs |
< 1 s |
| Internal pulse repetition rate |
100 kHz – 1 MHz, down to 30 kHz in burst mode |
| Pulse picker |
Integrated |
| Triggering mode |
Pulse picker control via TTL gate |
| Burst length |
1...12 pulses |
| Max. energy in burst |
> 500 μJ |
> 200 μJ |
| Power attenuation |
100 – 1% |

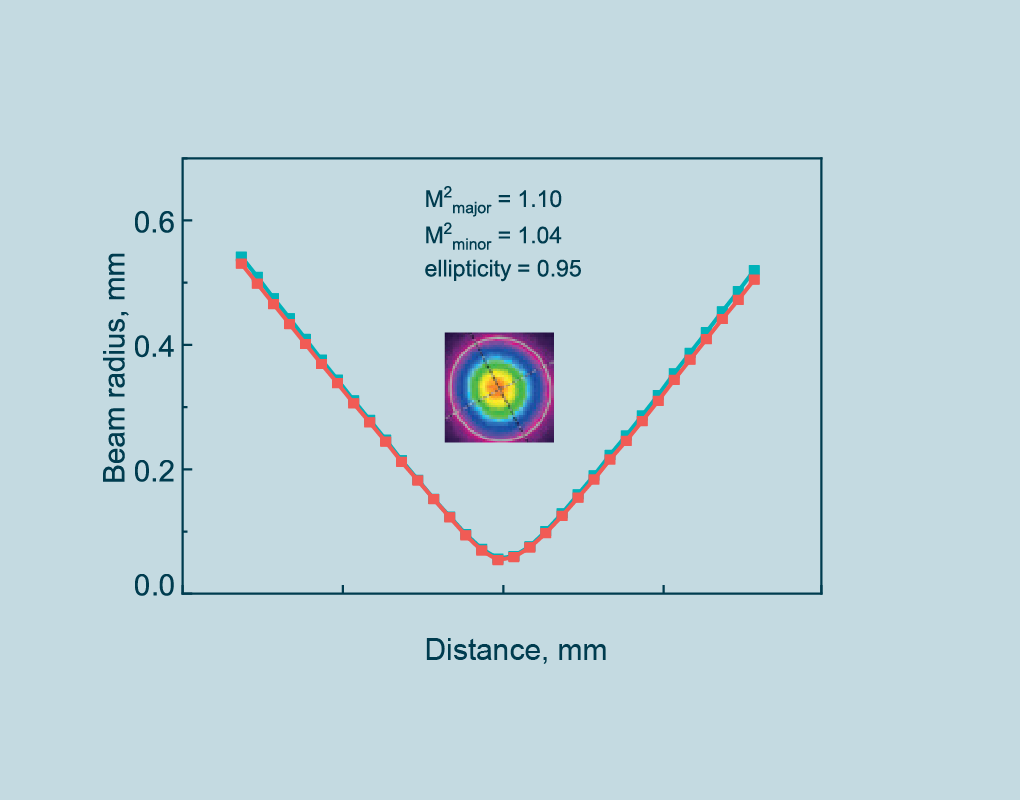

| Beam quality |
M² < 1.2 |
| Beam circularity |
> 0.90 |
> 0.85 |
| Beam diameter (at 1/e² level) |
2.6 ± 0.3 mm |
2.2 ± 0.3 mm |
| Polarization |
Linear horizontal, > 200:1 extinction |
| Prepulse contrast |
> 1:1000 |
| Post pulse contrast |
> 1:100 |
| Beam divergence (full angle) |
< 1 mrad |

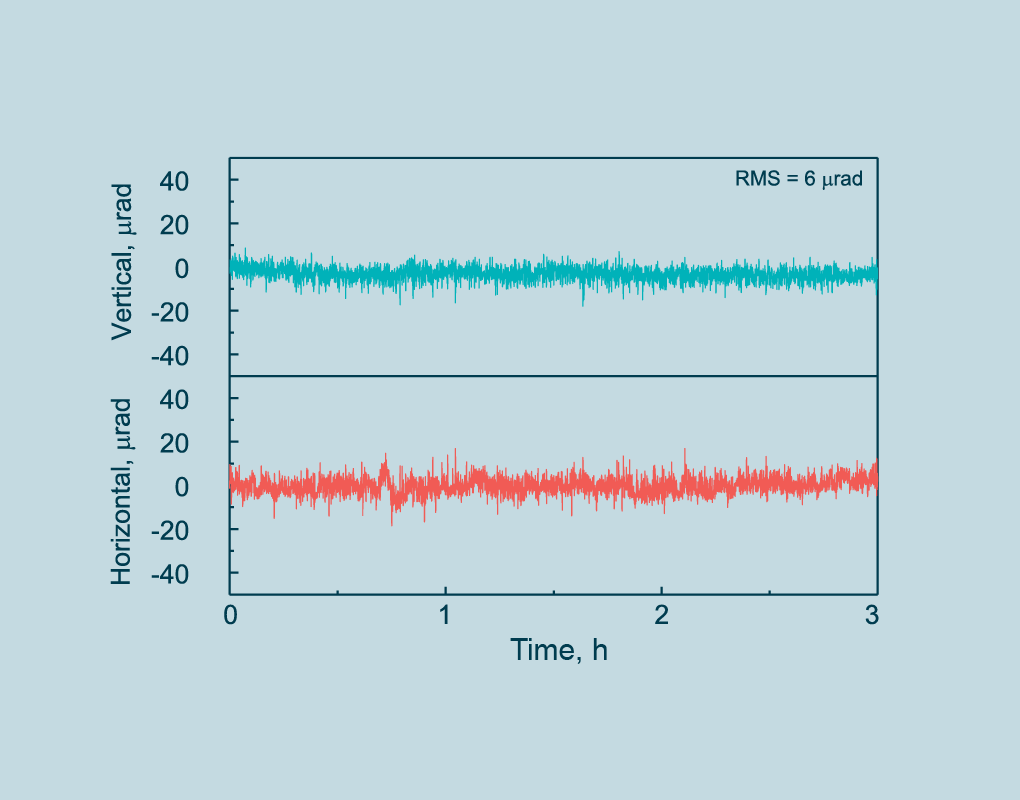

| Beam pointing (RMS) |
< 20 μrad |
| Beam pointing vs temp. |
< 20 μrad/°C |

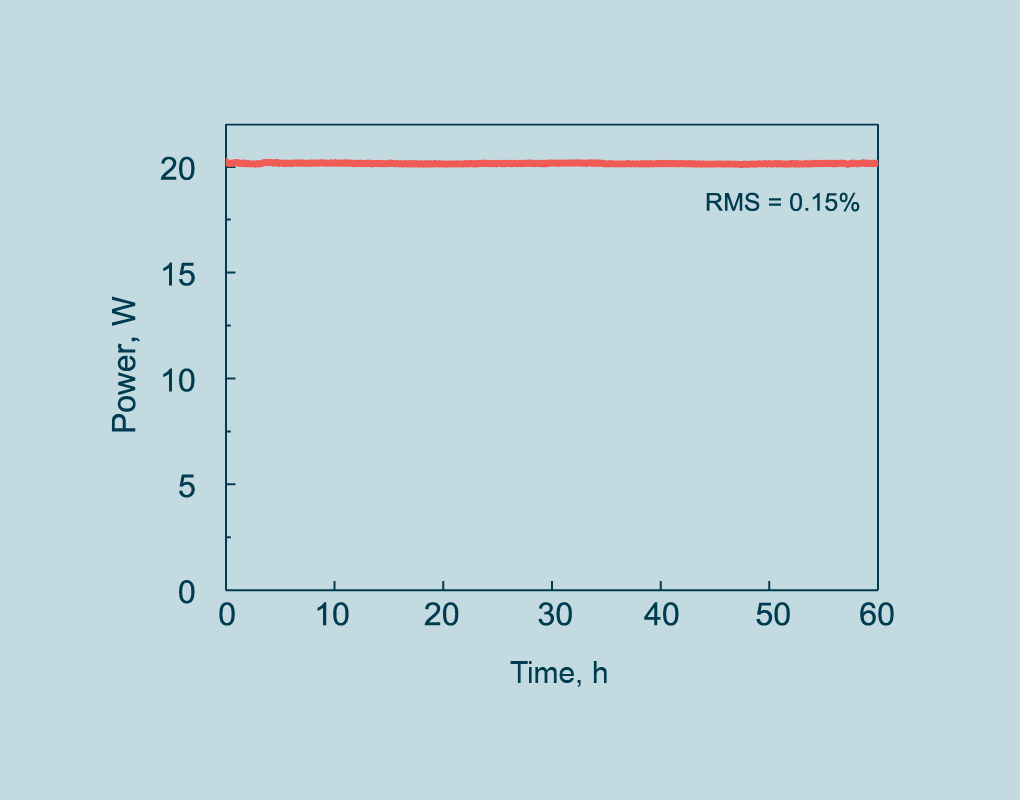

| Power Stability (RMS) |
< 1% |
< 2% |
| Pulse Energy Stability (RMS) |
< 1% |
< 2% |
| Warm-up time (cold start) |
< 30 min |
| Warm-up time (warm start) |
< 3 min |
| Laser control interface |
CAN, USB |
| Operating voltage |
24V, 25A (100...240 V AC, 47...63 Hz to 24V AC/DC converter included) |
| Average power consumption (after warm-up) |
300 W |
| Maximal power rating |
700 W |
| Operating temperature |
18 – 32 °C |
| Humidity |
non condensing |
| Transportation/storage temperature |
-20 – +70 °C |
Dimensions:
Laser head (L x W x H)
Control unit (L x W x H)
AC/DC converter (L x W x H) |
498 x 248 x 194 mm
449 x 370 x 140 mm
250 x 125 x 60 mm |
| Umbilical length |
3 ± 0.1 m |
Colling:
Laser head
Control unit |
air (passive), optionally - water
forced air (fans) |
 |
 |

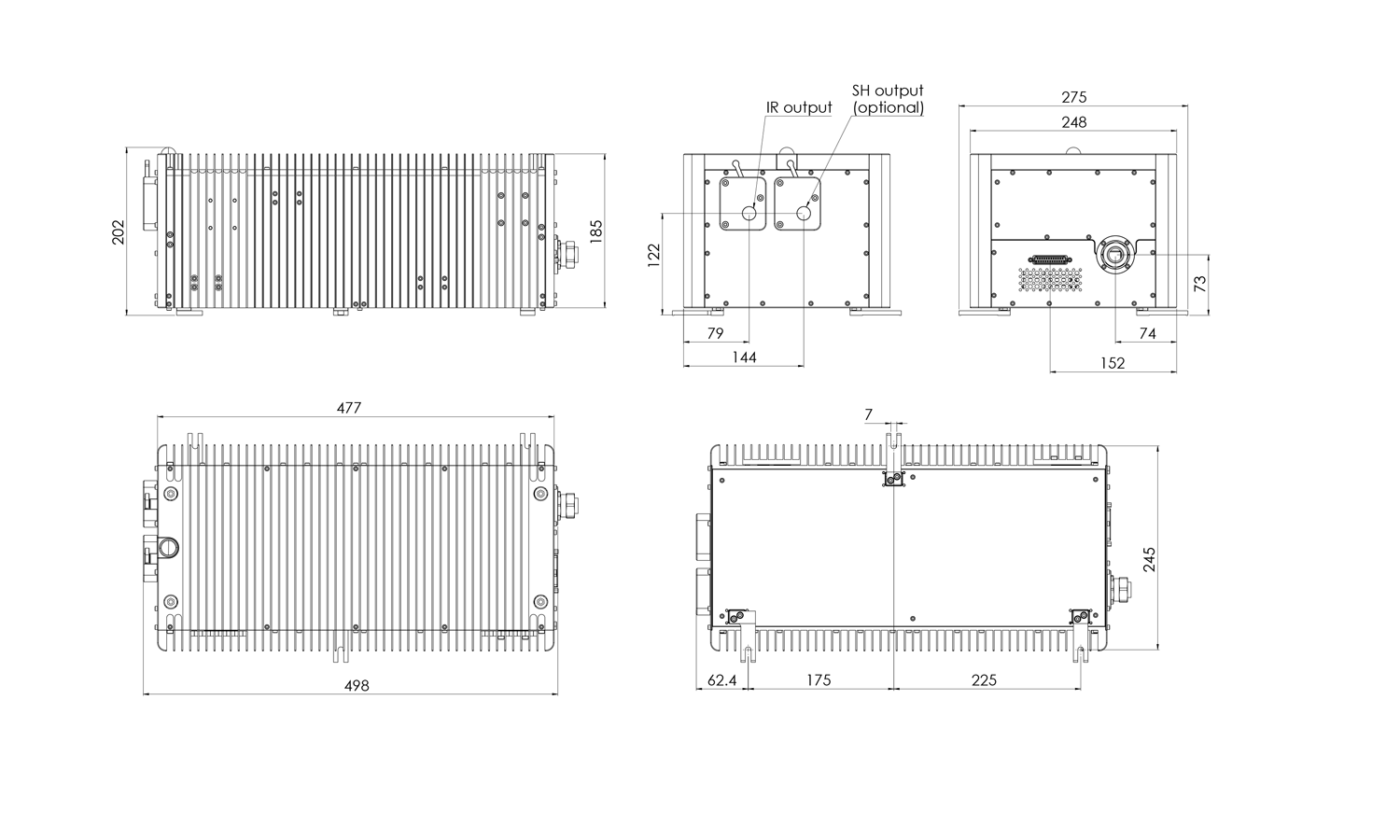

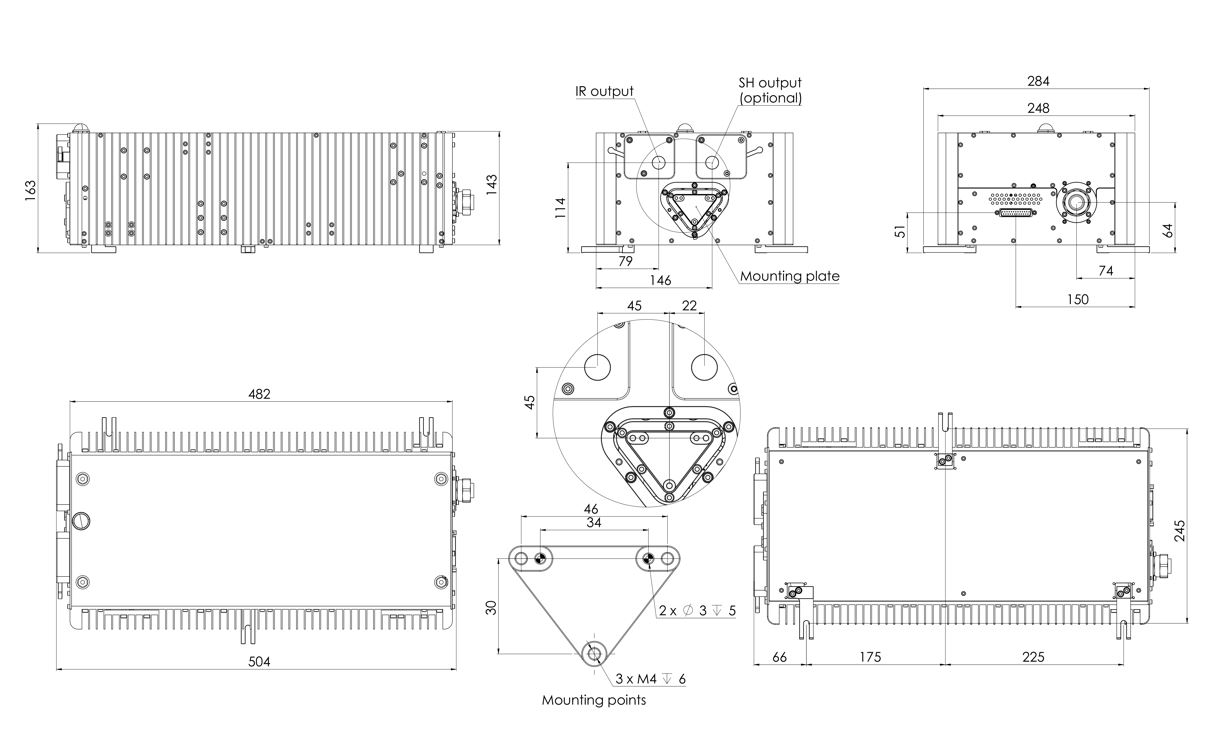

| Indylit 20 laser head dimensions (in mm) |

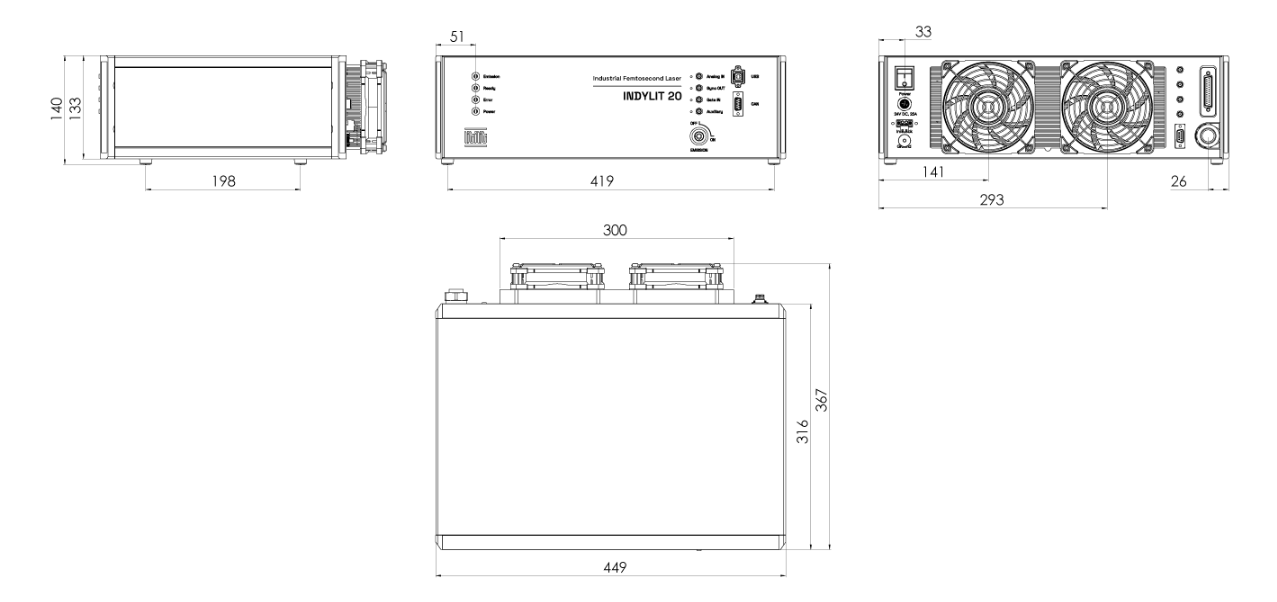

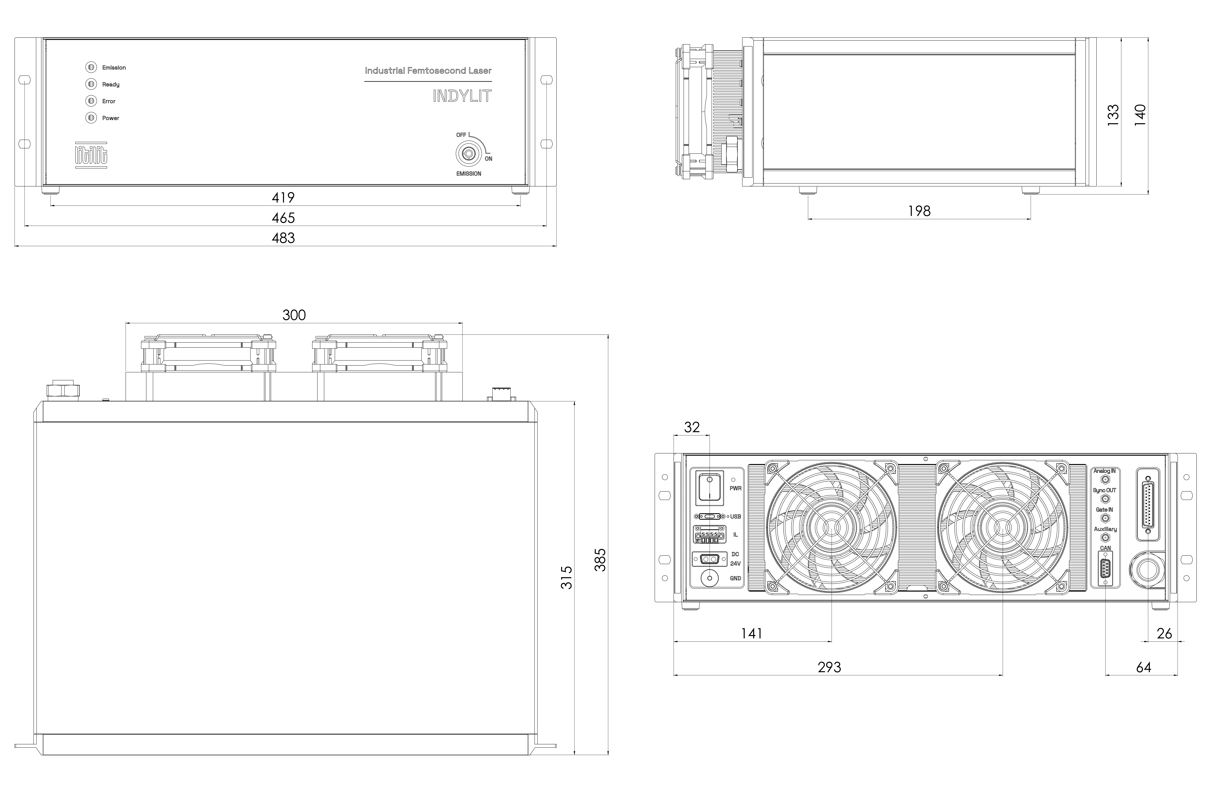

Indylit 20 laser control unit dimensions (in mm) |
