Copackaged ITL

產品型號：Copackaged ITL
產品說明：

價格(NTD)：$0

產品說明產品特色

Example specification for 50-100 GHz 2-in-1 copackaged interleaver.

Parameter	Unit	Specification
Wavelength range	nm	1527 ~ 1567
Interleaver Configuration	GHz	Mux or DeMux
Wavelength accuracy	pm	< ± 20 (Center wavelength at -3 dB )
Clear passband	GHz	> ± 15
Insertion loss	dB	2.0 (Without connectors)
Band width at -0.5 dB	GHz	> ± 18 (From center wavelength)
Band width at -3.0 dB	GHz	< ± 24 (From center wavelength)
Band width at -20 dB	GHz	< ± 37.5 (From center wavelength)
Ripple	dB	< 0.5
IL uniformity	dB	< 0.7
PDL	dB	< 0.5
Adjacent isolation	dB	> 25 (Over ITU ±10 GHz)
PMD	ps	< 0.5
Return loss	dB	> 40

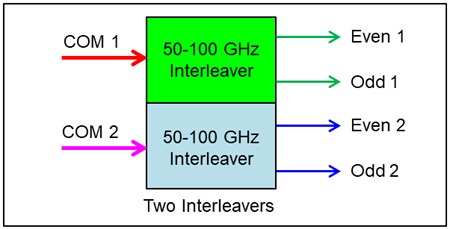

Figure 1: Schematic 2-in-1 optical Interleaver

Product Specifications

Key Features

● Based on UFP technology
● Scalable channel passband width
● High channel isolation
● Wide passband width
● Wider isolation region
● Low insertion loss

Key Applications

● Long haul and metro networks
● Network capacity expansion
● Mux/DeMux denser channels
● System upgrading and enhancement
● Spectrum shaping for 40/100 Gb/s signals
● Noise suppression and filtering
