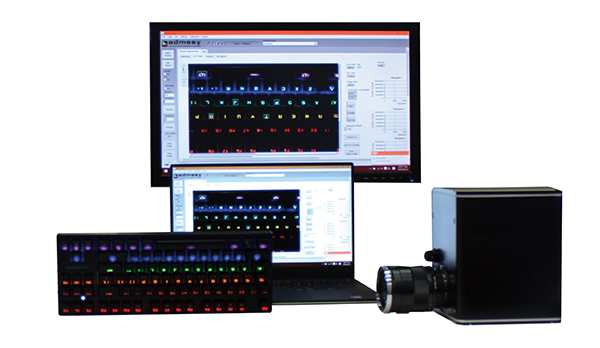

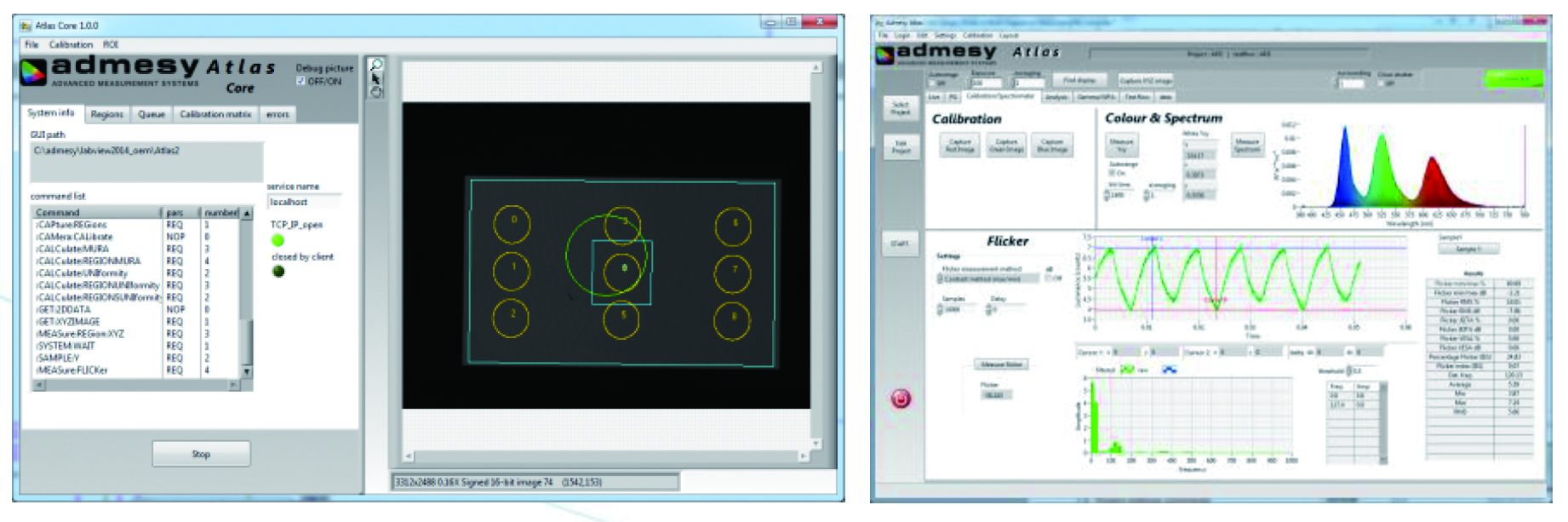

Admesy Atlas Imaging Colorimeter with Integrated Spectrometer

Admesy Atlas

產品型號：Admesy Atlas
產品說明：

價格(NTD)：$0

產品說明

Inspection items

Uniformity	By DFF uniformity algorithm
Line defects	By Admesy algorithm
Blob defects	By AdmesyMura algorithm
Dust	By DFF Mura algorithm
Pixel defects (1)	By DFF Mura algorithm and colour uniformity algorithm
Colour blobs	By colour uniformity algorithm
Light leakage (edge Mura)	By DFF uniformity algorithm

Specification

Interface
USB	USBMTC compliant, SCPI command set, high speed device
Ethernet	GIGE Ethernet interface (should support jumbo packets)
12V power	12V DC regulated
Power ratings	Min voltage	Typical voltage	Max voltage	Max current
12V power	11V	12V	13V	3000mA
General
Temperature	15°C to +35°C
Humidity	10% to 90% non-condensing
Weight	5.5kg
Optics	Manually adjustable focus and aperture
2D System accuracy	Y < 1%; x,y < 0.001 compared to spectrometer
2D System repeatibility ¹	Y < 0.1%; x,y < 0.0005
Measurement range ²	0.01 cd/m² – 25000 cd/m²
Spectrometer part
Model	VIS
Spectral range	380-780nm
Optical resolution (FWHM)	2.3nm
Order sorting filter	2nd order sorting filter
Wavelength accuracy	+/- 0.5nm
Stray light	< 0.2% (measured at 400nm with 455nm cut-off filter with broadband light source)
Luminance accuracy ³	+/- 2%
Chromaticity accuracy ³	+/- 0.0015
Non–Linearity	< 1%
Integration time	1.3ms – 20s
Data processing time	14ms
Wavelength accuracy	+/- 0.5nm
¹ Based on 1% of horizontal and vertical pixels of total detector size. ² This is indication can vary due to choice of lens system and aperture setting. ³ After calibration to the working standard.

Camera Specification

2MP camera
Resolution	1600 x 1200
Sensor	KAI-02050 TrueSense CCD
Output format	12bit
Non - Linearity	< 1%
S/N ratio	60dB
Integration time	1ms – 16s
Dynamic range	60dB
Minimum measurement time ¹	TBD
8MP camera
Resolution	3312 x 2488
Sensor	KAI-08050 TrueSense CCD
Output format	12bit
Non - Linearity	< 1%
S/N ratio	60dB
Integration time	1ms – 16s
Dynamic range	60dB
Minimum measurement time ¹	TBD
16MP camera
Resolution	4872 x 3248
Sensor	KAI-16000 TrueSense CCD
Output format	12bit
Non - Linearity	< 1%
S/N ratio	60dB
Integration time	1ms – 16s
Dynamic range	60dB
Minimum measurement time ¹	600ms
¹ Measured at 100 cd/m², please note that tact time can vary for different aperture settings and lens choices. This is an indication. Tact time is for colour and for photopic since we always transform RGB to XYZ by means of a spectrometer.
