產品名稱 : ISO-21550 Dynamic Range Film
產品說明 :

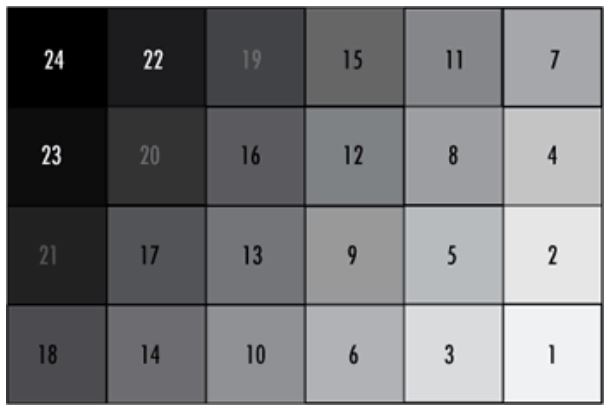

The dynamic range 35mm film can be used to determine the optical density range of a transmission scanner or other transmission imaging systems. It is a perforated 35mm filmstrip with gray scale patches.
● Used to Determine Optical Density Range of Transmission Scanners and Imaging Systems
產品規格
Technical Information
| Patch # | 0-4 Visual Weighted OD | Patch # | 0-4 Visual Weighted OD | |
| 1 | 0.107 | 13 | 2.922 | |
| 2 | 0.107 | 14 | 3.16 | |
| 3 | 0.125 | 15 | 3.262 | |
| 4 | 0.217 | 16 | 3.307 | |
| 5 | 0.426 | 17 | 3.422 | |
| 6 | 0.718 | 18 | 3.54 | |
| 7 | 1.05 | 19 | 3.641 | |
| 8 | 1.418 | 20 | 3.69 | |
| 9 | 1.869 | 21 | 3.759 | |
| 10 | 2.312 | 22 | 3.842 | |
| 11 | 2.496 | 23 | 3.9 | |
| 12 | 2.672 | 24 | 4.028 | |
 |
||||
| 產品型號 | 產品說明 | Pattern Size (mm) | 價格(NTD) | 產品數量 | |
|---|---|---|---|---|---|
| 0 | UNI58942 | ISO-21550 Dynamic Range Film | 28 x 18 | - |
