Model
Juno-RS
Thermal Sensor Compatibility
Yes
Photodiode Sensor Compatibility
Yes
Pyroelectric Sensor Compatibility
Yes
BeamTrack Sensor Compatibility
Yes
Statistics
Yes
Analog Out
Yes
Trigger Input/Output
No
Power Supply
12V Power Supply (Included)
On-Board Data Storage
No
Automation Interface
Yes
Labview VI's
No
CE Compliance
Yes
UKCA Compliance
Yes
China RoHS Compliance
Yes
PC Software & Drivers This section describes various ways to interface the Ophir meter to your PC as well as the software options available.
The StarLab application together with an Ophir meter turns your PC or laptop into a full-fledged laser power/energy meter. Supports most Ophir laser power/energy sensors. Up to 8 sensors can be displayed at once on one PC. By using the Ophir COM Object, you can control the device from your own application. Supports the Ariel, Centauri, StarBright, StarLite, Juno, Juno+, Nova II, Vega, Pulsar-1/2/4, Quasar, EA-1 and Ariel devices.
Library supplied for a complete measurement interface with most of our USB speaking devices (Centauri, StarBright, StarLite, Juno, Juno+, Nova-II, Pulsar, Vega). Makes use of our new COM object.
Embedded Software for Juno-RS Interface
Smart Sensor to Juno-RS to PC

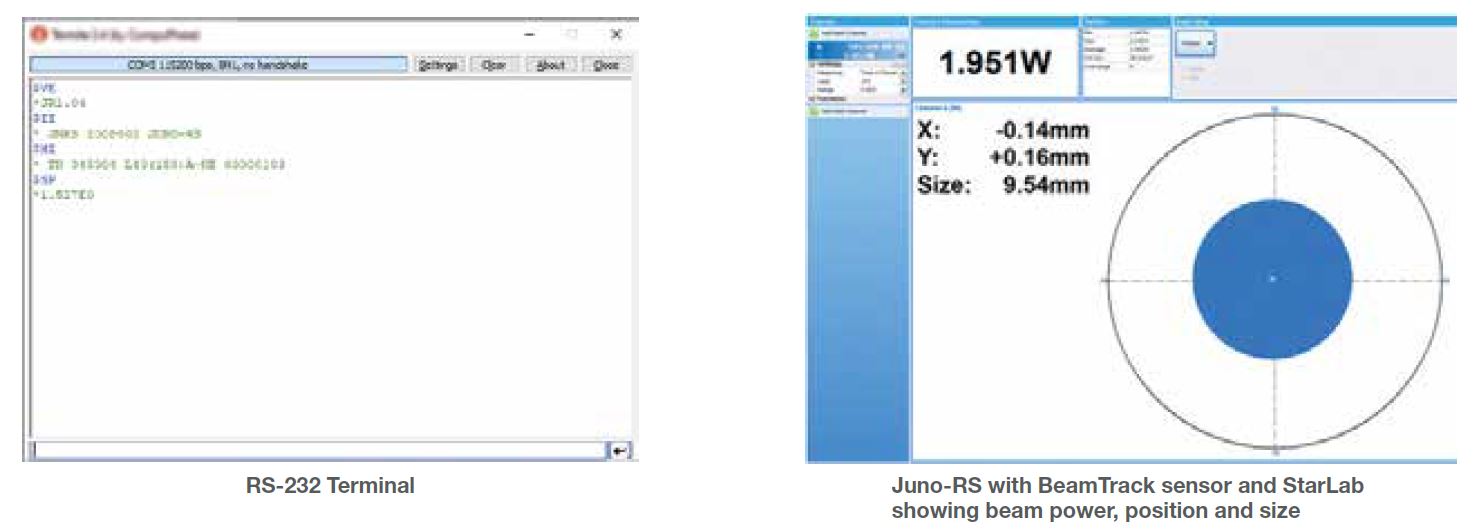

Ophir’s Juno-RS, virtual meter provides easy integration into automation systems (e.g. PLC) using RS-232 in their
The Juno-RS has an analog output which provides an output voltage proportional to the power/energy measured.
You can connect several Juno-RS modules to the PC at the same time.
Software - StarLab
StarLab turns your PC into a laser power/energy multi-channel station
Extensive Graphic Display of Data • Lֺֺine Plot, Histogram, Bar chart, Simulated Analog Needle • Mֺֺultiple data sets on one graph or separate graphs on the same screen
Advanced Measurement Processing • Pֺֺower/Energy Density, Scale Factor, Normalize against a reference • Mֺֺulti-channel comparisons • Uֺֺser defined mathematical equations: channels A/B, (A-B)/C etc. • Pֺֺosition & size measurement with BeamTrack sensors
Data Logging for Future Review • Cֺֺan be displayed graphically or saved in text format • Eֺֺasily exported to an Excel spreadsheet
Fully supports StarBright, StarLite, Vega, Nova-II, Pulsar, Juno and USBI devices with all standard Ophir sensors
Multiple Sensors displayed together
Functions and Logging
BeamTrack Power/Position/Size Screens
Software - LabVIEW Solutions Ophir has long recognized the growing LabVIEW community of developers. For over 10 years, we have been providing
These starter applications are basic software only that allows the LabVIEW programmer to experiment freely to fully feelAll of our LabVIEW libraries can be downloaded from our web site: www.ophiropt.com

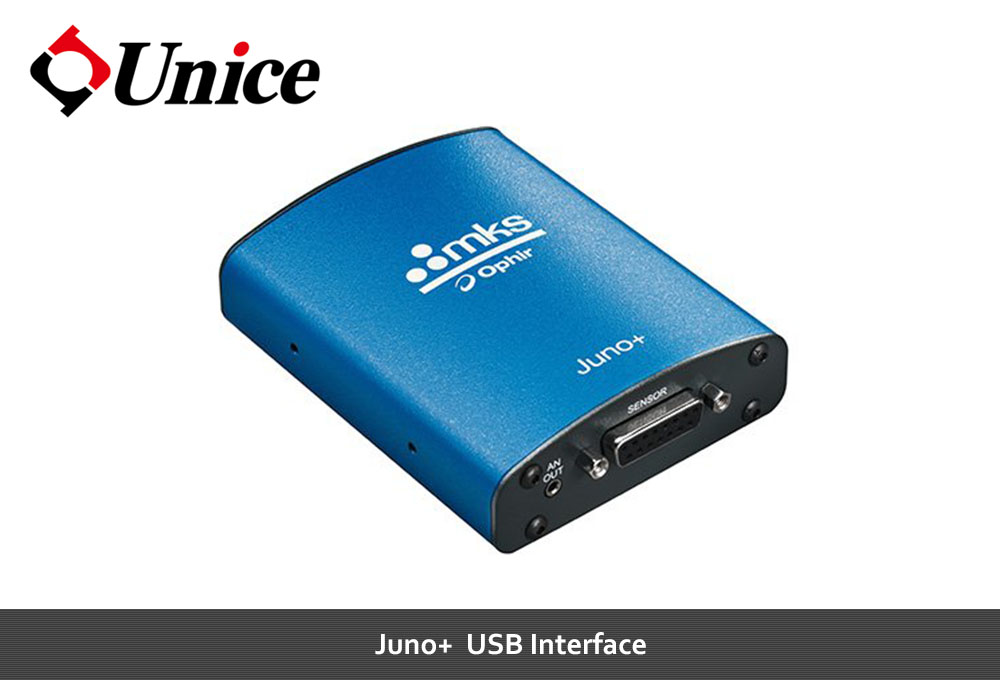

Juno+: A New Virtual Laser Power Meter On Your PC
Laser Measurement PC Interfaces
VIDEO
VIDEO
The new Ophir Juno+ enables you to connect your Ophir “Smart Sensor” to your PC via USB. Your PC then becomes a full-featured laser power meter, either running Ophir’s StarLab software application, or perhaps communicating with your own system via our “COM Object”. Get a glimpse of its capabilities in this overview video.
If all your laser measurement work involves a laptop or a PC, rather than a stand-alone meter, one of Ophir's direct-to-PC interfaces could be an ideal solution. These are full-fledged Laser Power and Energy meters, but instead of having a separate on-board display, the PC becomes your display. In this video you will learn about the range of PC Interfaces available from Ophir.
StarLab 3.0: Introduction and First Steps
StarLab 3.0: Second Steps
VIDEO
VIDEO
This video explains the various items on the StarLab screen, and shows you how to perform basic laser measurements. Part 1 of a series of video segments teaching you how to use StarLab.
Sometimes we want to not only get a reading, but perform additional processing on the reading. This video shows you how to use various functions in StarLab, such as Averaging, Scale Factor, Normalize, Density, etc. Part 2 of a series of video segments teaching you how to use StarLab.
Ophir Laser Measurement Virtual Meters
Juno-RS: The New RS232-based Virtual Meter
VIDEO
VIDEO
If all your laser measurement work involves a laptop or a PC, one of Ophir's direct-to-PC virtual meters could be an ideal solution. These are full-fledged Laser Power and Energy meters, and - together with the sensor and Ophir’s powerful StarLab software application - turn your PC into a full-function, multi-channel laser measurement workstation.
In this webinar, you will learn about the range of virtual meters and interface options available from Ophir.
If you need to connect your laser power or energy sensors to an automation system – or to a PC – using RS232 communication, the new Juno-RS Virtual Meter from Ophir may be just the solution for you.
