StarLite Entry Level Laser Power and Energy Meter with Monochrome Display

StarLite

產品型號：StarLite
產品說明：

StarLite Datasheet Power Meters Catalog

價格(NTD)：$0

產品說明 Software Video

Model	StarLite
Thermal Sensor Compatibility	Yes
Photodiode Sensor Compatibility	Yes
Pyroelectric Sensor Compatibility	Yes
BeamTrack Sensor Compatibility	Yes
Statistics	No
Analog Out	1V
USB	20 Hz
Trigger Input/Output	No
On-Board Data Storage	No
Automation Interface	Yes
Labview VI's	Yes
CE Compliance	Yes
UKCA Compliance	Yes
China RoHS Compliance	Yes

PC Software & Drivers

This section describes various ways to interface the Ophir meter to your PC as well as the software options available.

StarLab

The StarLab application together with an Ophir meter turns your PC or laptop into a full-fledged laser power/energy meter. Supports most Ophir laser power/energy sensors. Up to 8 sensors can be displayed at once on one PC. By using the Ophir COM Object, you can control the device from your own application. Supports the Ariel, Centauri, StarBright, StarLite, Juno, Juno+, Nova II, Vega, Pulsar-1/2/4, Quasar, EA-1 and Ariel devices.

LabVIEW

Library supplied for a complete measurement interface with most of our USB speaking devices (Centauri, StarBright, StarLite, Juno, Juno+, Nova-II, Pulsar, Vega). Makes use of our new COM object.

Firmware - StarLite

Embedded s/w for StarLite Laser Power / Energy Meter
Notes: Firmware update is performed by downloading the installer from Ophir website (see link above).
The firmware can't be updated via StarLab.

Selected Screens

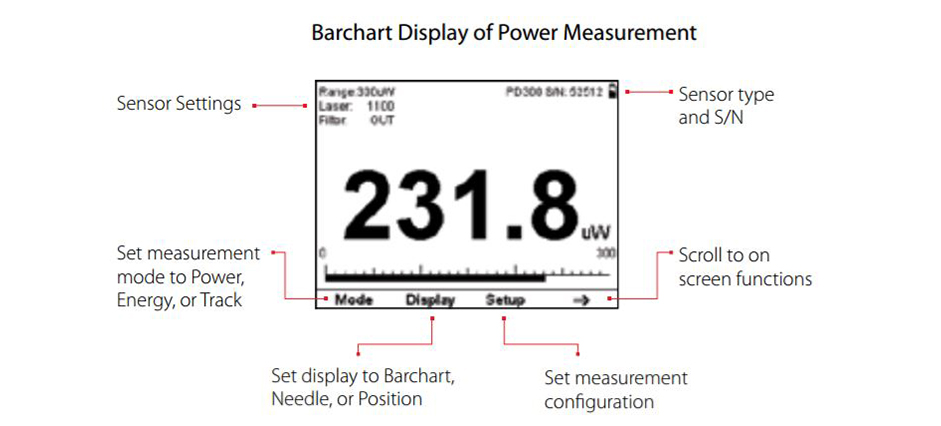

Digital Power Screen
• CW industrial, medical and scientific lasers • pW to Multi kW with appropriate sensors • Can average over selected period. Useful for unstable lasers. • Fast response bar chart

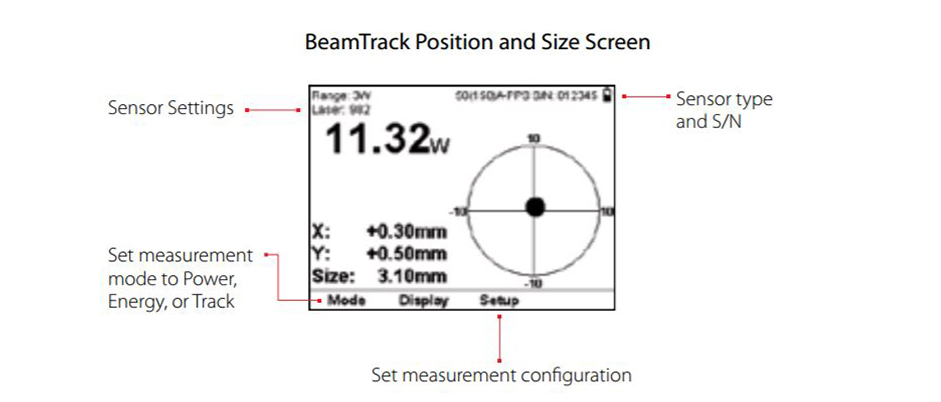

BeamTrack Power/Position/Size Screen
• Monitoring of laser beam size • Accurate tracking of beam position to fractions of a mm • Power measured at the same time

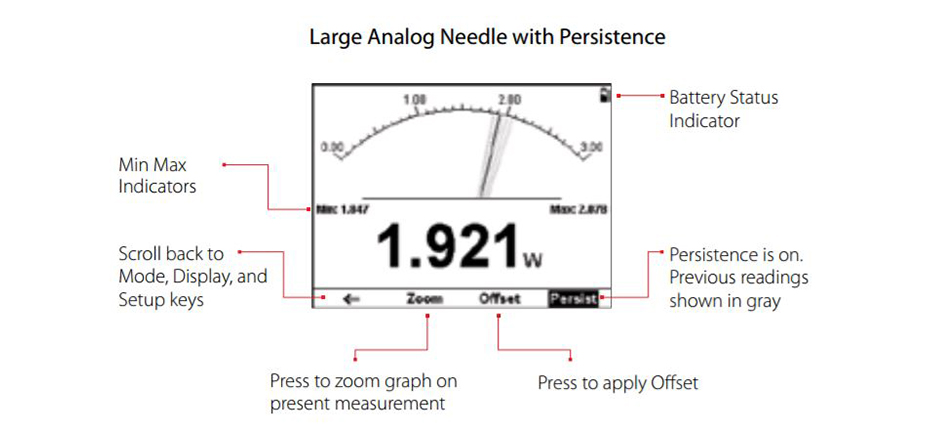

Analog Needle Screen
• Perfect for adjusting and maximizing laser power or energy • Persistent graphical display allows tracking of minimum maximum values measured • Large analog needle with small digital display as well

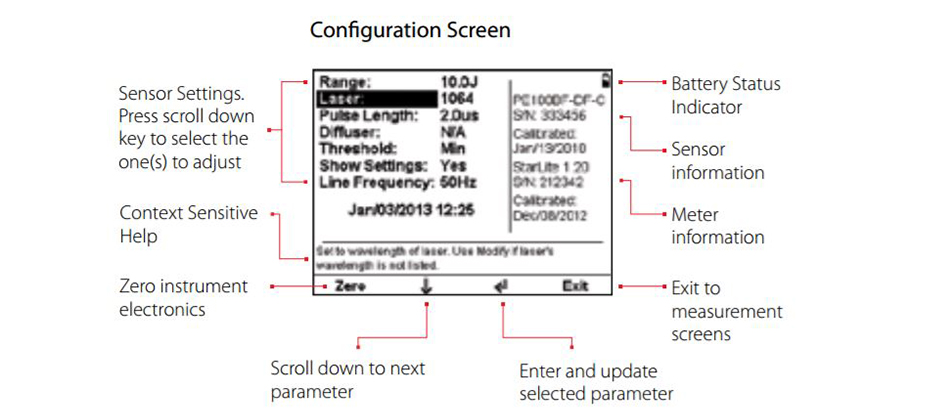

Configuration Screen
• Easy adjustment of all measurement configuration parameters • Context sensitive help for selected parameter • Sensor and meter information provided

Software - StarLab

StarLab turns your PC into a laser power/energy multi-channel station

Extensive Graphic Display of Data
• Lֺֺine Plot, Histogram, Bar chart, Simulated Analog Needle
• Mֺֺultiple data sets on one graph or separate graphs on the same screen

Advanced Measurement Processing
• Pֺֺower/Energy Density, Scale Factor, Normalize against a reference
• Mֺֺulti-channel comparisons
• Uֺֺser defined mathematical equations: channels A/B, (A-B)/C etc.
• Pֺֺosition & size measurement with BeamTrack sensors

Data Logging for Future Review
• Cֺֺan be displayed graphically or saved in text format
• Eֺֺasily exported to an Excel spreadsheet

Fully supports StarBright, StarLite, Vega, Nova-II, Pulsar, Juno and USBI devices with all standard Ophir sensors

Multiple Sensors displayed together

Functions and Logging

BeamTrack Power/Position/Size Screens

Software - LabVIEW Solutions

Ophir has long recognized the growing LabVIEW community of developers. For over 10 years, we have been providing
LabVIEW libraries for all of our devices. These are full open-source applications that can be used as is or tailored by the LabVIEW programmer to his specific needs.

These starter applications are basic software only that allows the LabVIEW programmer to experiment freely to fully feel
the strength of our devices’ respective command sets. These applications contain VIs (Virtual Instruments) to control the instrument. You can combine VIs to create successively larger and more versatile larger VIs by simply connecting them together. Users can create sophisticated, custom applications in minutes. In most cases, applications can be built and tested even before the instrument even arrives. The versatility of these tools is limitless.
All of our LabVIEW libraries can be downloaded from our web site: www.ophiropt.com

Overview of StarLite Power/Energy Meter		Firmware Upgrade of StarLite and StarBright

The new StarLite power/energy meter is an economical instrument that supports all our newest lines of standard sensors. This video shows you how easy it is to use.		Field upgrade of the firmware for the StarLite and StarBright meters is very simple. In this video, we’ll walk through the process, step by step.
Introduction to the StarLab Laser Measurement Application		Setting Your Laser Power Meter To a Custom Wavelength

This video gives an overview of the StarLab application and its various functions. Part 1 of a series of video segments teaching you how to use StarLab.		Learn how to set the correct wavelength for your measurement, even when the wavelength you need is not one of the default wavelengths offered by the meter.
