1440 to 1605nm Phosphor Coated CCD Cameras
1440 to 1605nm Phosphor Coated CCD Cameras
產品名稱 : 1440 to 1605nm Phosphor Coated CCD Cameras
產品說明 :
Features
• 1440-1605nm Wavelengths
• NIR Telecom mode field analysis
• NIR Laser beam analysis
Available Models

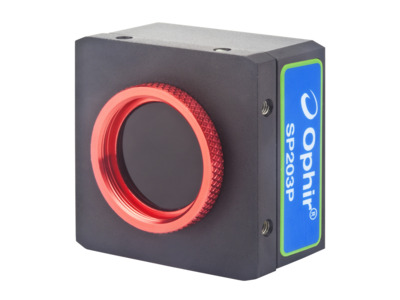

• USB models: SP203P

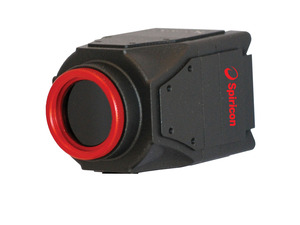

• Large Format: LT665-1550
產品規格
1440-1605nm
 |
 |
|
| Model | SP203P | LT665-1550 |
|---|---|---|
| Spectral Response | 1440 - 1605nm | 1440 - 1605nm |
| Application | SWIR wavelengths, 1/1.8” format | 12.5mm x 10mm, 1” format for large beams, CW & pulsed lasers, adjustable ROI |
| Beam sizes | 600μm - 5.3mm | 600μm - 9.9mm |
| Number of Elements | 2048 x 1536 | 2752 x 2192 |
| Communication | USB 3.0 | USB 3.0 |
| 產品型號 | 產品說明 | 價格(NTD) | 產品數量 | |
|---|---|---|---|---|
| 0 | BGS-USB3-LT665-1550 | Laser Beam Profiler 2752x2192 px, 27 fps, 1440-1605 nm, USB 3.0, BeamGage Standard | - | |
| 1 | BGP-USB3-LT665-1550 | Laser Beam Profiler, 2752x2192 px, 27 fps, 1440-1605 nm, USB 3.0, BeamGage Pro | - | |
| 2 | BGS-USB3-SP203P | Laser Beam Profiler, 2048x1536 px, 24 fps, 1440-1605 nm, USB 3.0, BeamGage Standard | - | |
| 3 | BGP-USB3-SP203P | Laser Beam Profiler, 2048x1536 px, 24 fps, 1440-1605 nm, USB 3.0, BeamGage Pro | - | |
| 4 | BM-USB3-SP203P | Laser Beam Profiler, 2048x1536 px, 24 fps, 1440-1605 nm, USB 3.0, BeamMic | - |
