F77439

F77439

產品型號：F77439
產品說明：

價格(NTD)：$0

產品規格

Model No	F77439

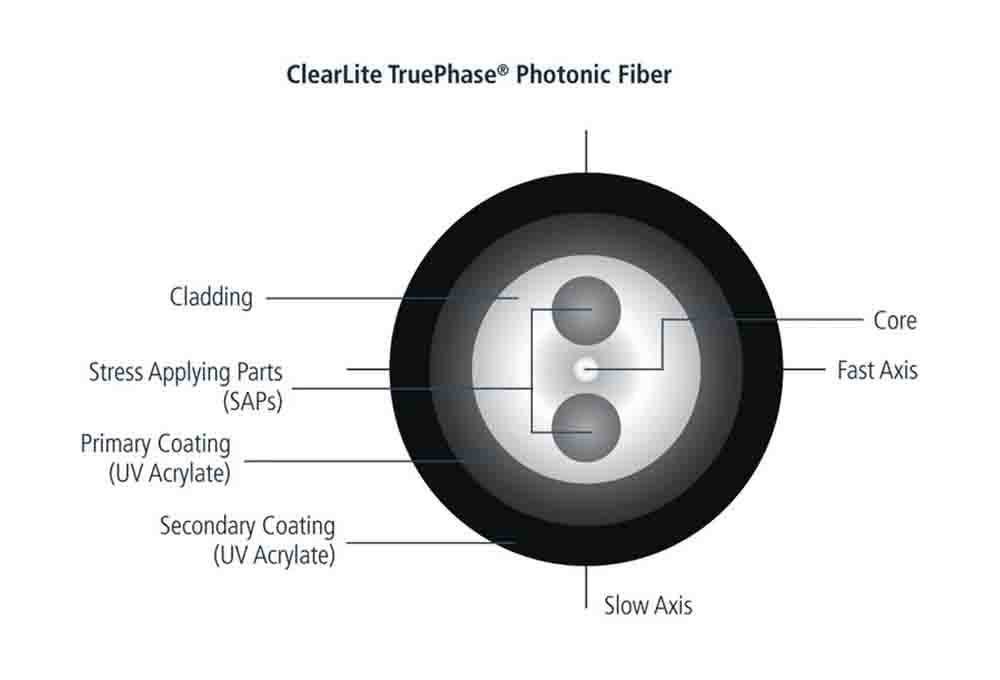

Fiber Type	Polarization-Maintaining
Operating Wavelength	1550 nm
Mode Field Diameter	@ 1550 nm, 9.4 ± 10.4 µm
Attenuation	@ 1550 nm, ≤ 0.8 dB/km
Beat Length	< 5 mm
Crosstalk Typical	< -35/100 dB
Attenuation @ 1550 nm (nominal)	< 0.8 dB/km
Mode Field Diameter @1550nm	9.4 - 10.4 µm
Macrobend Performance	< 0.1 dB
Cable Cut Off	≤ 1450 nm
Cladding Diameter	125 ± 1 µm
Coating/Buffer Diameter	250 ± 10 µm
Core/Clad Offset	≤ 0.5 µm
Core Non-Circularity	≤ 2%
Operating Temperature	-40 to +85℃
Proof Test Level	1.38 GPa
