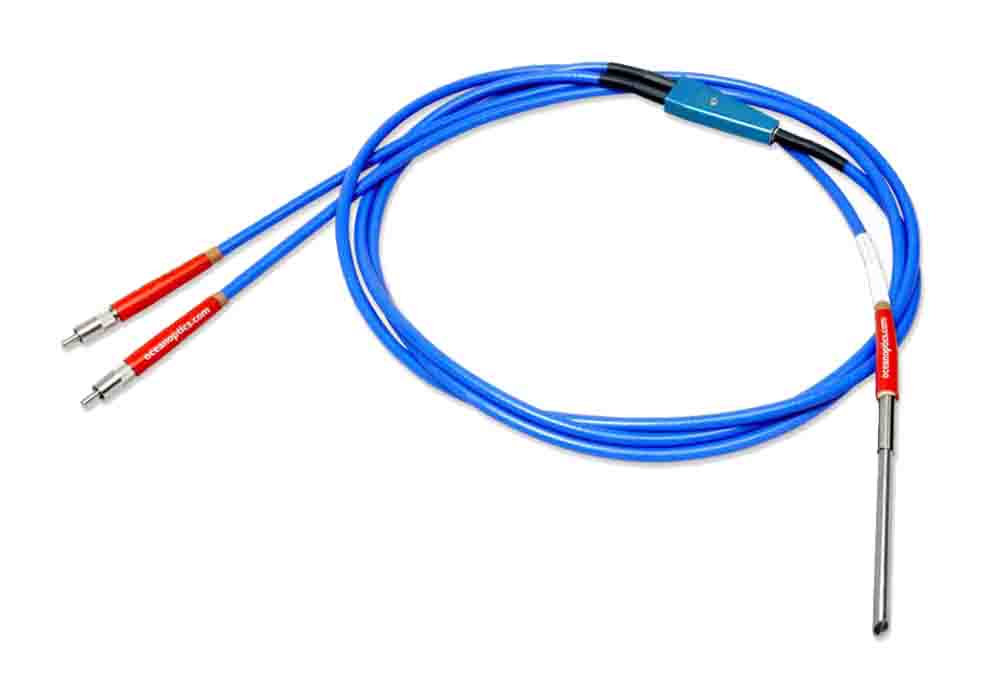

R400-ANGLE-VIS

產品型號：R400-ANGLE-VIS
產品說明：

價格(NTD)：$0

產品規格

Model No	R400-ANGLE-VIS
Wavelength Range (nm)	400 ~ 2100
Fiber Core Size (μm)	400
Fiber Type	VIS/NIR
Probe Ferrule Material	Stainless steel unless otherwise noted (PEEK also available)
Probe Ferrule Length (mm)	76.2
Probe Ferrule Diameter (mm)	6.35
Probe Fiber Bundle	6 Illumination fibers around 1 read fiber
Numerical Aperture	0.22 ± 0.02 (equivalent to an acceptance angle of 24.8° in air)
Connector	Standard hex-nut SMA905
Jacket	Zip tube blue PVDF
Length (m)	2
LTBR (cm)	16
STBR (cm)	8
Operating Temperature	-20 °C to 80 °C
