878.6nm - Output Power 65W to 120W
878.6nm - Output Power 65W to 120W
產品名稱 : 878.6nm - Output Power 65W to 120W
產品說明 :

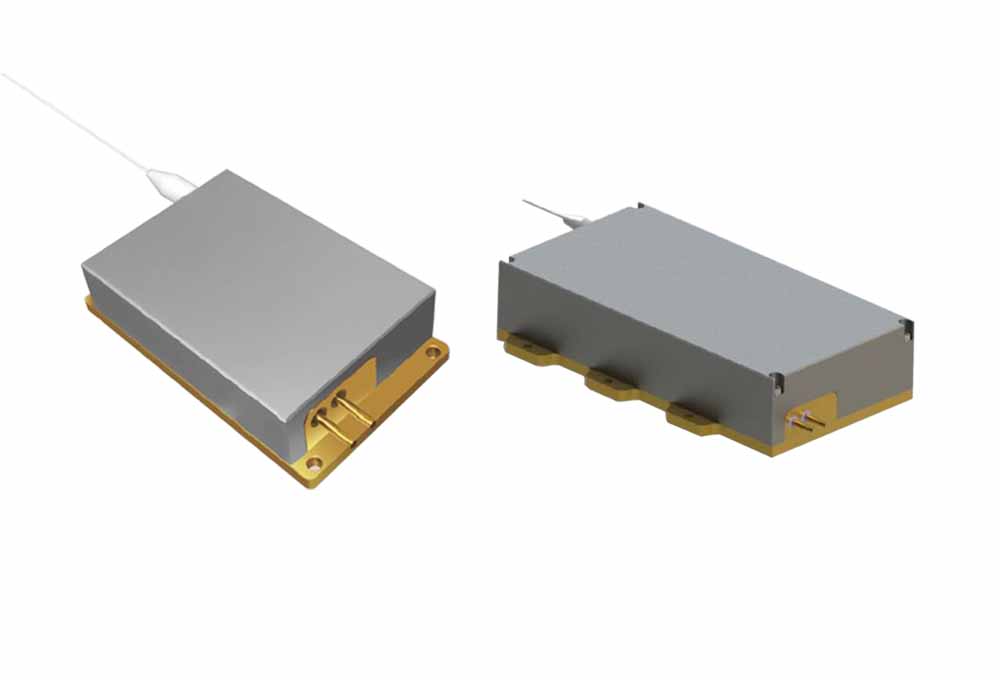

Mult-Single Emitter Diode Laser
Multiple single emitter diode lasers build upon the foundation of multi-emitter coupling technology, to obtain high power and high brightness diode laser. Varieties of packages with optional functions of aiming beam, photo detector, TEC, fiber detector, thermistor and other functions are available. Multi single emitter diode lasers have great advantages in high reliability and high performance. In multi-single emitter diode laser, BWT have patented many improved optical designs. And these compact packages and commercially recognized formats allow easy integration into the existing products.
Selection Guide
Mult-Single Emitter
| Model | Wavelength | Power | Optical Fiber Parameters |
|---|---|---|---|
| K878BN0RN-65.00W | 878.6nm | 65W | 200μm/0.22 |
| K878BN2RN-120.0W | 878.6nm | 120W | 200μm/0.22 |
| 產品型號 | 產品說明 | 價格(NTD) | 產品數量 | |
|---|---|---|---|---|
| 0 | K878BN0RN-65.00W | Multi-Single Emitter, 878.6nm, 65W High Power Wavelength-Stabilized Fiber Coupled Diode Laser | - | |
| 1 | K878BN2RN-120.0W | Multi-Single Emitter, 878.6nm, 120W High Power Wavelength-Stabilized Fiber Coupled Diode Laser | - |
