K808F02MN-15.00W Fiber-Bundled Module, 808nm, 15W High Power Fiber Bundled Diode Laser

K808F02MN-15.00W

產品型號：K808F02MN-15.00W
產品說明：

價格(NTD)：$0

產品說明

Specifications（25℃）		Symbol	Unit	Minimum	Typical	Maximum
Parameter (1)	CW Output Power	P_o	W	15	-	-
	Threshold Current	I_th	A	-	0.8	-
	Operating Current	I_op	A	-	3.0	-
	Operating Voltage	V_op	V	-	-	14
	Reverse Voltage	V_re	V	-	-	17.5
	Slope Efficiency	η	W/A	-	6.6	-
	Electrical-to-Optical Efficiency	PE	%	-	40	-

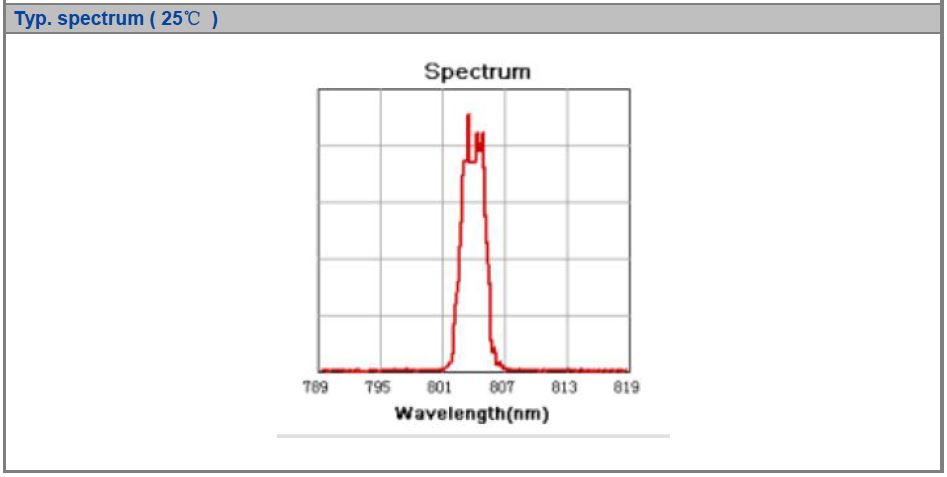

	Center wavelength	λc	nm	798	808	818
	Spectral width (FWHM)	△λ	nm	-	5	-
	Wavelength Shift with Temperature	-	nm/℃	-	0.3	-
	Core Diameter	D_core	μm	-	375	-
	Numerical Aperture	NA	-	-	0.22	-
	Fiber length	I_c	m	-	1.0	-
Others	ESD	V_esd	V	-	500	-
	Storage Temperature	T_st	℃	-20	-	70
	Lead Soldering Temp	T_ls	℃	-	-	260
	Lead Soldering Time	t	sec	-	-	10
	Operating Case temperature	T_op	℃	15	-	35
	Relative Humidity	RH	%	15	-	75
Operating Notes	● Avoid eye exposure to direct or scattered radiation. ● ESD precautions must be taken. ● Use constant current power supply. Avoid surge current. ● Laser diode must be used according to the specifications. ● Laser diode must work with good cooling. ● A minimum bend diameter should be 300 times greater than the fiber diameter. ● Operation temperature is 15℃~ 35℃. ● Storage: -20℃~ +70℃, all pins short-circuit.
Remark	(1) Data measured under operation output at 1@25℃。
