705 to 2000nm NIR Laser Diodes

705 to 2000nm NIR Laser Diodes

705 to 2000nm NIR Laser Diodes

產品名稱 : 705 to 2000nm NIR Laser Diodes
產品說明 :
● Fabry-Perot (FP), Distributed Feedback (DFB), Volume Holographic Grating (VHG) Stabilized, and Distributed Bragg Reflector (DBR) Laser Diodes
● Output Powers up to 3 W
● Center Wavelengths Available from 705 nm to 2000 nm

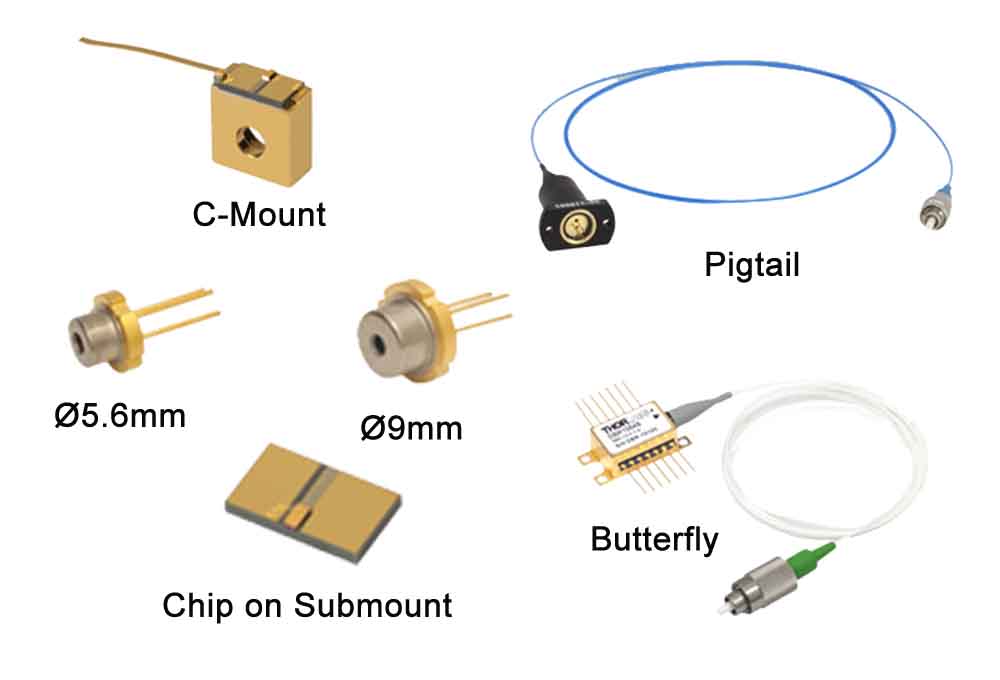

● Various Packages Available: TO Can, TO Pigtails, Butterfly, C-Mount, and Chip on Submount
● Easily Choose a Compatible Mount Using Our LD Pin Codes

產品規格
產品型號 產品說明 Wavelength Output Power Spatial Mode Package 價格(NTD) 產品數量
0 ULP705-SF15 NIR Laser Diode 705 nm 15 mW Single Mode Ø5.6 mm, SM Pigtail -
1 UHL7001MG NIR Laser Diode 705 nm 40 mW Single Mode Ø5.6 mm -
2 UHL7302MG NIR Laser Diode 730 nm 40 mW Single Mode Ø5.6 mm -
3 UL780P010 NIR Laser Diode 780 nm 10 mW Single Mode Ø5.6 mm -
4 ULP780-SAD15 NIR Laser Diode 780 nm 15 mW Single Frequency Ø9 mm, SM Pigtail -
5 UL785P5 NIR Laser Diode 785 nm 5 mW Single Mode Ø5.6 mm -
6 ULPS-PM785-FC NIR Laser Diode 785 nm 6.25 mW Single Mode Ø5.6 mm, PM Pigtail -
7 ULPS-785-FC NIR Laser Diode 785 nm 10 mW Single Mode Ø5.6 mm, SM Pigtail -
8 ULP785-SF20 NIR Laser Diode 785 nm 20 mW Single Mode Ø5.6 mm, SM Pigtail -
9 UDBR785S NIR Laser Diode 785 nm 22 mW Single Frequency SM, Butterfly -
10 UDBR785P NIR Laser Diode 785 nm 22 mW Single Frequency PM, Butterfly -
11 UL785P25 NIR Laser Diode 785 nm 25 mW Single Mode Ø5.6 mm -
12 UFPV785S NIR Laser Diode 785 nm 50 mW Single Frequency SM, Butterfly -
13 ULP785-SAV50 NIR Laser Diode 785 nm 50 mW Single Frequency Ø9 mm, SM Pigtail -
14 UL785P090 NIR Laser Diode 785 nm 90 mW Single Mode Ø5.6 mm -
15 ULP785-SF100 NIR Laser Diode 785 nm 100 mW Single Mode Ø9 mm, SM Pigtail -
16 UFPL785S-250 NIR Laser Diode 785 nm 250 mW (Min) Single Mode SM Butterfly -
17 ULD785-SEV300 NIR Laser Diode 785 nm 300 mW Single Frequency Ø9 mm -
18 ULD785-SH300 NIR Laser Diode 785 nm 300 mW Single Mode Ø9 mm -
19 UFPL785C NIR Laser Diode 785 nm 300 mW Single Mode 3 mm x 5 mm Submount -
20 UFPL785CM NIR Laser Diode 785 nm 300 mW Single Mode C-Mount -
21 ULD785-SE400 NIR Laser Diode 785 nm 400 mW Single Mode Ø9 mm -
22 UML620G40 NIR Laser Diode 805 nm 500 mW Multimode Ø5.6 mm -
23 UL808P010 NIR Laser Diode 808 nm 10 mW Single Mode Ø5.6 mm -
24 UL808P030 NIR Laser Diode 808 nm 30 mW Single Mode Ø5.6 mm -
25 UM9-808-0150 NIR Laser Diode 808 nm 150 mW Single Mode Ø9 mm -
26 UL808P200 NIR Laser Diode 808 nm 200 mW Multimode Ø5.6 mm -
27 ULD808-SEV500 NIR Laser Diode 808 nm 500 mW Single Frequency Ø9 mm -
28 UFPL808S NIR Laser Diode 808 nm 200 mW Single Mode SM Butterfly -
29 ULD808-SE500 NIR Laser Diode 808 nm 500 mW Single Mode Ø9 mm -
30 UL808P500MM NIR Laser Diode 808 nm 500 mW Multimode Ø5.6 mm -
31 UL808P1000MM NIR Laser Diode 808 nm 1000 mW Multimode Ø9 mm -
32 ULP820-SF80 NIR Laser Diode 820 nm 80 mW Single Mode Ø5.6 mm, SM Pigtail -
33 UL820P100 NIR Laser Diode 820 nm 100 mW Single Mode Ø5.6 mm -
34 UL820P200 NIR Laser Diode 820 nm 200 mW Single Mode Ø5.6 mm -
35 ULPS-830-FC NIR Laser Diode 830 nm 10 mW Single Mode Ø5.6 mm, SM Pigtail -
36 ULPS-PM830-FC NIR Laser Diode 830 nm 10 mW Single Mode Ø5.6 mm, PM Pigtail -
37 ULP830-SF30 NIR Laser Diode 830 nm 30 mW Single Mode Ø9 mm, SM Pigtail -
38 UHL8338MG NIR Laser Diode 830 nm 50 mW Single Mode Ø5.6 mm -
39 UFPL830S NIR Laser Diode 830 nm 350 mW Single Mode SM Butterfly -
40 ULD830-SE650 NIR Laser Diode 830 nm 650 mW Single Mode Ø9 mm -
41 ULD830-MA1W NIR Laser Diode 830 nm 1 W Multimode Ø9 mm -
42 ULD830-ME2W NIR Laser Diode 830 nm 2 W Multimode Ø9 mm -
43 UL840P200 NIR Laser Diode 840 nm 200 mW Single Mode Ø5.6 mm -
44 UL850P010 NIR Laser Diode 850 nm 10 mW Single Mode Ø5.6 mm -
45 UL850P030 NIR Laser Diode 850 nm 30 mW Single Mode Ø5.6 mm -
46 ULP850-SF80 NIR Laser Diode 850 nm 80 mW Single Mode Ø5.6 mm, SM Pigtail -
47 UL850P200 NIR Laser Diode 850 nm 200 mW Single Mode Ø5.6 mm -
48 UFPV852S NIR Laser Diode 852 nm 20 mW Single Frequency SM Butterfly -
49 ULP852-SF30 NIR Laser Diode 852 nm 30 mW Single Mode Ø9 mm, SM Pigtail -
50 UL852P50 NIR Laser Diode 852 nm 50 mW Single Mode Ø5.6 mm -
51 UL852P100 NIR Laser Diode 852 nm 100 mW Single Mode Ø9 mm -
52 UL852P150 NIR Laser Diode 852 nm 150 mW Single Mode Ø9 mm -
53 UFPL852S NIR Laser Diode 852 nm 350 mW Single Mode SM Butterfly -
54 ULD852-SE600 NIR Laser Diode 852 nm 600 mW Single Mode Ø9 mm -
55 ULD852-SEV600 NIR Laser Diode 852 nm 600 mW Single Frequency Ø9 mm -
56 ULP880-SF3 NIR Laser Diode 880 nm 3 mW Single Mode Ø5.6 mm, SM Pigtail -
57 UL880P010 NIR Laser Diode 880 nm 10 mW Single Mode Ø5.6 mm -
58 UL904P010 NIR Laser Diode 904 nm 10 mW Single Mode Ø5.6 mm -
59 ULP915-SF40 NIR Laser Diode 915 nm 40 mW Single Mode Ø9 mm, SM Pigtail -
60 UM9-915-0300 NIR Laser Diode 915 nm 300 mW Single Mode Ø9 mm -
61 ULP940-SF30 NIR Laser Diode 940 nm 30 mW Single Mode Ø9 mm, SM Pigtail -
62 UM9-940-0200 NIR Laser Diode 940 nm 200 mW Single Mode Ø9 mm -
63 UBL976-SAG300 NIR Laser Diode 976 nm 300 mW Single Mode SM, Butterfly -
64 UBL976-PAG500 NIR Laser Diode 976 nm 500 mW Single Mode PM, Butterfly -
65 UBL976-PAG700 NIR Laser Diode 976 nm 700 mW Single Mode PM, Butterfly -
66 UBL976-PAG900 NIR Laser Diode 976 nm 900 mW Single Mode PM, Butterfly -
67 UL980P010 NIR Laser Diode 980 nm 10 mW Single Mode Ø5.6 mm -
68 ULP980-SF15 NIR Laser Diode 980 nm 15 mW Single Mode Ø5.6 mm, SM Pigtail -
69 UL980P030 NIR Laser Diode 980 nm 30 mW Single Mode Ø5.6 mm -
70 UL980P100A NIR Laser Diode 980 nm 100 mW Multimode Ø5.6 mm -
71 UL980P200 NIR Laser Diode 980 nm 200 mW Multimode Ø5.6 mm -
72 UL1060P200J NIR Laser Diode 1060 nm 200 mW Single Mode Ø9 mm -
73 UDBR1064S NIR Laser Diode 1064 nm 20 mW Single Frequency SM, Butterfly -
74 UDBR1064P NIR Laser Diode 1064 nm 20 mW Single Frequency PM, Butterfly -
75 ULPS-1060-FC NIR Laser Diode 1064 nm 50 mW Single Mode Ø9 mm, SM Pigtail -
76 UM9-A64-0200 NIR Laser Diode 1064 nm 200 mW Single Mode Ø9 mm -
77 UM9-A64-0300 NIR Laser Diode 1064 nm 300 mW Single Mode Ø9 mm -
78 UBAL1112CM NIR Laser Diode 1208 nm 3000 mW Multimode C-Mount -
79 ULP1310-SAD2 NIR Laser Diode 1310 nm 2.0 mW Single Frequency Ø5.6 mm, SM Pigtail -
80 ULPS-1310-FC NIR Laser Diode 1310 nm 2.5 mW Single Mode Ø5.6 mm, SM Pigtail -
81 ULPS-PM1310-FC NIR Laser Diode 1310 nm 2.5 mW Single Mode Ø5.6 mm, PM Pigtail -
82 UL1310P5DFB NIR Laser Diode 1310 nm 5 mW Single Frequency Ø5.6 mm -
83 UML725B8F NIR Laser Diode 1310 nm 5 mW Single Mode Ø5.6 mm -
84 ULPSC-1310-FC NIR Laser Diode 1310 nm 50 mW Single Mode Ø5.6 mm, SM Pigtail -
85 UFPL1053S NIR Laser Diode 1310 nm 130 mW Single Mode SM Butterfly -
86 UFPL1053P NIR Laser Diode 1310 nm 130 mW Single Mode PM Butterfly -
87 UFPL1053T NIR Laser Diode 1310 nm 300 mW (Pulsed) Single Mode Ø5.6 mm -
88 UFPL1053C NIR Laser Diode 1310 nm 300 mW (Pulsed) Single Mode Chip on Submount -
89 UL1310G1 NIR Laser Diode 1310 nm 2000 mW Multimode Ø9 mm -
90 UL1370G1 NIR Laser Diode 1370 nm 2000 mW Multimode Ø9 mm -
91 UL1450G1 NIR Laser Diode 1450 nm 2000 mW Multimode Ø9 mm -
92 UL1480G1 NIR Laser Diode 1480 nm 2000 mW Multimode Ø9 mm -
93 ULPS-1550-FC NIR Laser Diode 1550 nm 1.5 mW Single Mode Ø5.6 mm, SM Pigtail -
94 ULPS-PM1550-FC NIR Laser Diode 1550 nm 1.5 mW Single Mode Ø5.6 mm, SM Pigtail -
95 ULP1550-SAD2 NIR Laser Diode 1550 nm 2.0 mW Single Frequency Ø5.6 mm, SM Pigtail -
96 UL1550P5DFB NIR Laser Diode 1550 nm 5 mW Single Frequency Ø5.6 mm -
97 UML925B45F NIR Laser Diode 1550 nm 5 mW Single Mode Ø5.6 mm -
98 USFL1550S NIR Laser Diode 1550 nm 40 mW Single Frequency SM Butterfly -
99 USFL1550P NIR Laser Diode 1550 nm 40 mW Single Frequency PM Butterfly -
100 ULPSC-1550-FC NIR Laser Diode 1550 nm 50 mW Single Mode Ø5.6 mm, SM Pigtail -
101 UFPL1009S NIR Laser Diode 1550 nm 100 mW Single Mode SM Butterfly -
102 UFPL1009P NIR Laser Diode 1550 nm 100 mW Single Mode PM Butterfly -
103 UFPL1001C NIR Laser Diode 1550 nm 150 mW Single Mode Chip on Submount -
104 UFPL1055T NIR Laser Diode 1550 nm 300 mW (Pulsed) Single Mode Ø5.6 mm -
105 UFPL1055C NIR Laser Diode 1550 nm 300 mW (Pulsed) Single Mode Chip on Submount -
106 UL1550G1 NIR Laser Diode 1550 nm 1700 mW Multimode Ø9 mm -
107 UL1575G1 NIR Laser Diode 1575 nm 1700 mW Multimode Ø9 mm -
108 ULPSC-1625-FC NIR Laser Diode 1625 nm 50 mW Single Mode Ø5.6 mm, SM Pigtail -
109 UFPL1054S NIR Laser Diode 1625 nm 80 mW Single Mode SM Butterfly -
110 UFPL1054P NIR Laser Diode 1625 nm 80 mW Single Mode PM Butterfly -
111 UFPL1054C NIR Laser Diode 1625 nm 250 mW (Pulsed) Single Mode Chip on Submount -
112 UFPL1054T NIR Laser Diode 1625 nm 250 mW (Pulsed) Single Mode Ø5.6 mm -
113 UFPL1059S NIR Laser Diode 1650 nm 80 mW Single Mode SM Butterfly -
114 UFPL1059P NIR Laser Diode 1650 nm 80 mW Single Mode PM Butterfly -
115 UFPL1059C NIR Laser Diode 1650 nm 225 mW (Pulsed) Single Mode Chip on Submount -
116 UFPL1059T NIR Laser Diode 1650 nm 225 mW (Pulsed) Single Mode Ø5.6 mm -
117 UFPL1940S NIR Laser Diode 1940 nm 15 mW Single Mode SM Butterfly -
118 UFPL2000S NIR Laser Diode 2 µm 15 mW Single Mode SM Butterfly -
119 UFPL2000C NIR Laser Diode 2 µm 30 mW Single Mode Chip on Submount -
120 UFPL2000CM NIR Laser Diode 2 µm 30 mW Single Mode C-Mount -
