0450L-11A-NI-NT-NF

產品型號：0450L-11A-NI-NT-NF
產品說明：

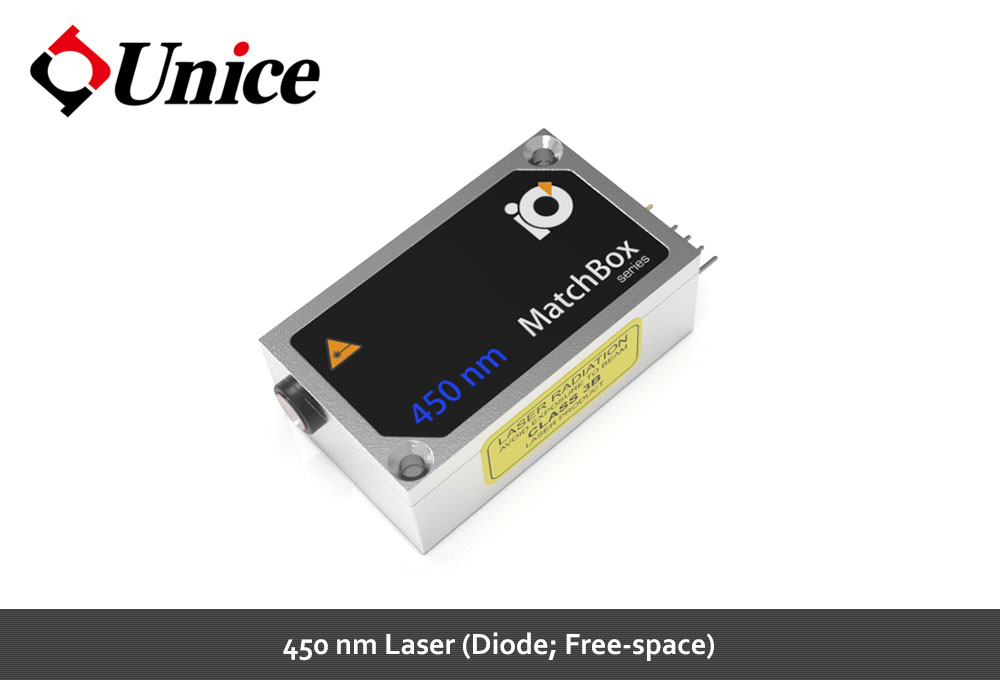

450 nm laser diode module is an excellent choice for flow cytometry, fluorescence, and biomedical applications. Small footprint, stable power, low power consumption are only a few advantages of this laser.

價格(NTD)：$0

產品說明

Model	0450L-11A-NI-NT-NF
Parameter	Minimum Value	Typical Value	Maximum Value
Central Wavelength, nm	442	450	458
Longitudinal modes	-	Multiple	-
Spectral line width FWHM, nm	-	0.8	1
Output power, mW	-	60 ^*1	-
Power stability, % (RMS, 8 hrs)	-	0.2 ^*2	1
Power stability, % (peak-to-peak, 8 hrs)	-	2 ^*3	3
Noise, % (RMS, 20 Hz to 20 MHz)	-	0.25 ^*4	0.6
Transversal modes	-	TEM00	-
Beam Diameter at Aperture (1/e2), mm	-	1	-
Beam divergence (full angle), mrad	-	1.1	-
M2 horizontal axis	-	1.1	1.4
M2 vertical axis	-	1.2	1.5
M2 effective	-	1.3	-
Polarization direction	-	Horizontal ^*5	-
Polarization contrast	1000	2000	5000
Control interface type	-	UART ^*6	-
Operation mode	-	APC (CW)	-
Modulation bandwidth, MHz	-	10 ^*7	-
Input voltage, VDC	4.8	5	5.3
External power supply requirement	-	+5 V DC, 1.5A	-
Dimensions, mm	-	50 x 30 x 18 ^*8	-
Beam height from the base, mm	9.9	10.4	10.9
Heat-sinking requirement, °C/W	-	1	-
Optimum heatsink temperature, °C	15	20	30
Warm up time, mins (cold start)	-	0.5	1
Temperature stabilization	-	Internal TEC	-
External fan control	-	No ^*9	-
Overheat protection	-	Yes	-
Storage temperature, °C (non-condensing)	-10	-	50
Net weight, kg	0.1	0.12	0.14
Max. power consumption, W	0.4	2	10
Warranty, months (op. hrs)	-	14 (10000) ^*10	-
RoHS	-	Yes	-
CE compliance	-	- General Product Safety Directive (GPSD) 2001/95/EC - (EMC) Directive 2004/108/EC	-
Laser Safety Class	-	3B	-
OEM lasers are not compliant with	-	IEC60825-1:2014 (compliant using additional accessories)	-
Country of origin	-	Lithuania	-
*1 The optical power can be tuned from virtually 0% to 100%. However, other specifications, such as central wavelength, power stability, noise, polarization ratio, beam shape, quality and circularity are not guaranteed at power levels other than factory preset power. Significantly worse power stability is to be expected at very low power levels, e.g. <3% from specified nominal power.
*2 The long term power test is carried out at constant laser body temperature (+/-0.1 ‎°C) using an optical power meter with an input bandwidth of 10 Hz. The actual measurement rate has a period of about 20 seconds to 1 minute.
*3 The long term power test is carried out at constant laser body temperature (+/-0.1 ‎°C) using an optical power meter with an input bandwidth of 10 Hz. The actual measurement rate has a period of about 20 seconds to 1 minute.
*4 Noise level is measured with a fast photodiode connected to an oscilloscope. The overall system bandwidth is from 2 kHz to 20 MHz.
*5 For lasers without integrated optical isolators.
*6 Break-out-boxes AM-C8 and AM-C3 can be used for conversion of UART communication to either USB or RS232.
*7 TTL digital modulation up to 10 MHz.
*8 Excluding control interface pins and an output window/fiber assembly.
*9 This function can be enabled in hardware only if the fast modulation option is disabled. The customer must specify this before ordering the laser.
*10 Whichever occurs first. The laser has an integrated operational hours counter.
Note: Product specifications are subject to change without prior notice to improve reliability, function or design or otherwise.
Typical Spectrum

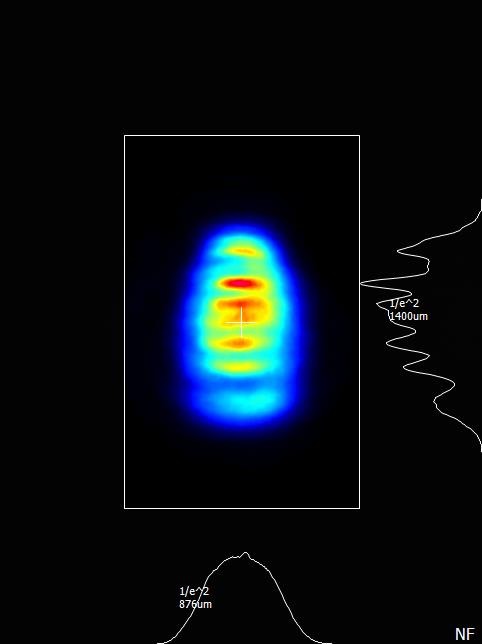

Typical Near Field

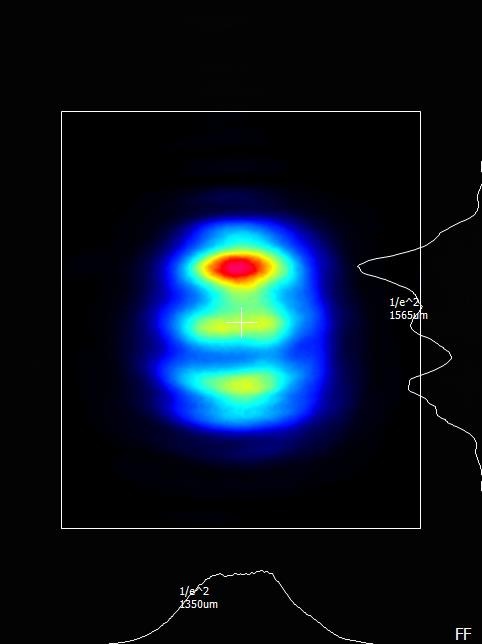

Typical Far Field
Drawing
