QCW Fiber Lasers
QCW Fiber Lasers
產品名稱 : QCW Fiber Lasers
產品說明 :
● All-fiber Structure: Compact and rugged design for long time operation
● Adjustable Pulse Width Waveform: The output waveform can be customized according to different welding or cutting applications
● Compact Design, Maintenance Free: Plug and play, higher flexibility when integrated into system
● High Level Vertical Integration: All key components are designed and produced in house and Strict quality control, high consistency and reliability
產品規格
Selection Guide

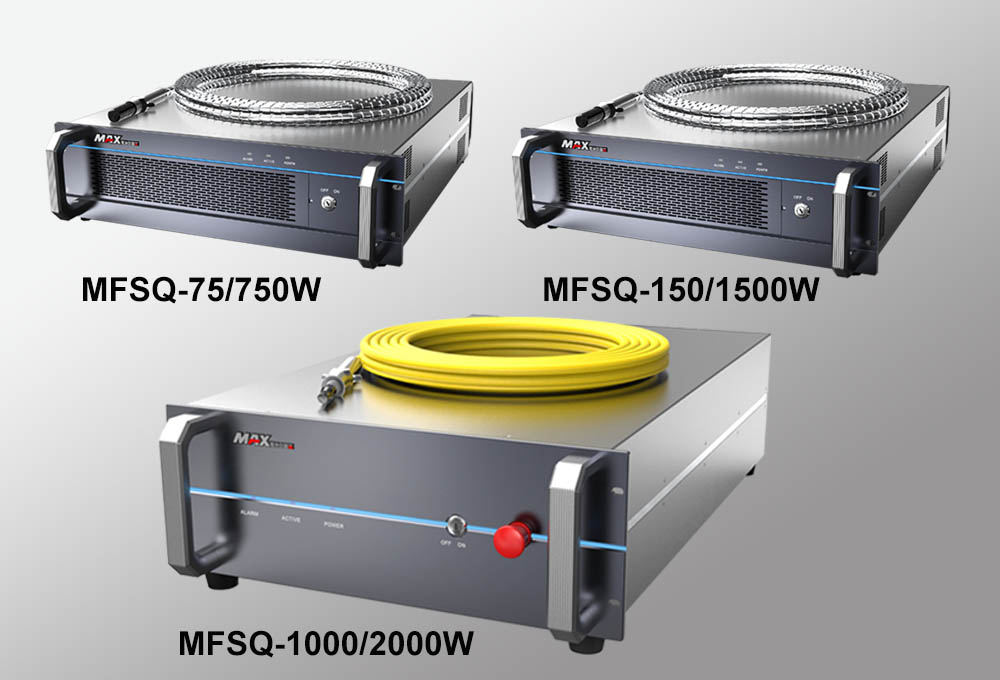

| Models | MFSQ-75-750W | MFSQ-150-1000W | MFSQ-150-1500W | MFSQ-1000-2000W |
|---|---|---|---|---|
| CW Mode Max Power | 75W | 150W | 250W | 1000W |
| Pulsed Mode Max Power | 750W | 1000W | 1500W | 2000W |
| Mode of Operation | CW/Modulated | CW/Modulated | CW/Modulated | CW/Modulated |
| Polarization | Random | Random | Random | Random |
| 產品型號 | 產品說明 | 價格(NTD) | 產品數量 | |
|---|---|---|---|---|
| 0 | MFSQ-75-750W | Max Power: 75W CW Mode, 750W Pulsed Mode QCW Fiber Laser | - | |
| 1 | MFSQ-150-1000W | Max Power: 150W CW Mode, 1000W Pulsed Mode QCW Fiber Laser | - | |
| 2 | MFSQ-150-1500W | Max Power: 250W CW Mode, 1500W Pulsed Mode QCW Fiber Laser | - | |
| 3 | MFSQ-1000-2000W | Max Power: 1000W CW Mode, 2000W Pulsed Mode QCW Fiber Laser | - |
