DL-940-80
DL-940-80
產品型號：DL-940-80
產品說明：
產品說明：
-

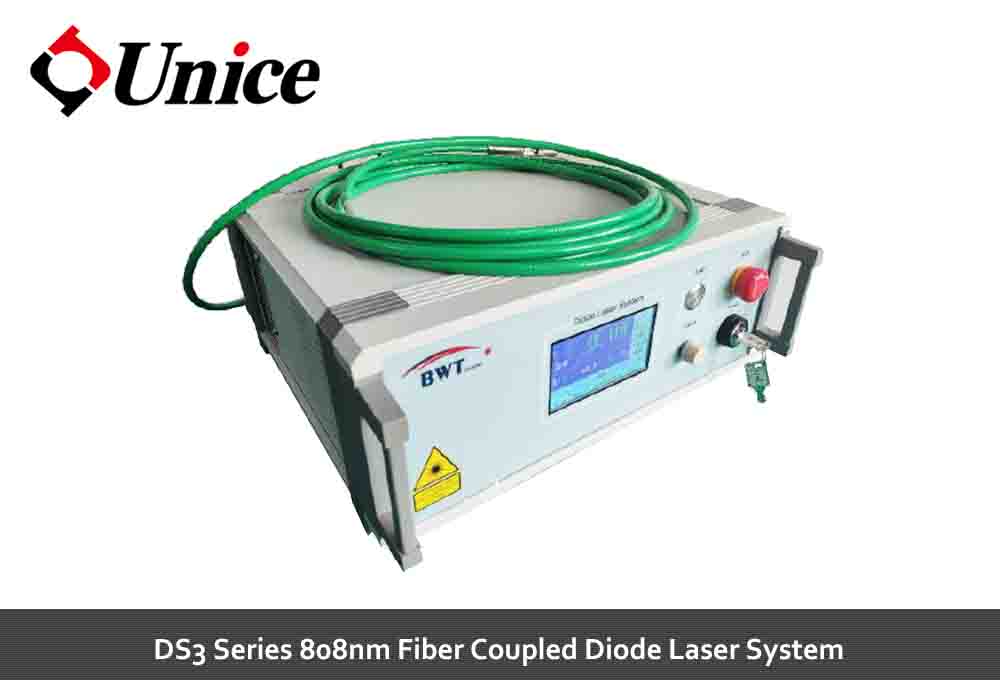

DL-series is a family of fiber-coupled diode lasers. Each laser consists of a fiber-coupled diode module, current source (laser diode driver), cooling system (Peltier modules, temperature controller, heatsink and fans), user interface and coverage case.
We use only high quality fiber-coupled diode modules from the world-best manufacturers. Standard models are built up on nLight's modules. Modules by other manufacturers like Dilas, LIMO, JenOptics can be used instead on customer's request.
Laser's input is 110/230VAC mains, laser's output is a fiber, which distal end can be equipped with beam shaping optics of customer's choice. Interfaces are 7'' touch panel GUI and RS-485 machine interface.
Features
● CW and pulsed operations (500Hz max)
● Compact design
● Water free (easy maintenance)
● 7'' colour display with touch panel
● Full control via RS-485 interface
Applications
● Longitudinal pumping of DPSS lasers
● Direct material processing
