Diode Pumped Solid State Lasers - 473~1064nm

 Diode Pumped Solid State Laser - 473~1064nm

產品名稱 : Diode Pumped Solid State Laser - 473~1064nm
產品說明 :
MxL-S series DPSS lasers with features of good sealing, high output power stability, good beam profile, ultra compact, wide operating temperature, long lifetime, easy operating, working under the pressure of 0.02 kPa, which are widely used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, laser printing, chip inspection, collimation, laser medical treatment, scientific experiment and other applications.

產品規格

Selection Guide

Model Wavelength (nm) Output power (mW) Transverse mode Beam quality
MBL-S-473 473 1~100 TEM00 M2 <1.2
MGL-S-532 532 1~300 TEM00 M2 <1.2
MGL-S-543 543 1~100 TEM00 M2 <1.2
MGL-S-588 588 1~50 TEM00 M2 <1.2
MGL-S-589 589 1~50 TEM00 M2 <1.2
MRL-S-671 671 1~200 TEM00 M2 <1.2
MIL-S-1064 1064 1~1500 TEM00 M2 <1.2

Features of MxL-S series lasers:

Unice Diode Pumped Solid State Laser

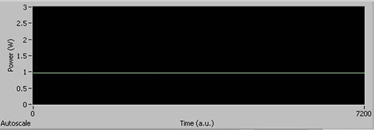

Long term output power stability

Unice Diode Pumped Solid State Laser
Single frequency laser



Unice Diode Pumped Solid State Laser

Linewidth measurement



Unice Diode Pumped Solid State Laser

Mmeasurement <1.2



Unice Diode Pumped Solid State Laser

Beam profile (TEM00)

產品型號 產品說明 價格(NTD) 產品數量
0 MBL-S-473 473nm LD Pumped All-Solid-Sate Blue Laser (Output power &amp; power stability must be specified when you submit inquiry.) -
1 MGL-S-532 532nm LD Pumped All-Solid-Sate Green Laser (Output power &amp; power stability must be specified when you submit inquiry.) -
2 MGL-S-543 543nm LD Pumped All-Solid-Sate Green Laser (Output power &amp; power stability must be specified when you submit inquiry.) -
3 MGL-S-588 588nm LD Pumped All-Solid-Sate Green Laser (Output power &amp; power stability must be specified when you submit inquiry.) -
4 MGL-S-589 589nm LD Pumped All-Solid-Sate Green Laser (Output power &amp; power stability must be specified when you submit inquiry.) -
5 MRL-S-671 671nm LD Pumped All-Solid-Sate Red Laser (Output power &amp; power stability must be specified when you submit inquiry.) -
6 MIL-S-1064 1064nm LD Pumped All-Solid-Sate Infrared Laser (Output power &amp; power stability must be specified when you submit inquiry.) -
