產品型號：CM112
產品說明：
產品說明：
-

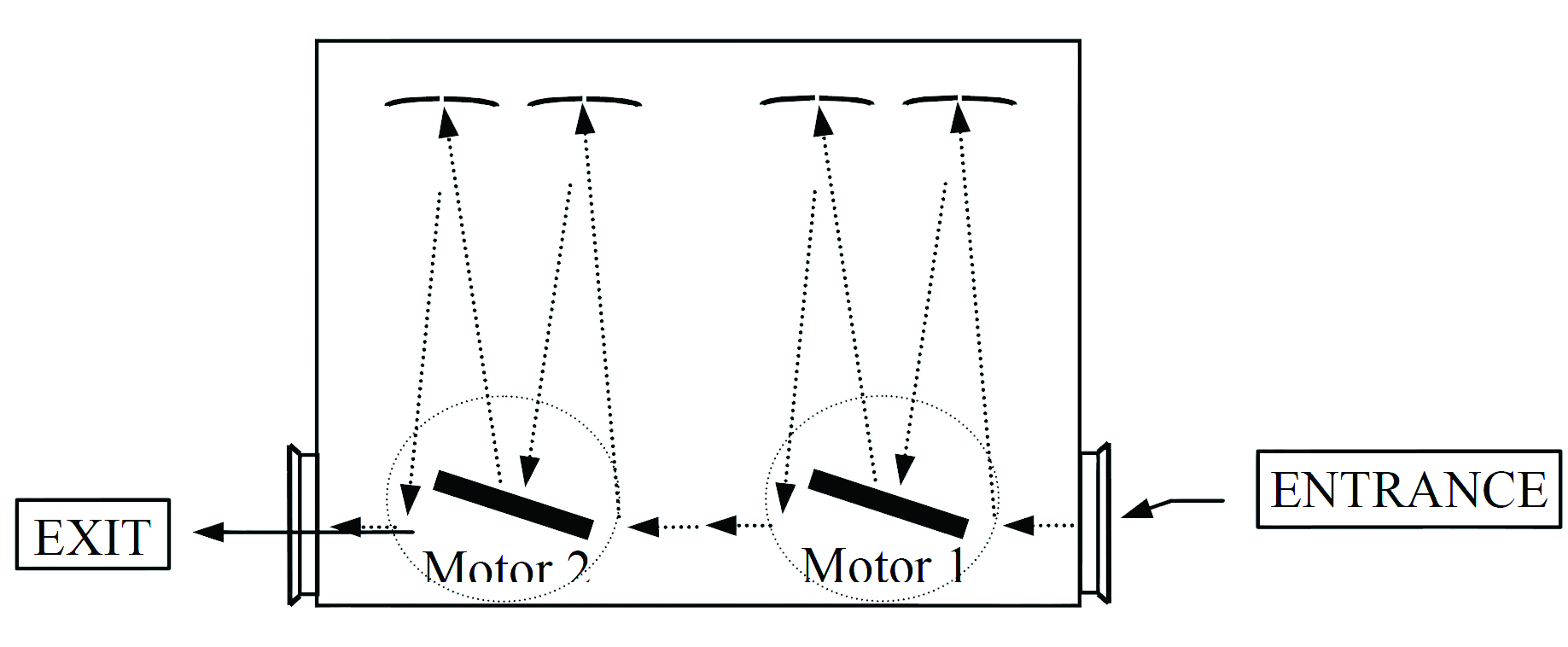

The CM112 is two single monochromators in series.The result is twice the resolution of a single 1/8 meter monochromator.
The CM112 offers a solution to practical problems in monochromatic imaging. In the CM112, the second subtractive monochromator recombines these multiple images, creating a clear image.
Finally, the CM112 is a unique solution to practical problems in the spectroscopy of pulsed sources.In the subtractive dispersion CM112, the second monochromator equalizes the optical path lengths so that broadening is reduced to a minimum.
● Compact size - Only 5-1/4"x6-1/4"x3-1/4"
● Connects to any computer via RS232.
● Scans in both directions. Programmable in angstroms, nanometers, microns, wavenumbers, or eV.
● Dual double-grating turrets with automatic grating change allows for broad spectral range coverage.
● Subtractive dispersion mode minimizes image distortion and pulse spread, with sub-picosecond residual broadening versus nanosecond pulse broadening of regular monochromators.
● Additive mode gives increased dispersion and low stray light for Raman and fluorescence studies.
● May be configured as a monochromator or a spectrograph.
● Monochromator may be factory configured for right angle or straight through beam path.
