產品型號：PW-1206B
產品說明：

價格(NTD)：$0

產品規格

Model No	PW-1206B

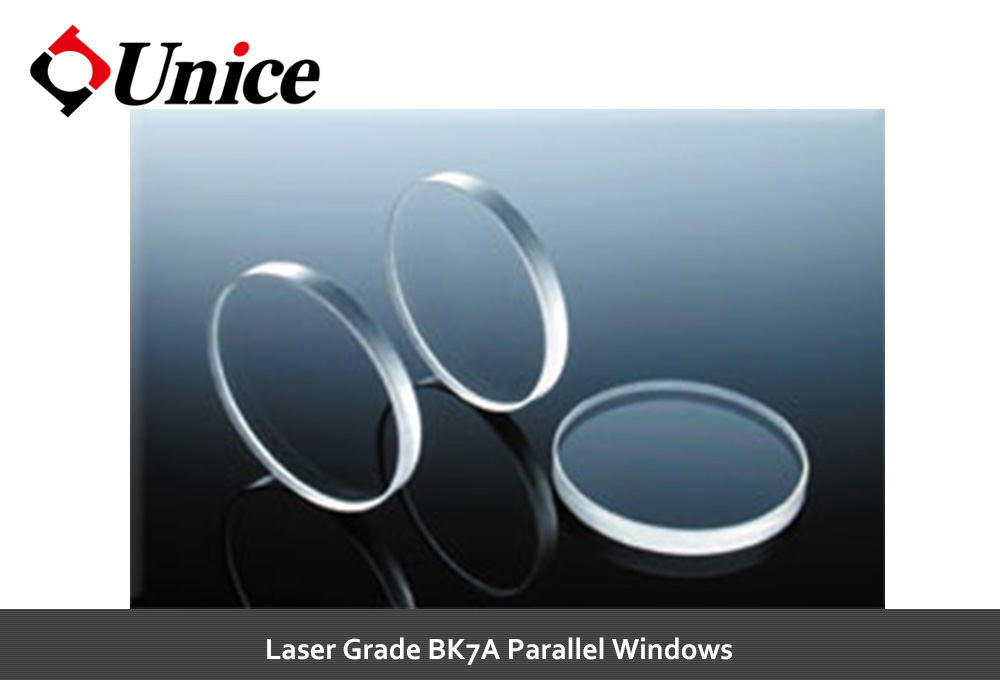

Material	BK7A
Diameter D (mm)	12.7
Thickness t (mm)	6.35
Parallelism	< 10 arc sec
Surface Flatness @ 633nm	λ/ 10
Surface Quality	< 10/5 (both sides)
Diameter Tolerance (mm)	< + 0.00 / – 0.20
Thickness Tolerance (mm)	< ± 0.25
Clear Aperture (%)	> 85
Bevel	0.3 mm (typical) x 45
Coating	Uncoated
