Medium Energy Polarizing Cubes
Medium Energy Polarizing Cubes
產品名稱 : Medium Energy Polarizing Cubes
產品說明 :

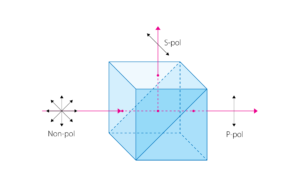

Polarizing beamsplitter cubes are easy-to-handle, high contrast and high extinction ratio polarizer that splits a randomly polarized beam into two orthogonal, linearly polarized components. Cement is used to bind the two prism halves that form the cube, so the laser damage threshold is limited.
Features
● Easy, deformation-free mounting
● High extinction ratio in transmission: Ts/Tp > 200:1
● No ghost reflections
● Minimal beam displacement
● Negligible absorption of reflected and transmitted beams
● For collimated beams only
● Input and output surfaces are AR-coated for specified wavelengths
*** Custom sizes are available on request ***
| Substratel Material | UVFS |
| Wavelength range | 440 – 1700 nm |
| Beam deviation | <3 arcmin |
| Extinction ratio | Tp/Ts > 200:1 |
| Transmission @ central wavelength | Tp>90%, >95%, >97% |
| Reflectance @ central wavelength | Rs>99%, >99.5%, >99.8% |
| Reflected and transmitted wavefront distortion (P-V) | <λ/6 @ 632.8 nm |
| Surface Quality (S-D) | 40-20 |
| LIDT | Up to 0.3 J/cm2 @ 1064 nm, 10 ns, 100 Hz |
 |
|
| 產品型號 | 產品說明 | Wavelength (nm) | Dimensions (mm) | 價格(NTD) | 產品數量 | |
|---|---|---|---|---|---|---|
| 0 | 2-PCB-C-0125 | Medium Energy Polarizing Cube | 450-650 | 12.7 x 12.7 x 12.7 | - | |
| 1 | 2-PCB-C-0200 | Medium Energy Polarizing Cube | 450-650 | 25.4 x 25.4 x 25.4 | - | |
| 2 | 2-PCB-D-0125 | Medium Energy Polarizing Cube | 532 | 12.7 x 12.7 x 12.7 | - | |
| 3 | 2-PCB-D-0200 | Medium Energy Polarizing Cube | 532 | 25.4 x 25.4 x 25.4 | - | |
| 4 | 2-PCB-E-0125 | Medium Energy Polarizing Cube | 633 | 12.7 x 12.7 x 12.7 | - | |
| 5 | 2-PCB-E-0200 | Medium Energy Polarizing Cube | 633 | 25.4 x 25.4 x 25.4 | - | |
| 6 | 2-PCB-K-0125 | Medium Energy Polarizing Cube | 1064 | 12.7 x 12.7 x 12.7 | - | |
| 7 | 2-PCB-K-0200 | Medium Energy Polarizing Cube | 1064 | 25.4 x 25.4 x 25.4 | - | |
| 8 | 2-PCB-L-0125 | Medium Energy Polarizing Cube | 1310 | 12.7 x 12.7 x 12.7 | - | |
| 9 | 2-PCB-L-0200 | Medium Energy Polarizing Cube | 1310 | 25.4 x 25.4 x 25.4 | - | |
| 10 | 2-PCB-M-0125 | Medium Energy Polarizing Cube | 1550 | 12.7 x 12.7 x 12.7 | - | |
| 11 | 2-PCB-M-0200 | Medium Energy Polarizing Cube | 1550 | 25.4 x 25.4 x 25.4 | - |
