產品名稱 : Glan Thompson Polarizers
產品說明 :

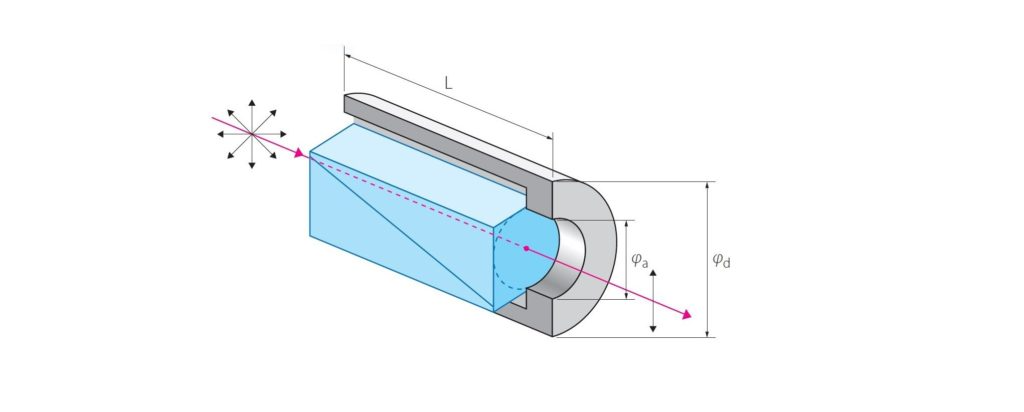

Glan-Thompson polarizers are low-power polarizers that are ideal for visible or NIR applications that require the highest-possible transmission values. Because of the cement used, they have higher transmission than Glan-Taylor polarizers but a limited useful UV spectral range and lower LIDT values. A transmitted beam of extraordinary polarization is used. The side faces are painted black to absorb rejected beams.
產品規格
| Substratel Material | Quartz, YVO4, Calcite |
| Wavelength range | 200 – 4000 nm |
| Clear aperture | Ø8 – 20 mm |
| Extinction ratio | <5×10-6 (Depending on material) |
| Beam deviation | <3 arcmin |
| Separation angle | 2-20° |
| Transmitted wavefront distortion (P-V) | <λ/4 @ 632.8 nm |
| Surface Quality (S-D) | 20-10 |
| Coatings | Single layer MgF2 |
 |
|
| 產品型號 | 產品說明 | Material | Wavelength (nm) | Clear Aperture (mm) | Outside Diameter (mm) | 價格(NTD) | 產品數量 | |
|---|---|---|---|---|---|---|---|---|
| 0 | 2-GTH-3522-1 | Glan Thompson Polarizer | CALCITE | 350 - 2300 | 8 | 25.4 | - | |
| 1 | 2-GTH-3522-2 | Glan Thompson Polarizer | CALCITE | 350 - 2300 | 10 | 25.4 | - | |
| 2 | 2-GTH-3522-3 | Glan Thompson Polarizer | CALCITE | 350 - 2300 | 12.7 | 25.4 | - |
