產品名稱 : Glan Taylor Polarizers
產品說明 :

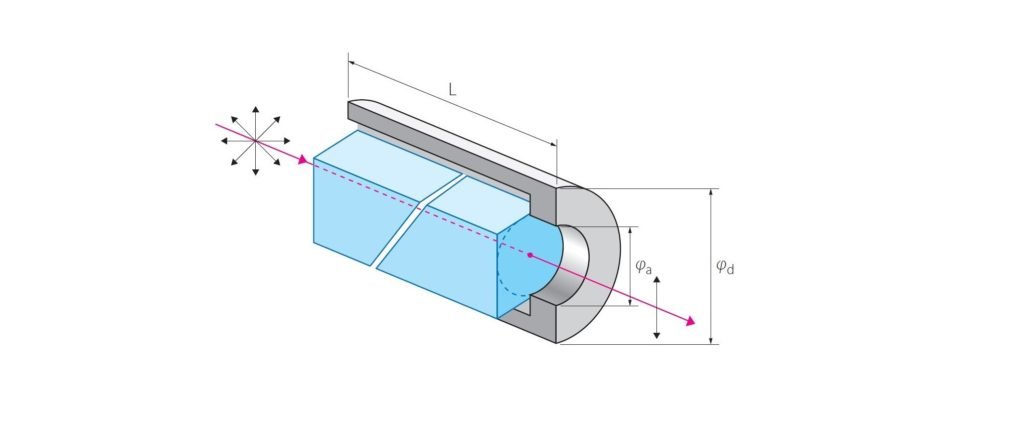

A Glan-Taylor polarizer is a medium-power polarizer designed to transmit only extraordinary polarization beam whereas an ordinary polarization beam is deflected to the housing. The side faces are painted black to absorb rejected beams. The polarizer is designed in a way that makes a shorter length available, meaning it is the best choice for medium-power ultrashort laser-pulse applications that require the lowest possible amount of pulse stretching.
產品規格
| Substratel Material | Quartz, YVO4, Calcite |
| Wavelength range | 200 – 4000 nm |
| Clear aperture | Ø8 – 20 mm |
| Extinction ratio | <5×10-6 (Depending on material) |
| Beam deviation | <3 arcmin |
| Separation angle | 2-20° |
| Transmitted wavefront distortion (P-V) | <λ/4 @ 632.8 nm |
| Surface Quality (S-D) | 20-10 |
| Coatings | Single layer MgF2 |
 |
|
| 產品型號 | 產品說明 | Material | Wavelength (nm) | Clear Aperture (mm) | Outside Diameter (mm) | 價格(NTD) | 產品數量 | |
|---|---|---|---|---|---|---|---|---|
| 0 | 2-GT-3522-1 | Glan Taylor Polarizer | CALCITE | 350 - 2300 | 8 | 25.4 | - | |
| 1 | 2-GT-3522-2 | Glan Taylor Polarizer | CALCITE | 350 - 2300 | 10 | 25.4 | - | |
| 2 | 2-GT-3522-3 | Glan Taylor Polarizer | CALCITE | 350 - 2300 | 12.7 | 25.4 | - | |
| 3 | 2-GT-3522-4 | Glan Taylor Polarizer | CALCITE | 350 - 2300 | 15 | 30 | - | |
| 4 | 2-GT-3522-5 | Glan Taylor Polarizer | CALCITE | 350 - 2300 | 20 | 38 | - | |
| 5 | 2-GT-2235-1 | Glan Taylor Polarizer | A-BBO | 200 - 350 | 8 | 25.4 | - | |
| 6 | 2-GT-2235-2 | Glan Taylor Polarizer | A-BBO | 200 - 350 | 10 | 25.4 | - | |
| 7 | 2-GT-2235-3 | Glan Taylor Polarizer | A-BBO | 200 - 350 | 12.7 | 25.4 | - | |
| 8 | 2-GT-2235-4 | Glan Taylor Polarizer | A-BBO | 200 - 350 | 15 | 30 | - | |
| 9 | 2-GT-2235-5 | Glan Taylor Polarizer | A-BBO | 200 - 350 | 20 | 38 | - | |
| 10 | 2-GT-3570-1 | Glan Taylor Polarizer | A-BBO | 300 - 700 | 8 | 25.4 | - | |
| 11 | 2-GT-3570-2 | Glan Taylor Polarizer | A-BBO | 300 - 700 | 10 | 25.4 | - | |
| 12 | 2-GT-3570-4 | Glan Taylor Polarizer | A-BBO | 300 - 700 | 15 | 30 | - | |
| 13 | 2-GT-3570-5 | Glan Taylor Polarizer | A-BBO | 300 - 700 | 20 | 38 | - | |
| 14 | 2-GT-7030-1 | Glan Taylor Polarizer | A-BBO | 700 - 3000 | 8 | 25.4 | - | |
| 15 | 2-GT-7030-2 | Glan Taylor Polarizer | A-BBO | 700 - 3000 | 10 | 25.4 | - | |
| 16 | 2-GT-7030-4 | Glan Taylor Polarizer | A-BBO | 700 - 3000 | 15 | 30 | - | |
| 17 | 2-GT-7030-5 | Glan Taylor Polarizer | A-BBO | 700 - 3000 | 20 | 38 | - | |
| 18 | 2-GT-5040-1 | Glan Taylor Polarizer | YVO4 | 500 - 4000 | 8 | 25.4 | - | |
| 19 | 2-GT-5040-2 | Glan Taylor Polarizer | YVO4 | 500 - 4000 | 10 | 25.4 | - | |
| 20 | 2-GT-5040-3 | Glan Taylor Polarizer | YVO4 | 500 - 4000 | 15 | 30 | - |
