UNI54522

產品型號：UNI54522
產品說明：

價格(NTD)：$0

產品規格產品說明

Model No	UNI54522
Type	Biased
Voltage Bias, VBias(V)	-5
Note	Low Noise Response
Protective Window	Borosilicate
Operating Temperature (°C)	-40 to 110
Responsivity @ 900nm (A/W)	0.62
NEP (W/ Hz½)	1.8 x 10^-14
Detectivity (cmHz½/W)	1.25 x 10¹³ @ -5 V, 950nm
Shunt Resistance (MΩ)	600.00
Active Area (mm²)	5.1

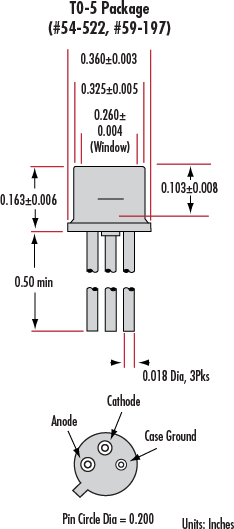

Package	TO-5
Length of Leads (inches)	0.5
Outer Diameter (inches)	0.33
Rise Time (ns)	15 @ 5 V/50 Ω, 670nm
Saturation Current, Isat (mA)	0.51
Terminal Capacitance (pF)	87 @ 0 V; 2 @ 10 V
Typical Applications	Low light levels, long integration times
RoHS	Compliant
