UNI86176

產品型號：UNI86176
產品說明：

價格(NTD)：$0

產品規格

Model No	UNI86176
Style	Infinity Corrected

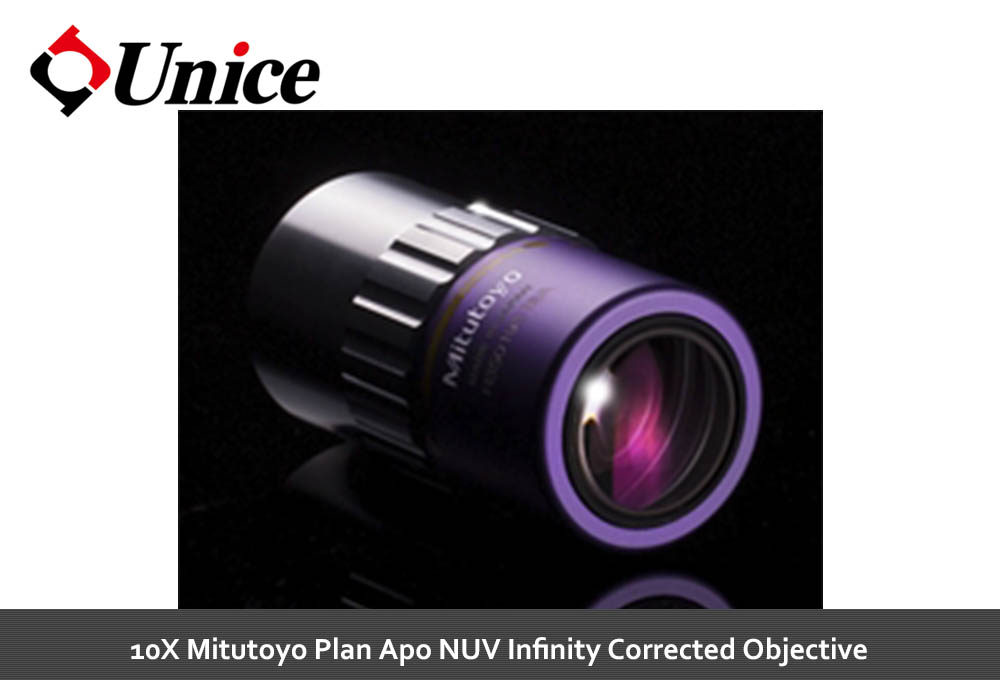

Type	Microscope Objective
Magnification	10X
NA	0.28
WD (mm)	30.5
Wavelength	355, 532nm
Wavelength Range (nm)	355 - 620
Compatible Tube Lens	Focal Length: 200mm
Depth of Focus (μm)	3.5
Field of View, 18 Diameter Field Eyepiece (mm)	1.8
Horizontal FOV, 2/3&amp;quot; Sensor	0.88mm
Field of View, 24 Diameter Field Eyepiece (mm)	2.4
FL (mm)	20.00
Length excluding Threads (mm)	64.5
Manufacturer	Mitutoyo
Maximum Diameter (mm)	34.0
Resolving Power (μm)	1.0
Weight (g)	255.00
Operating Temperature (°C)	-5 to +45
RoHS 2015	Compliant
REACH 201	Compliant
Note	Example Application: passivation (insulation films) of semiconductor circuits and repair of color filters of LCD panels (defect repair)
