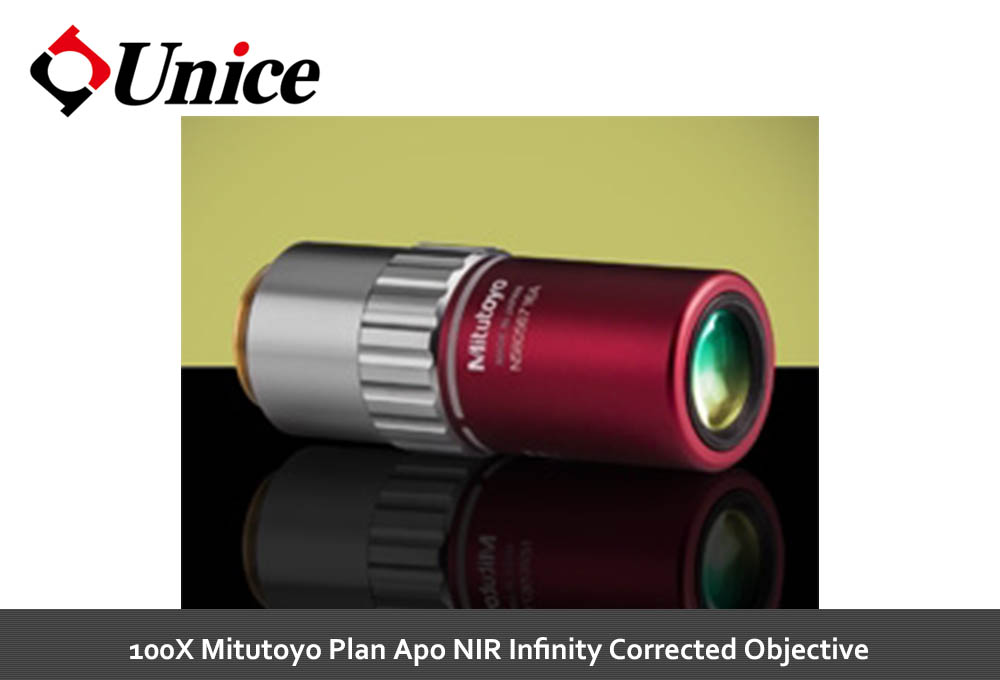

UNI46406

產品型號：UNI46406
產品說明：

價格(NTD)：$0

產品規格

Model No	UNI46406
Style	Infinity Corrected
Type	Microscope Objective
Magnification	100X
NA	0.50
WD (mm)	12.0
Wavelength	532, 1064nm
Wavelength Range (nm)	480 - 1800
Compatible Tube Lens	Focal Length: 200mm
Depth of Focus (μm)	1.1
Horizontal FOV, 1/2&amp;quot; Sensor	0.06mm
Field of View, 18 Diameter Field Eyepiece (mm)	0.18
Horizontal FOV, 2/3&amp;quot; Sensor	0.09mm
Field of View, 24 Diameter Field Eyepiece (mm)	0.24
FL (mm)	2.00
Length excluding Threads (mm)	83.0
Manufacturer	Mitutoyo
Maximum Diameter (mm)	34.0
Resolving Power (μm)	0.6
Weight (g)	335.00
Operating Temperature (°C)	-5 to +45
RoHS 2015	Compliant
REACH 201	Compliant
Note	Example Application: cutting and trimming of semiconductor wafer and circuits
