M2518-MPW2 5 Megapixel Ultra Low Distortion Lens

產品型號：M2518-MPW2
產品說明：

價格(NTD)：$0

產品說明

Model		M2518-MPW2
Focal Length		25mm
Max. Aperture Ratio		1:1.8
Max. Image Format		8.8mm x 6.6mm (Φ11mm)
Operation Range	Iris	F1.8 - F16.0
Operation Range	Focus	0.2m - Inf.
Control	Iris	Manual
Control	Focus	Manual
Object Dimension at M.O.D		5.48cm x 7.31cm 2/3"
Angle of View	D	2/3"	24.6°	1/1.8"	19.5°	1/2"	18.1°
	H		19.9°		15.7°		14.5°
	V		15.0°		11.8°		10.9°
Operating Temperature		-10° C ~ +50° C
Distortion		2/3"	0.03%(y=5.5)	1/1.8"	-0.02%(y=4.32)	1/2"	-0.02%(y=4.0)
Back Focal Length		13.8mm(WD=300mm)
Flange Back Length		17.526mm
Mount		C-Mount
Filter Size		M27.0 P=0.5mm
Weight		60g
Dimensions		Φ29mm x 36.37mm

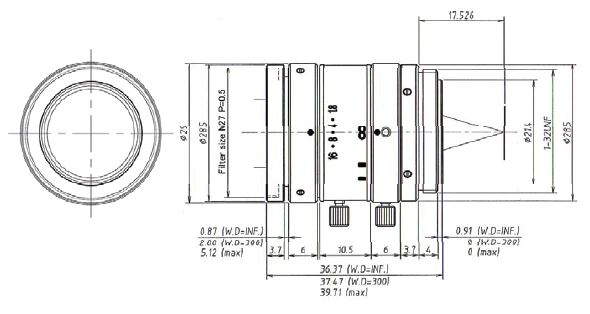

Dimensions
