產品型號：UNI62914
產品說明：

價格(NTD)：$0

產品規格

Model No	UNI62914
Primary Magnification	0.5X
Max. Sensor Format	APS-C
Maximum Image Circle (mm)	28.7
FOV@Max Sensor Format, HxV(mm)	44.8 x 33.6
Aperture (f/#)	f/6 - f/22
Working Distance (mm)	175.00
Coating	425 - 675nm BBAR
Mount	M42 x 1.0

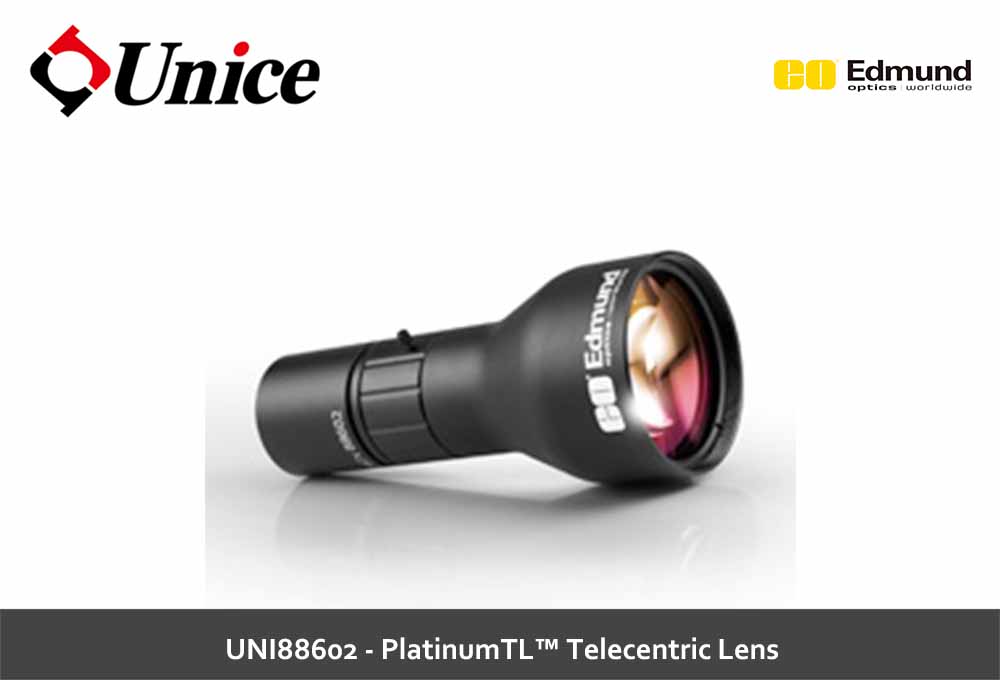

Type	Telecentric Lens
Depth of Field (mm)	±2.05 at f/10 (20% @ 20 lp/mm)
FOV, 28.7mm Sensor	57.4mm
FOV, APS-C Sensor	44.8mm
FOV, 4/3\" Sensor	34.6mm
FOV, 1.1\" Sensor	28.4mm
FOV, 1\" Sensor	25.6mm
FOV, 2/3\" Sensor	17.70mm
FOV, 1/2\" Sensor	12.8mm
Filter Thread	M86 x 1.0
Flange Distance (mm)	19.53
Length (mm)	171.10
Maximum Diameter (mm)	90.0
Number of Elements (Groups)	10 (7)
NA, Object Side	0.041
Model No. of Mounting Clamp	UNI63441
Typical Distortion @ 588nm (%)	<0.020
Typical Telecentricity @ 588nm (°)	<0.055
Weight (g)	<986
RoHS	Exempt
