產品型號：UNI58259
產品說明：

價格(NTD)：$0

產品規格

Model No	UNI58259
Primary Magnification	0.09X
Max. Sensor Format	1/2"
FOV@Max Sensor Format, HxV(mm)	71.1 x 53.3
Aperture (f/#)	f/6 - f/17.4
Working Distance (mm)	132 - 182
Coating	MgF2 (400-700nm)
Mount	C-Mount
Type	Telecentric Lens
Coating Specification	λ/4 MgF2 @ 550nm
Depth of Field (mm)	±63.6 at f/10 (20% @ 20 lp/mm)
FOV, 1/2\" Sensor	70.4mm
Filter Thread	M105 x 1.0
Length excluding Threads (mm)	200.00
Maximum Diameter (mm)	110.00
Number of Elements (Groups)	11 (8)
NA, Object Side	0.007
Resolution, Image Space MTF @ f/10	>60% @ 40 lp/mm
Model No. of Mounting Clamp	UNI56027 Sold Separately
Typical Distortion @ 588nm (%)	0.020
Typical Telecentricity @ 588nm (°)	<0.028
Weight (kg)	2.67
RoHS 2015	Compliant
REACH 201	Compliant

相關產品

UNI58260

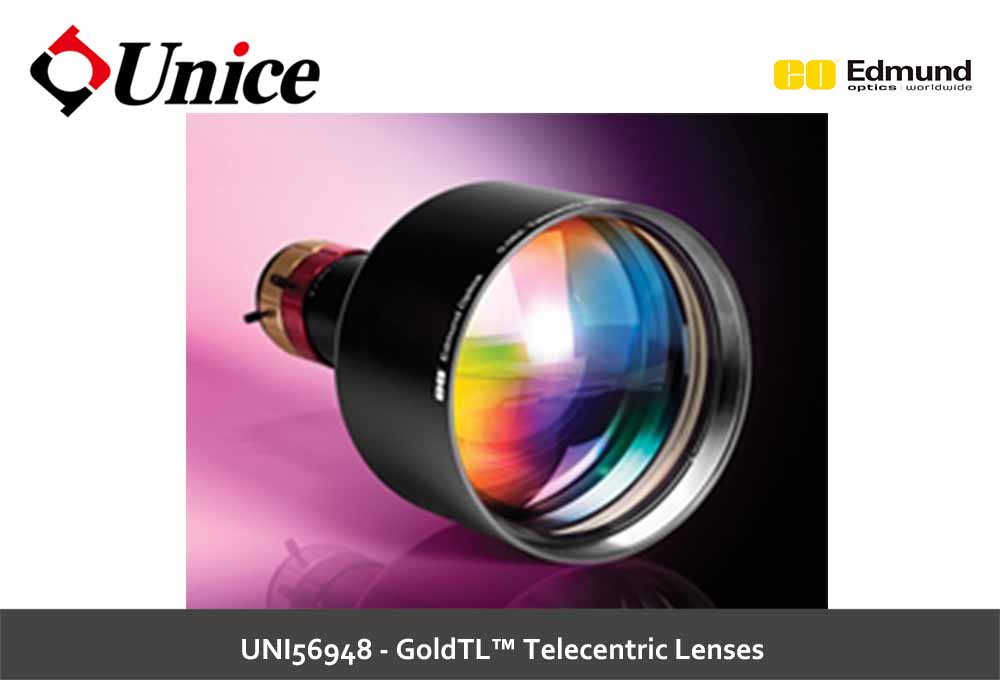

UNI56948
