Unice CA312B Camera

產品型號：CA312B
產品說明：

價格(NTD)：$0

產品說明

Model	CA312B
TV system	EIA / CCIR
Sensor	1/3” SONY CCD
Total pixels	1024(H) x 508(V) NTSC 1024(H) x 596(V) PAL
Unit cell size	5.0μm x 7.4μm
Horizontal resolution	650TVL
Min. Illumination	0.0003 lx F1.0
Sync.	Internal
S/N retio	more than 52dB AGC OFF
Lens mount	CS mount
Electronic Shutter	Auto 1/50(60) ~ 1/100000 sec
Manual shutter	1/50(60), FL 1/120(100), 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/100000
AGC	OFF/1.0, 0.75, 0.5, 0.25
Fix gain	0/6/12/18/24/30/36/42dB
Gamma	Gamma = 0.45
Back light	ON / OFF
Mirror effect	OFF / ON
OSD function	OSD cable
Defect pixels compensation	Max. 64 points
Video output	1.0 Vp-p 75 BNC
Power input	DC12V ±10%
Storage temperature	-30 ~ 60˚C
Working temperature	-31 ~ 45˚C
Weight	Camera body 90g, OSD cable 30g

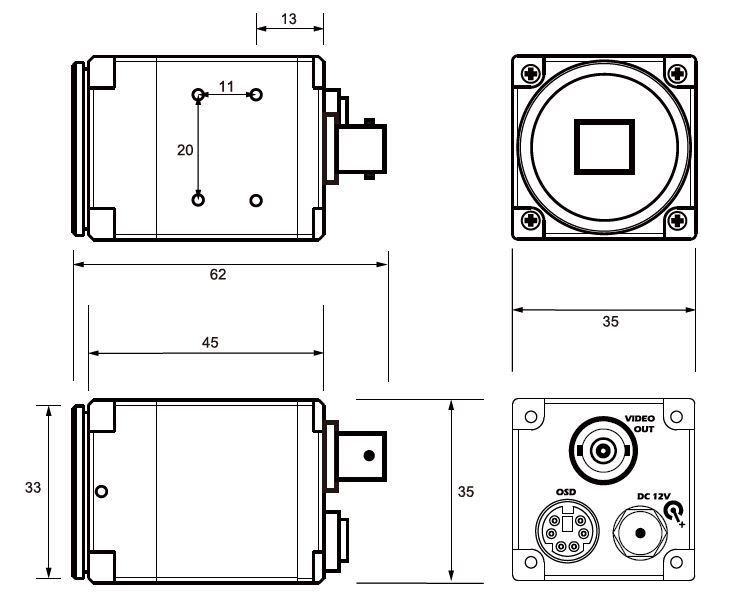

Dimensions (mm)
