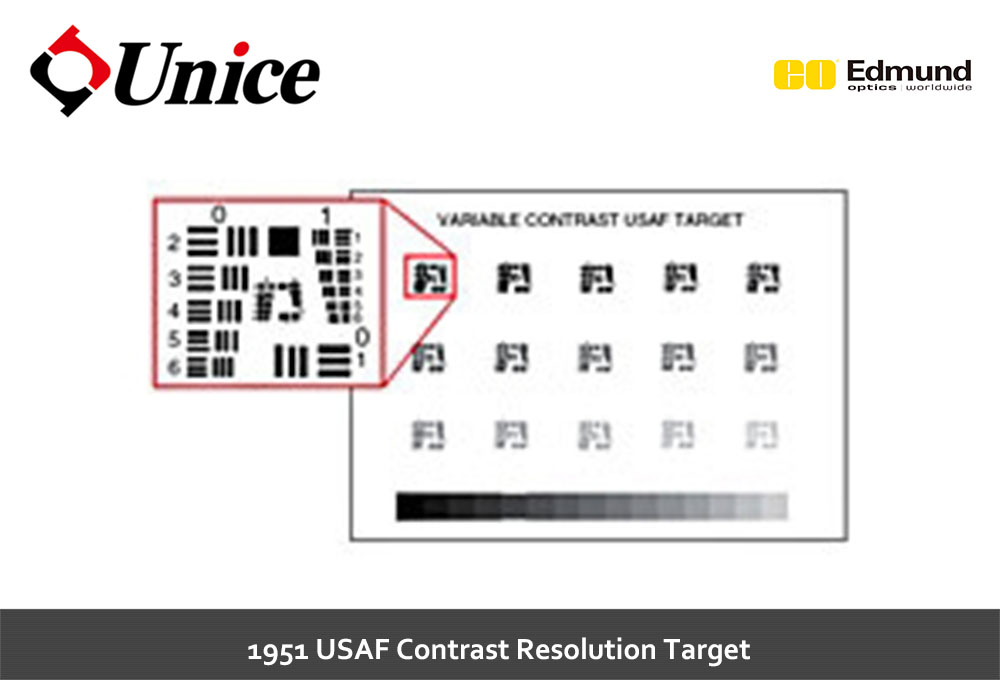

UNI53714

產品型號：UNI53714
產品說明：

價格(NTD)：$0

產品規格

Model No	UNI53714
Substrate	Photo Paper
Pattern Size (mm)	17.8 x 17.8 per OD Step
Resolution	Minimum: Group 0 Element 1 Maximum: Group 4 Element 3
Dimensions (inches)	8.5 x 11
Optical Density Steps	1.5, 1.4, 1.3, 1.2, 1.1, 1.0, 0.9, 0.8, 0.69, 0.59, 0.49, 0.39, 0.29, 0.19, 0.09
Thickness (mm)	0.20
Note	OD Tolerance at Each Step is ±0.08
NIST Certification	No
RoHS 2015	Compliant
Reach 197	Compliant
