50(150)A-BB-26-PPS
50(150)A-BB-26-PPS
產品型號：50(150)A-BB-26-PPS
產品說明：
產品說明：
-

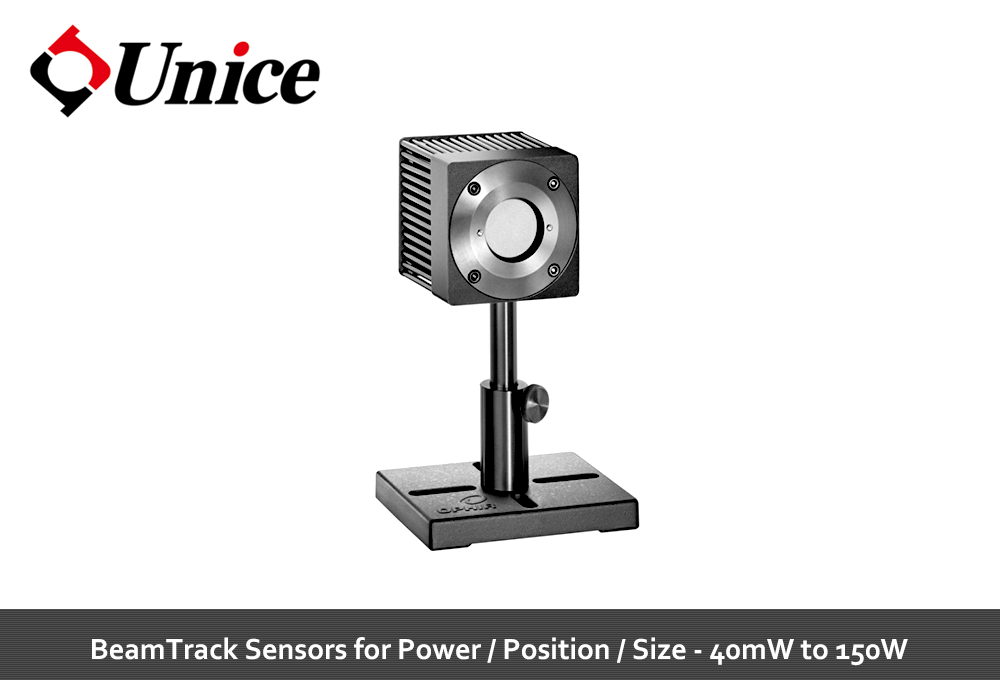

The 50(150)A-BB-26-PPS BeamTrack laser measurement sensor measures laser beam size and position as well as power and energy. It has a 26 mm aperture and can measure beam size to 5% accuracy and position to 0.1 mm + 5% of distance from center accuracy. It measures optical power from 40 mW to 50 W continuously and to 150 W intermittently. It can measure energy from 20 mJ to 100 J.
• Broadband absorber for 0.19-20 µm laser measurement
• 40 mW to 50 W continuous power measurement range
• 20 mJ to 100 J energy measurement range
• Accurate tracking of beam position to fractions of a mm
• Monitoring of the laser beam size
Auto CAD PDF
