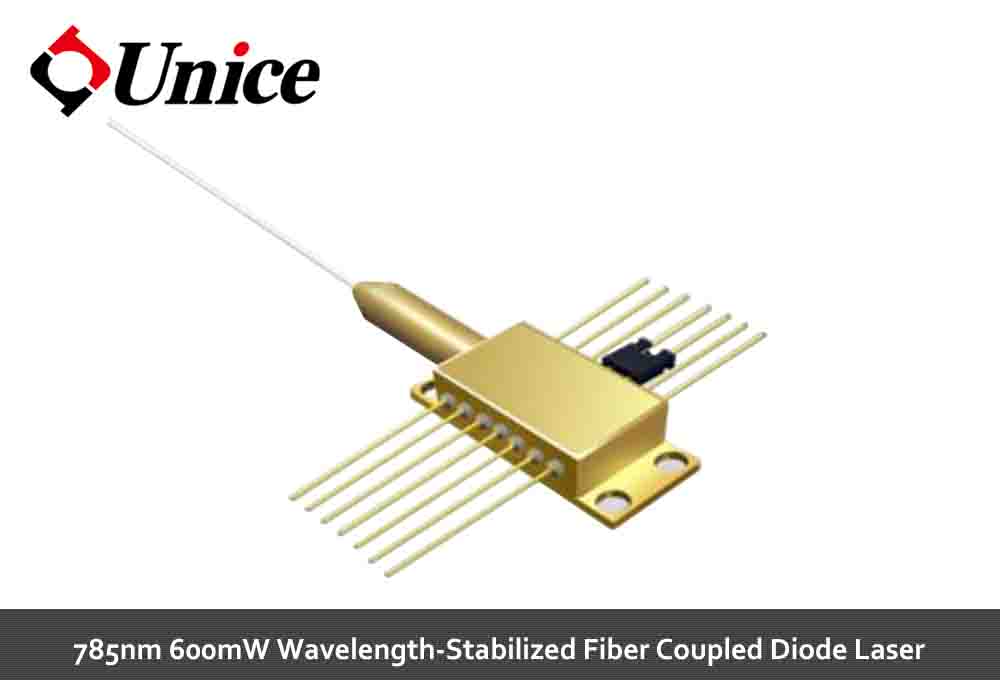

K785AFLFN-0.600W Single Emitter, 785nm, 600mW Wavelength-Stabilized Fiber Coupled Diode Laser

K785AFLFN-0.600W

產品型號：K785AFLFN-0.600W
產品說明：

價格(NTD)：$0

產品說明

Specifications（25℃）		Symbol	Unit	Minimum	Typical	Maximum
Optical Data ⁽¹⁾	CW Output Power	P_o	mW	600	-	-
	Center wavelength	λc	nm	785±0.5
	Spectral width (FWHM)	△λ	nm	-	0.06	0.12
	Wavelength Shift with Temperature	△λ/△ T	nm/℃	-	0.01	-
Electrical Data	Electrical-to-Optical Efficiency	PE	%	-	30	-
	Threshold Current	I_th	A	-	0.4	-
	Operating Current	I_op	V	-	1.1	1.5
	Operating Voltage	V_op	A	-	1.9	2.2
	Slope Efficiency	η	W/A	-	1	-
Fiber Data	Core Diameter	D_core	μm	-	105	-
	Cladding Diameter	D_clad	μm	-	125	-
	Buffer Diameter	D_buf	μm	-	245	-
	Numeric Aperture	NA	-	-	0.22	-
	Total Fiber Length	L_f	m	-	1	-
	Fiber Loose Tubing Diameter / Length	-	mm	0.9mm PVC 15cm
	Minimum Bending Radius	-	mm	50	-	-
	Fiber Termination	-	-	-	None	-
Thermistor	-	Rt	KΩ)/β(25℃)	10±3%/3477
PD	Current	-	μA	300	-	500
TEC	TEC Max. Current	I_mo	A	-	-	2.2
TEC	TEC Max. Voltage	I_tec	V	-	-	8.75
Others	ESD	V_esd	V	-	-	500
	Storage Temperature ⁽²⁾	T_st	℃	-20	-	70
	Lead Soldering Temp	T_ls	℃	-	-	260
	Lead Soldering Time	t	sec	-	-	10
	Operating Case temperature ⁽³⁾	T_op	℃	15	-	35
	Relative Humidity	RH	%	15	-	75
Operating Notes	● Avoid eye and skin exposure to direct radiation during operation. ● ESD precautions must be taken during storage, transportation and operation. ● Short-circuit is required between pins during storage and transportation. ● Please connect pins to wires by solder instead of using socket when operation current is higher than 6A. Soldering point should be close to the root of the pins. Soldering temperature should be lower than 260℃ and time shorter than 10 second. ● Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and cutting the fiber. ● Use constant current power supply to avoid surge current during operation. ● Laser diode must be used according to the specifications. ● Laser diode must work with good cooling. ● Operation temperature ranges from 15℃ to 35℃ . ● Storage temperature ranges from -20℃ to +70℃.
Remark	(1) Data measured under operation output at 600mW@25℃. (2) A non-condensing environment is required for operation and storage. (3) Operating temperature defined by the package housing. Acceptable operating range is 15℃~35℃, but performance may vary.
