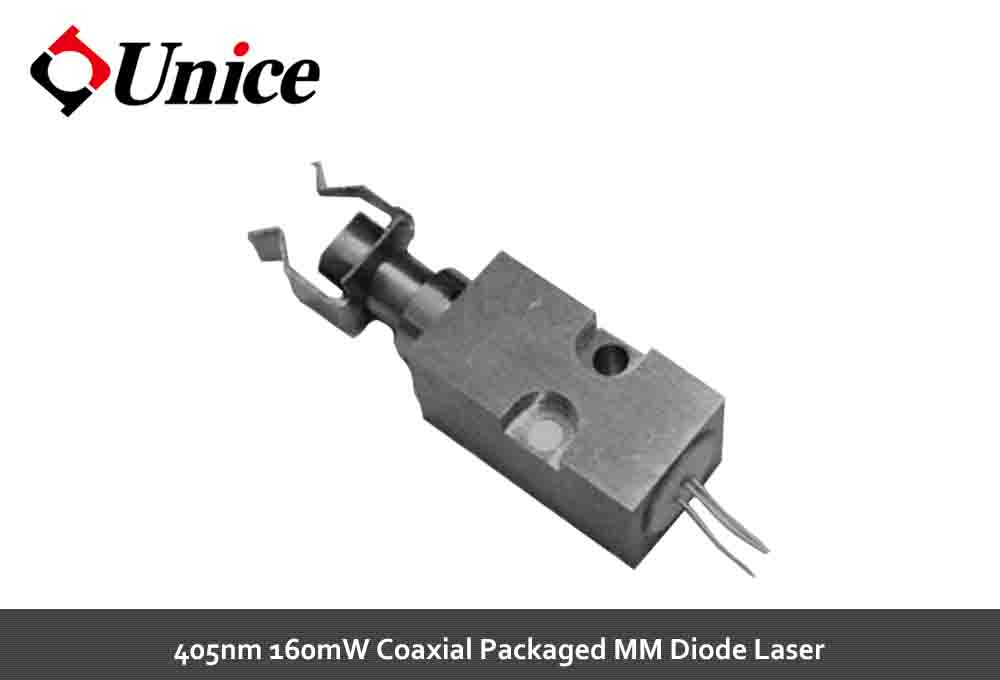

K405E03CN-0.160W Single Emitter, 405nm, 160mW Coaxial Packaged MM Diode Laser

K405E03CN-0.160W

產品型號：K405E03CN-0.160W
產品說明：

價格(NTD)：$0

產品說明

Specifications（25℃）		Symbol	Unit	Minimum	Typical	Maximum
Parameter*	CW Output Power	P_O	mW	160	-	-
	Threshold current	I_th	mA	-	30	-
	Operating current	I_op	mA	-	-	150
	Operating voltage	V_op	V	-	-	5.5
	Reverse Voltage	V_re	V	-	5.5	-
	Slope Efficiency	η	W/A	-	1.4	-
	Electrical-to-Optical Efficiency	PE	%	20	-	-
	Center wavelength	ʎ_c	nm	400	-	410
	Spectral width (FWHM)	Δʎ	nm	-	4	-
	Wavelength Shift with Temperature	-	nm/℃	-	0.3	-
Fiber Data	Core diameter	D_core	μm	-	40	-
Fiber Data	Numeric aperture	NA	NA	-	0.22	-
Others	ESD	-	V	-	-	500
	Storage temperature	-	℃	-20	-	70
	Lead Soldering Temp	Tis	℃	-	-	260
	Lead Soldering Time	Tis	sec	-	-	10
	Operating case temperature	Top	℃	15	-	35
	Relative Humidity	-	%	15	-	75
Operating Notes	● Avoid eye exposure to direct or scattered radiation. ● ESD precautions must be taken. ● Please connect pins to wires by solder instead of using socket when operation current is higher than 6A. ● Soldering point should be close to the root of the pins. Soldering temperature should be lower than 260℃ and time shorter than 3 second. ● Use constant current power supply. Avoid surge current. ● Laser diode must be used according to the specifications. ● Laser diode must work with good cooling. ● A minimum bend radius should be 300 times greater than the fiber cladding diameter. ● Operation temperature is 15℃~ 35℃. ● Storage: -20℃~ +70℃, all pins short-circuit.
Remark: * Data measured under operation output at 160mW.
