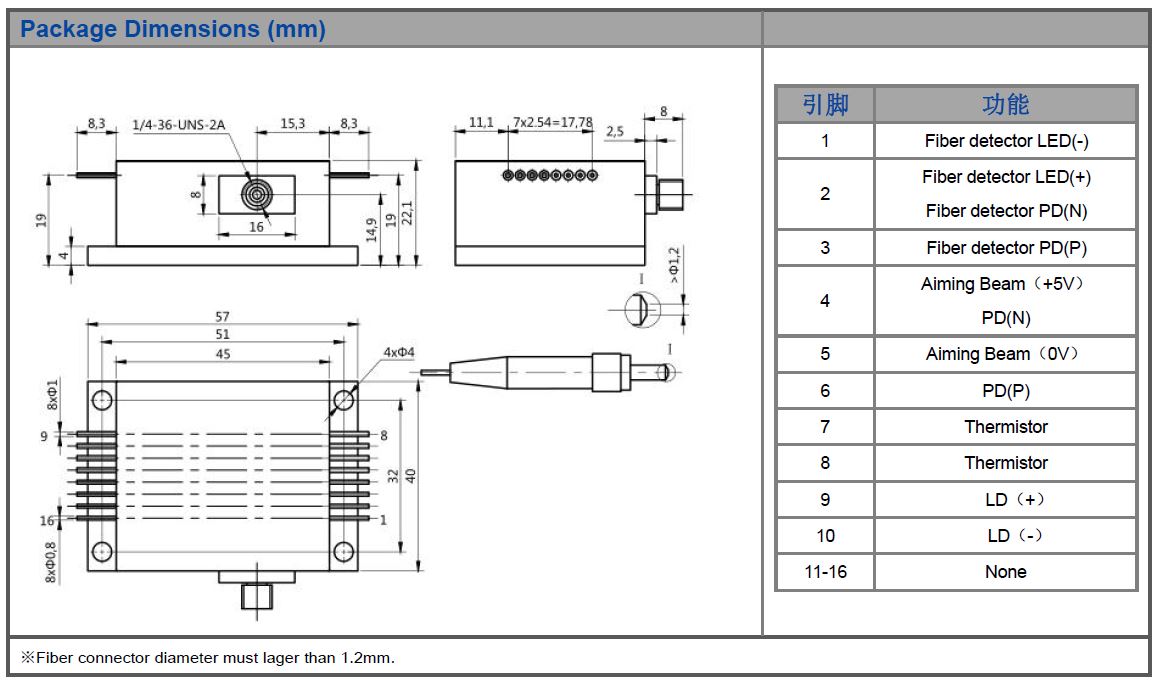

KA64HAMCA-15.00W Multi-Single Emitter, 1064nm, 15W Detachable Diode Laser

KA64HAMCA-15.00W

產品型號：KA64HAMCA-15.00W
產品說明：

價格(NTD)：$0

產品說明

Specifications（25℃）		Symbol	Unit	Minimum	Typical	Maximum
Optical Data (1)	CW Output Power	P_o	W	15	-	-
	Center wavelength	λc	nm	1064±20
	Spectral width (FWHM)	△λ	nm	6
	Wavelength Shift with Temperature	△λ/△T	nm/℃	-	0.3	-
	Wavelength Shift with Current	△λ/△A	nm/A	-	1	-
Electrical Data	Electrical-to-Optical Efficiency	PE	%	32	-	-
	Operating Current	I_op	A	-	-	9
	Threshold Current	I_th	A	-	0.7	-
	Operating Voltage	V_op	V	-	-	5.2
	Slope Efficiency	η	W/A	-	2.1	-
Fiber Data	Core Diameter	D_core	μm	-	200	-
	Numeric Aperture	NA	-	-	0.22	-
	Fiber Termination	-	-	SMA905
PD Data	Current	I_mo	μA	200	-	2000
Thermistor	-	Rt	(K Ω)/β(25℃)	-	10±3%/3477	-
Aiming Beam Data	Output Power	P_a	mW	-	2	-
	Wavelength Range	I_a	nm	635±10
	Voltage(2)	V_a	V	-	2.2	-
	Current	I_a	mA	-	45	65
Others	ESD	V_esd	V	-	-	500
	Storage Temperature (3)	T_st	℃	-20	-	70
	Lead Soldering Temp	T_ls	℃	-	-	260
	Lead Soldering Time	t	sec	-	-	10
	Operating Case temperature (4)	T_op	℃	15	-	35
	Relative Humidity	RH	%	15	-	75
Operating Notes	● Avoid eye and skin exposure to direct radiation during operation. ● ESD precautions must be taken during storage, transportation and operation. ● Short-circuit is required between pins during storage and transportation. ● Please connect pins to wires by solder instead of using socket when operation current is higher than 6A. Soldering point should be close to the root of the pins. Soldering temperature should be lower than 260℃ and time shorter than 10 second. ● Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and cutting the fiber. ● Use constant current power supply to avoid surge current during operation. ● Laser diode must be used according to the specifications. ● Laser diode must work with good cooling. ● Operation temperature ranges from 15℃ to 35℃ . ● Storage temperature ranges from -20℃ to +70℃ .
Remark	(1) Data measured under operation output at 15W@25℃. (2) Support 5V DC input. (3) A non-condensing environment is required for operation and storage. (4) Operating temperature defined by the package case. Acceptable operating range is 15℃~35℃,but performance may vary.
