1310 and 1550nm Non-Isolated DFB Laser Diode Modules
1310 and 1550nm Non-Isolated DFB Laser Diode Modules
產品名稱 : 1310 and 1550 Non-Isolated DFB Laser Diode Modules
產品說明 :
Features
● Internal Monitor Photodiode
● Compact, reliable receptacle & coax fiber-coupled package
● 0.1 - 2.0 mW singlemode (9/125)
● 30dB minimum side mode suppression
● 0.2nsec typical rise/fall time
產品規格
More detail products information please contact with our services center. E-mail: unicehq@unice.com.tw
| Part No. | Wavelength (nm) Min. / Typ. / Max. |
Min. Fiber Coupled Power (mW) |
Pin-out | Threshold Current (mA) Typ. / Max. |
Operating Current (mA) Typ. / Max. |
Monitor PD Current (mA) Min. / Typ. |
|---|---|---|---|---|---|---|
| Continuous Wavelength InGaAsP Lasers @ 25C | ||||||
| PL13U0021FAE-Q-1-01 | 1290 / 1310 / 1330 | 2mW into 9/125 SMF |
“H” | 6 / 20 | 18 / 40 | InGaAs 0.1 / 0.8 |
| PL13U0.5FC11-S-0 | 1290 / 1310 / 1330 | 0.5mW FC Receptacle |
“H” | 6 / 20 | 18 / 40 | InGaAs 0.1 / 0.8 |
| PL13N0021FAA-0-0-01 | 1295 / 1310 / 1325 | 2mW into 9/125 SMF |
“T” | 10 / 15 | 20 / 35 | InGaAs 0.1 / 0.8 |
| PL15A0011SCA-0-0-01 | 1530 / 1550 / 1570 | 1mW into 9/125 SMF |
“H” | 10 / 30 | 30 / 60 | InGaAs 0.1 / 0.8 |
| PL15A0.51FCG-A-0-.5 | 1530 / 1550 / 1570 | 0.5mW into 9/125 SMF |
“H” | 15 / 30 | 30 / 45 | InGaAs 0.1 / 0.8 |
| PL15N001T00A-0-0-01 | 1530 / 1550 / 1570 | 1mW into PM fiber |
“T” | 10 / 15 | 20 / 30 | InGaAs 0.1 / 0.8 |
| PL15N002FC0-0-0-01 | 1530 / 1550 / 1570 | 2mW into 9/125 SMF |
“T” | 10 / 15 | 20 / 30 | InGaAs 0.1 / 0.8 |

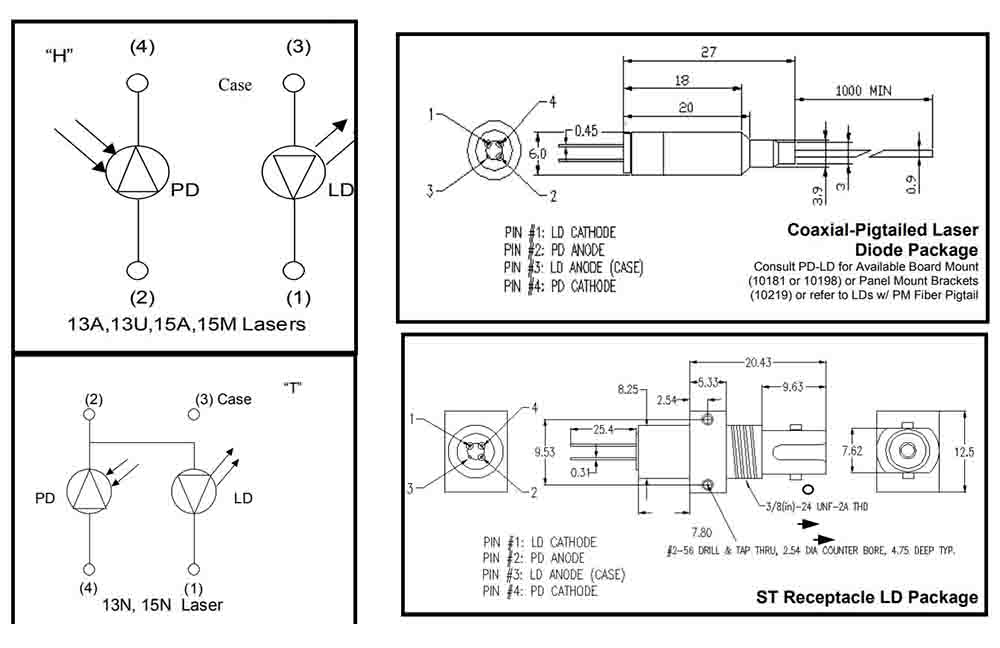

Physical Dimensions (mm) and Pin Connection

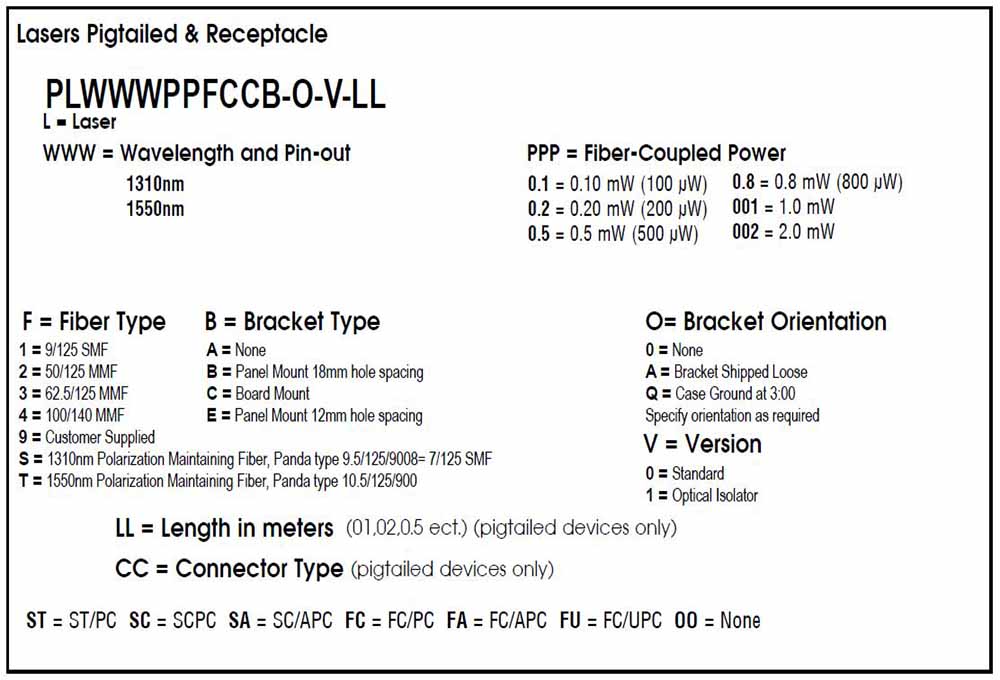

Ordering Information
