CW Diode Lasers - 375~980nm
CW Diode Lasers - 375~980nm
產品名稱 : CW Diode Lasers - 375~980nm
產品說明 :
MDL-XS laser series, features with integrated electronics, plug and play, good beam profile, miniaturization, standardization of interface advantages of continuous diode lasers. It is the ideal solution for a wide range of applications including life sciences, environmental monitoring, inspection and machine vision. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems, also for end user applications in research and development.
產品規格
Selection Guide
| Model | Wavelength (nm) | Output power (mW) |
|---|---|---|
| MDL-XS-375 | 375 | 1~50 |
| MDL-XS-405 | 405 | 1~200 |
| MDL-XS-420 | 420 | 1~120 |
| MDL-XS-450 | 450 | 1~30 |
| MDL-XS-488 | 488 | 1~50 |
| MDL-XS-505 | 505 | 1~80 |
| MDL-XS-520 | 520 | 1~50 |
| MDL-XS-637 | 637 | 1~100 |
| MDL-XS-642 | 642 | 1~100 |
| MDL-XS-650 | 650 | 1~80 |
| MDL-XS-655 | 655 | 1~80 |
| MDL-XS-660 | 660 | 1~80 |
| MDL-XS-785 | 785 | 1~80 |
| MDL-XS-808 | 808 | 1~80 |
| MDL-XS-915 | 915 | 1~100 |
| MDL-XS-940 | 940 | 1~100 |
| MDL-XS-980 | 980 | 1~50 |

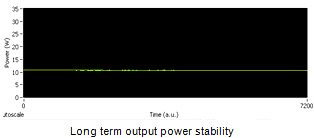

Features of MxL-S series lasers:
 |
 |
||||
 M2 measurement <1.2 |

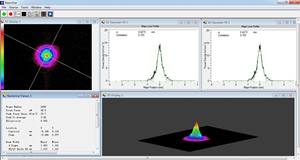

 Beam profile testing |
 Modulation waveform (Superposition of TTL & Analog) |
|||
| 產品型號 | 產品說明 | 價格(NTD) | 產品數量 | |
|---|---|---|---|---|
| 0 | MDL-XS-375 | 375nm Diode Laser (Output power & power stability must be specified when you submit inquiry.) | - | |
| 1 | MDL-XS-405 | 405nm Diode Laser (Output power & power stability must be specified when you submit inquiry.) | - | |
| 2 | MDL-XS-420 | 420nm Diode Laser (Output power & power stability must be specified when you submit inquiry.) | - | |
| 3 | MDL-XS-450 | 450nm Diode Laser (Output power & power stability must be specified when you submit inquiry.) | - | |
| 4 | MDL-XS-488 | 488nm Diode Laser (Output power & power stability must be specified when you submit inquiry.) | - | |
| 5 | MDL-XS-505 | 505nm Diode Laser (Output power & power stability must be specified when you submit inquiry.) | - | |
| 6 | MDL-XS-520 | 520nm Diode Laser (Output power & power stability must be specified when you submit inquiry.) | - | |
| 7 | MDL-XS-637 | 637nm Diode Laser (Output power & power stability must be specified when you submit inquiry.) | - | |
| 8 | MDL-XS-642 | 642nm Diode Laser (Output power & power stability must be specified when you submit inquiry.) | - | |
| 9 | MDL-XS-650 | 650nm Diode Laser (Output power & power stability must be specified when you submit inquiry.) | - | |
| 10 | MDL-XS-655 | 655nm Diode Laser (Output power & power stability must be specified when you submit inquiry.) | - | |
| 11 | MDL-XS-660 | 660nm Diode Laser (Output power & power stability must be specified when you submit inquiry.) | - | |
| 12 | MDL-XS-785 | 785nm Diode Laser (Output power & power stability must be specified when you submit inquiry.) | - | |
| 13 | MDL-XS-808 | 808nm Diode Laser (Output power & power stability must be specified when you submit inquiry.) | - | |
| 14 | MDL-XS-915 | 915nm Diode Laser (Output power & power stability must be specified when you submit inquiry.) | - | |
| 15 | MDL-XS-940 | 940nm Diode Laser (Output power & power stability must be specified when you submit inquiry.) | - | |
| 16 | MDL-XS-980 | 980nm Diode Laser (Output power & power stability must be specified when you submit inquiry.) | - |
