DS3-808-150-LD

產品型號：DS3-808-150-LD
產品說明：

價格(NTD)：$0

產品說明

Specifications (25℃)		DS3-808-150-LD
Optical Data (1)	CW Output Power	≤150W
	Center wavelength	808nm
	Spectral width(FWHM)	±10nm
	Wavelength shift with temperature	≤3nm
	Output power instability（25℃)	±3%（2 hours）
	Power Range	10~100%
Fiber Data	Core diameter	105/200/400μm
	Numeric aperture	0.22
	Fiber length	2m
	Fiber termination	SMA905
Electrical Data	Power supply	100~240V / 200~240V（50-60Hz）
	Power consumption at nom. Power, approx.	<1200W
	Drive mode	Constant current
	Emission mode	CW or Modulated 1 Hz in 20kHz
	Control mode	Touch screen, RS232, I/O
	Modulation frequency	1~20k Hz
	Modulation Pulse Width	16μs~950ms(Pulse) / 16μs~999ms (Single Pulse)
	Modulation Rise/Fall Time (Min. Value)	≤10μs
	Operation temperature (2)	20~30℃
	Current	<11A
Aiming beam Data (3)	Center wavelength	635±10nm
Aiming beam Data (3)	CW Output Power	2mW

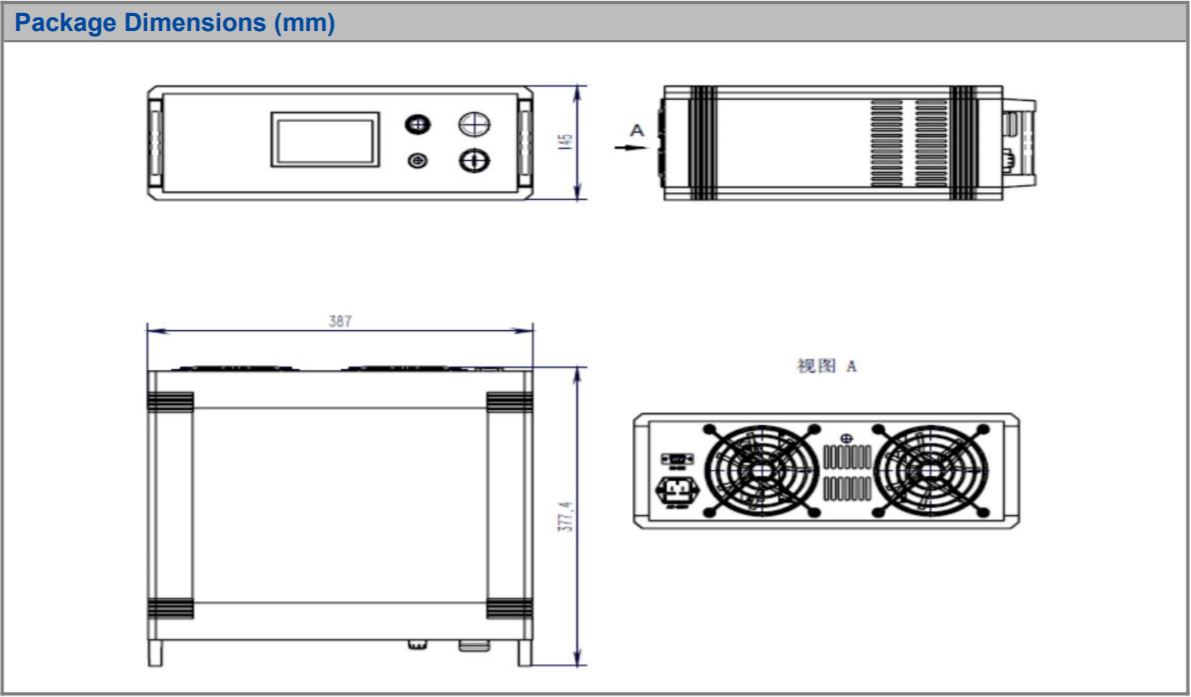

Mechanical Parameters	Dimensions (L×W×H)	387× 377.4× 145mm
Mechanical Parameters	Weight	<15Kg
Others	Refrigerating method	Air cooling/Water-cooling
	Storage temperature (4)	5~50℃
	Temperature Ambient in Operation	15~30℃
	Cooling requirement	Internal fan, At least 10 cm space outside fan
	Relative Humidity	5~80%
	Protection rating	IP54
	Safety class	4（EN 60825-01）
Operating Notes	● Avoid eye and skin exposure to direct radiation during operation. ● Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and cutting the fiber. ● Use constant current power supply to avoid surge current during operation. ● Laser diode must be used according to the specifications. ● Operation temperature ranges from 15℃ to 35℃. ● Storage temperature ranges from -20℃ to +70℃ .
Remark	(1) Consult Unice for other available options. (2) Operating temperature defined by the package case. Acceptable operating range is 20℃~30℃, but performance may vary. (3) The indicator light can be customized according to customer requirements. (4) A non-condensing environment is required for operation and storage.
