WI-2502CI

WI-2502CI

產品型號：WI-2502CI
產品說明：

價格(NTD)：$0

產品規格

Model No	WI-2502CI

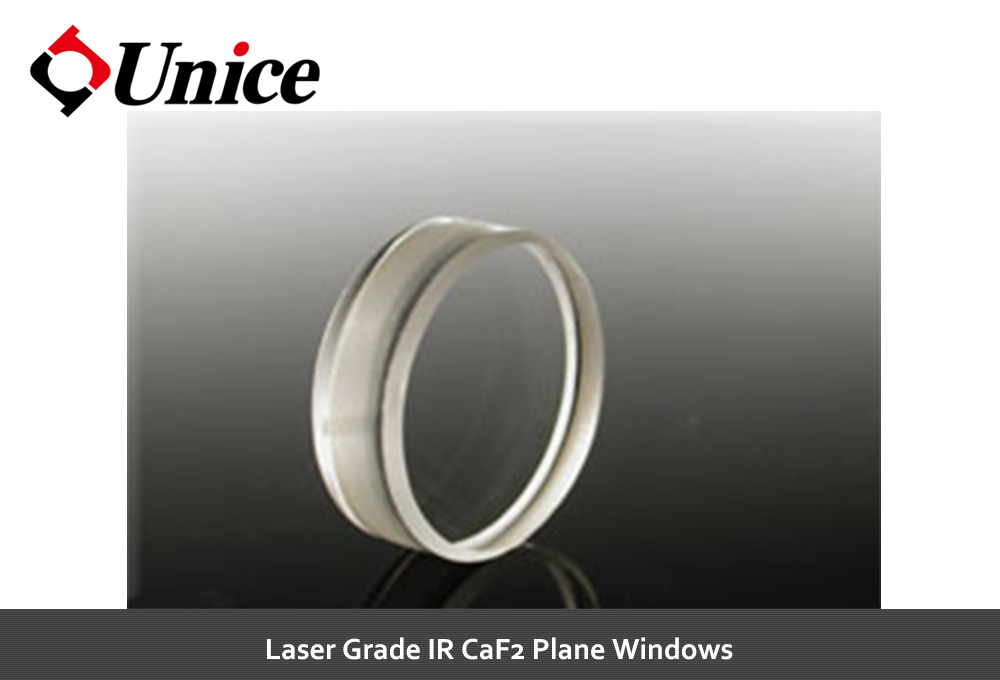

Material	IR Grade CaF2
Diameter D (mm)	25.4
Thickness t (mm)	2.032
Parallelism	< 3 arc min
Surface Flatness @ 633 nm	λ/ 4
Surface Quality	< 20/10 (both sides)
Diameter Tolerance (mm)	< + 0.00 / – 0.20
Thickness Tolerance (mm)	< ± 0.25
Clear Aperture (%)	> 85
Bevel	0.3 mm (typical) x 45
Coating	Uncoated
