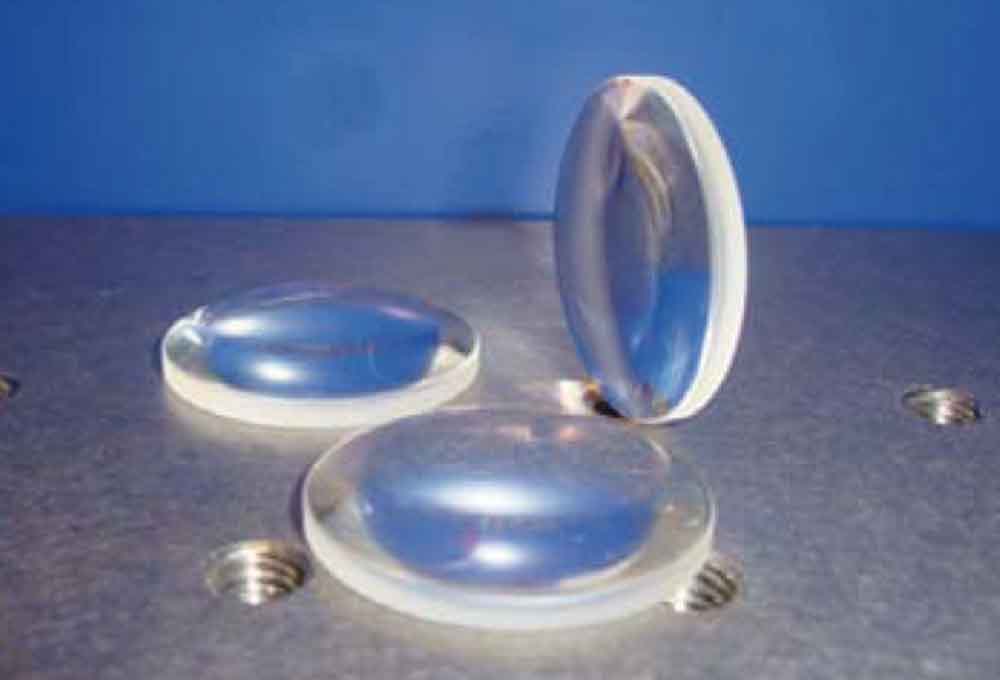

Commercial Grade MgF2 PCX Lenses
Commercial Grade MgF2 PCX Lenses
產品名稱 : Commercial Grade MgF2 PCX Lenses
產品說明 :
產品規格
| Material | MgF2 (Magnesium Fluoride) |
| Design Wavelength | 200nm, 480nm, 633nm, 2μm |
| Focal Length Tolerance | ±2% |
| Diameter Tolerance | +0.0/-0.1mm |
| Thickness Tolerance | ±0.2mm |
| Surface Accuracy | λ/2@632.8nm |
| Surface Quality | 80-50 |
| Centration | <3 arc min |
| Clear Aperture | >80% |
| Bevelling | <0.2x45∘ |
| Coating | Uncoated |
| 產品型號 | 產品說明 | 價格(NTD) | 產品數量 | |
|---|---|---|---|---|
| 0 | UA6002MF | MgF2 Plano-Convex Lenses, Ø25.4mm, EFL:50mm, Uncoated | - | |
| 1 | UA6004MF | MgF2 Plano-Convex Lenses, Ø25.4mm, EFL:75mm, Uncoated | - | |
| 2 | UA6005MF | MgF2 Plano-Convex Lenses, Ø25.4mm, EFL:100mm, Uncoated | - | |
| 3 | UA6006MF | MgF2 Plano-Convex Lenses, Ø25.4mm, EFL:150mm, Uncoated | - | |
| 4 | UA6007MF | MgF2 Plano-Convex Lenses, Ø25.4mm, EFL:200mm, Uncoated | - | |
| 5 | UA6008MF | MgF2 Plano-Convex Lenses, Ø25.4mm, EFL:250mm, Uncoated | - | |
| 6 | UA6009MF | MgF2 Plano-Convex Lenses, Ø25.4mm, EFL:500mm, Uncoated | - | |
| 7 | UA6010MF | MgF2 Plano-Convex Lenses, Ø25.4mm, EFL:1000mm, Uncoated | - |
