Laser Grade Ø12.7mm Lenses, EFL. 50 ~ 1000mm
Laser Grade Ø12.7mm Lenses, EFL. 50 ~ 1000mm
產品名稱 : Laser Grade Ø12.7mm Lenses, EFL. 50 ~ 1000mm
產品說明 :

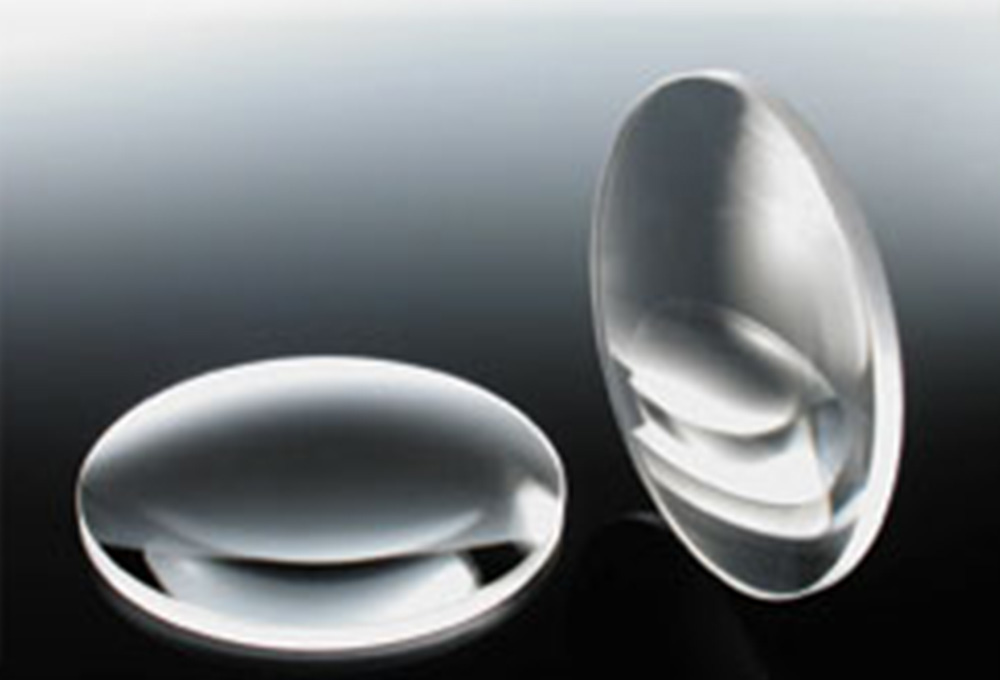

Plano-convex lenses are useful for a wide range of applications. These lenses are manufactured from Corning 7980 0F grade for 230nm to 1600nm applications. All lenses are uncoated but anti-reflection coatings are available. When used to focus a collimated beam, the light should be incident on the curved surface of the lens. These plano-convex lenses may be combined with other lenses to form complex imaging systems.
產品規格
| Material | UV Grade Fused Silica |
| Surface Flatness | < λ / 10 @ 633 nm |
| Surface Quality | <10/5 (both sides) |
| Centration Error | < 3 arc min |
| Focal Length Tolerance @250nm | < ± 0.5% |
| Diameter Tolerance | < + 0.00 / – 0.20 mm |
| Thickness Tolerance | < ± 0.25 mm |
| Clear Aperture | > 85% of diameter |
| Coating | Uncoated |
 |
|
| 產品型號 | 產品說明 | Diameter (mm) | FL @ 250nm (mm) | 價格(NTD) | 產品數量 | |
|---|---|---|---|---|---|---|
| 0 | PCX-12.7U-050 | Laser Grade Fused Silica PCX Lens | 12.7 | 50 | - | |
| 1 | PCX-12.7U-075 | Laser Grade Fused Silica PCX Lens | 12.7 | 75 | - | |
| 2 | PCX-12.7U-100 | Laser Grade Fused Silica PCX Lens | 12.7 | 100 | - | |
| 3 | PCX-12.7U-150 | Laser Grade Fused Silica PCX Lens | 12.7 | 150 | - | |
| 4 | PCX-12.7U-200 | Laser Grade Fused Silica PCX Lens | 12.7 | 200 | - | |
| 5 | PCX-12.7U-250 | Laser Grade Fused Silica PCX Lens | 12.7 | 250 | - | |
| 6 | PCX-12.7U-300 | Laser Grade Fused Silica PCX Lens | 12.7 | 300 | - | |
| 7 | PCX-12.7U-400 | Laser Grade Fused Silica PCX Lens | 12.7 | 400 | - | |
| 8 | PCX-12.7U-500 | Laser Grade Fused Silica PCX Lens | 12.7 | 500 | - | |
| 9 | PCX-12.7U-750 | Laser Grade Fused Silica PCX Lens | 12.7 | 750 | - | |
| 10 | PCX-12.7U-1000 | Laser Grade Fused Silica PCX Lens | 12.7 | 1000 | - |
