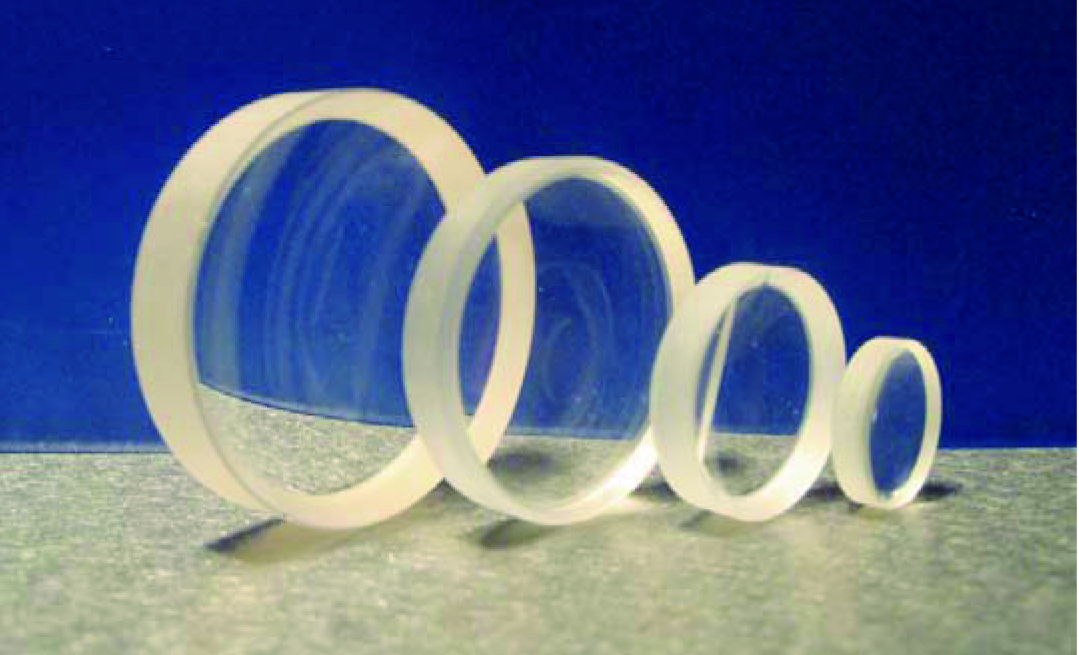

UE5243CF CaF2 Positive Meniscus Lenses

UE5243CF

產品型號：UE5243CF
產品說明：

價格(NTD)：$0

產品說明

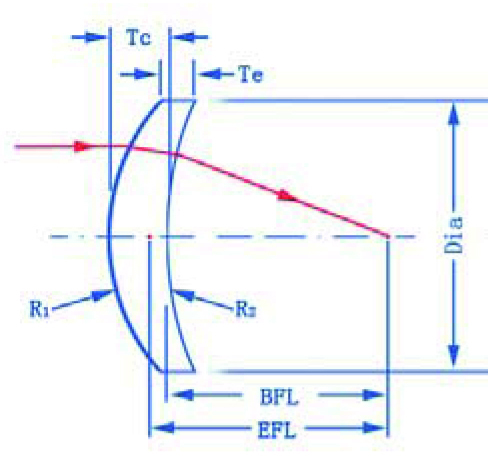

Specification

Material		CaF₂
Diameter (Ø)		12.7mm
Focal Length (EFL)		50mm
Back Focal Length (BFL)		47.09mm
Radius of Curvature (R)	R1	15mm
	R2	52.79mm
Center Thickness (Tc)		3.0mm
Edge Thickness (Te)		2.0mm
AR Coating		IR AR Coating 3 ~ 5μm
