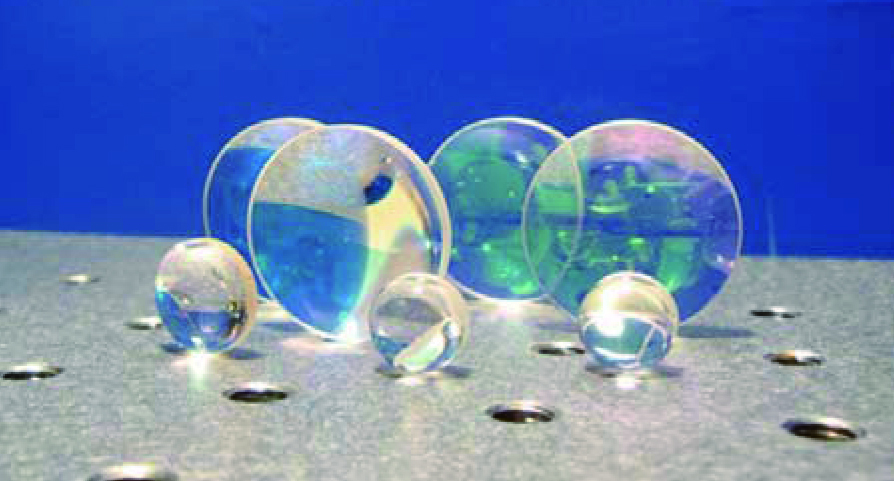

UB4096FS UV Grade Fused Silica Bi-Convex Lenses

UB4096FS

產品型號：UB4096FS
產品說明：

價格(NTD)：$2,715

產品說明

Specification

Material	UV Grade Fused Silica
Diameter (Ø)	25.4mm
Focal Length (EFL)	50mm
Back Focal Length (BFL)	48.01mm
Radius of Curvature (R1=R2)	44.94mm
Center Thickness (Tc)	5.7mm
Edge Thickness (Te)	2.0mm
AR Coating	UV AR Coating 290nm ~ 370nm
