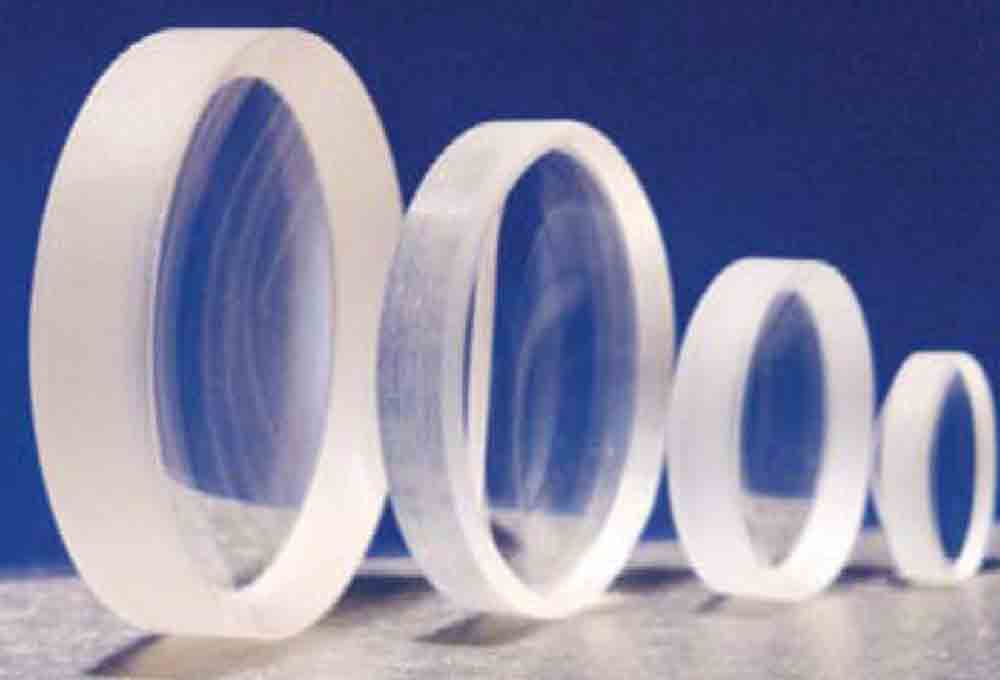

Commercial Grade Fused Silica Bi-Concave Lenses
Commercial Grade Fused Silica Bi-Concave Lenses
產品名稱 : Commercial Grade Fused Silica Bi-Concave Lenses
產品說明 :
產品規格
| Material | UV-Grade Fused Silica |
| Design Wavelength | 587.6mm |
| Focal Length Tolerance | ±1% |
| Diameter Tolerance | +0.0/-0.1mm |
| Thickness Tolerance | ±0.1mm |
| Surface Accuracy | λ/4@632.8nm |
| Surface Quality | 40-20 |
| Centration | <3 arc min |
| Clear Aperture | >90% |
| Bevelling | <0.2x45∘ |
| Coating | UV AR Coating 290 ~ 370nm |
| 產品型號 | 產品說明 | 價格(NTD) | 產品數量 | |
|---|---|---|---|---|
| 0 | UD4797FS | UV Grade Fused Silica Bi-Concave Lenses, Ø6mm, EFL: -6mm, UV AR Coating 290nm ~ 370nm | $2,515 | |
| 1 | UD4148FS | UV Grade Fused Silica Bi-Concave Lenses, Ø6mm, EFL: -12mm, UV AR Coating 290nm ~ 370nm | $2,050 | |
| 2 | UD4271FS | UV Grade Fused Silica Bi-Concave Lenses, Ø9mm, EFL: -9mm, UV AR Coating 290nm ~ 370nm | $2,585 | |
| 3 | UD4014FS | UV Grade Fused Silica Bi-Concave Lenses, Ø9mm, EFL: -18mm, UV AR Coating 290nm ~ 370nm | $2,085 | |
| 4 | UD4771FS | UV Grade Fused Silica Bi-Concave Lenses, Ø12.7mm, EFL: -15mm, UV AR Coating 290nm ~ 370nm | $2,550 | |
| 5 | UD4650FS | UV Grade Fused Silica Bi-Concave Lenses, Ø12.7mm, EFL: -25mm, UV AR Coating 290nm ~ 370nm | $2,500 | |
| 6 | UD4269FS | UV Grade Fused Silica Bi-Concave Lenses, Ø12.7mm, EFL: -30mm, UV AR Coating 290nm ~ 370nm | $2,435 | |
| 7 | UD4511FS | UV Grade Fused Silica Bi-Concave Lenses, Ø12.7mm, EFL: -50mm, UV AR Coating 290nm ~ 370nm | $2,435 | |
| 8 | UD4931FS | UV Grade Fused Silica Bi-Concave Lenses, Ø25.4mm, EFL: -25mm, UV AR Coating 290nm ~ 370nm | $3,250 | |
| 9 | UD4293FS | UV Grade Fused Silica Bi-Concave Lenses, Ø25.4mm, EFL: -50mm, UV AR Coating 290nm ~ 370nm | $1,500 | |
| 10 | UD4735FS | UV Grade Fused Silica Bi-Concave Lenses, Ø25.4mm, EFL: -75mm, UV AR Coating 290nm ~ 370nm | $2,635 | |
| 11 | UD4103FS | UV Grade Fused Silica Bi-Concave Lenses, Ø25.4mm, EFL: -100mm, UV AR Coating 290nm ~ 370nm | $1,265 |
