FF01-937-LP-25

產品型號：FF01-937-LP-25
產品說明：

價格(NTD)：$0

產品規格產品說明

Model No	FF01-937-LP-25
Substrate Thickness Tolerance (Unmounted)	± 0.1 mm
Edge Wavelength	945 nm

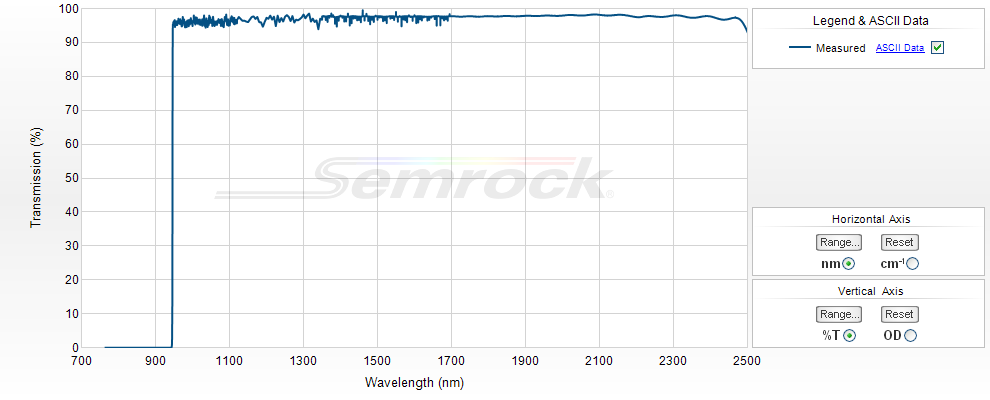

Avg. Transmission	> 93%
Passband	950 – 2500 nm
Diameter (Mounted)	25 mm
Thickness (Mounted)	3.5 mm
Substrate Thickness (Unmounted)	2.0 mm
Diameter Tolerance (Mounted)	+ 0.0 / – 0.1 mm
Thickness Tolerance (Mounted)	± 0.1 mm
Clear Aperture	≥ 22 mm
Scratch-Dig	60-40
