Ø25.4mm Zero-Order Waveplates

 Ø25.4mm Zero-Order Waveplates

產品名稱 : Ø25.4mm Zero-Order Waveplates
產品說明 :
Waveplates are made from materials that exhibit birefringence. The velocities of extraordinary and ordinary rays through birefringent material varies inversely with their refractive indices. This difference in velocities gives rise to a phase difference when the two beams recombine. At any specific wavelength, the phase difference is governed by the thickness of the retarder (waveplate).

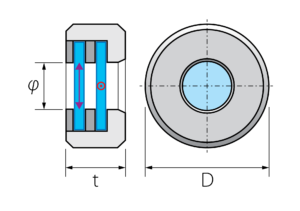

Standard waveplates are based on air-spaced construction that allows their use for high-power applications. The damage threshold is more than 20 J/cm² for 10 ns pulses @ 1064 nm.

Our waveplates are made from excellent-quality laser-grade crystalline quartz material.
Best suited to narrow bandwidth and operating temperature range.

產品規格
Optical Material Crystalline Quartz
Transmitted wavefront distortion, P-V <λ/10 @ 632.8 nm
Clear Aperture Ø5 – 76.2 mm
LIDT >10 J/cm² @ 1064 nm, 10 ns, 10 Hz
Surface Quality 10 - 5
Retardation tolerance @ 20 °C ±λ/300
AR coatings Ravg<0.2% on each surface
Mounting Black, white anodized metal mount



產品型號 產品說明 Wavelength (nm) Retardation 價格(NTD) 產品數量
0 2-CPW-ZO-L2-0266 Zero-Order Waveplate 266 λ/2 -
1 2-CPW-ZO-L4-0266 Zero-Order Waveplate 266 λ/4 -
2 2-CPW-ZO-L2-0343 Zero-Order Waveplate 343 λ/2 -
3 2-CPW-ZO-L4-0343 Zero-Order Waveplate 343 λ/4 -
4 2-CPW-ZO-L2-0355 Zero-Order Waveplate 355 λ/2 -
5 2-CPW-ZO-L4-0355 Zero-Order Waveplate 355 λ/4 -
6 2-CPW-ZO-L2-0400 Zero-Order Waveplate 400 λ/2 -
7 2-CPW-ZO-L4-0400 Zero-Order Waveplate 400 λ/4 -
8 2-CPW-ZO-L2-0515 Zero-Order Waveplate 515 λ/2 -
9 2-CPW-ZO-L4-0515 Zero-Order Waveplate 515 λ/4 -
10 2-CPW-ZO-L2-0532 Zero-Order Waveplate 532 λ/2 -
11 2-CPW-ZO-L4-0532 Zero-Order Waveplate 532 λ/4 -
12 2-CPW-ZO-L2-0633 Zero-Order Waveplate 633 λ/2 -
13 2-CPW-ZO-L4-0633 Zero-Order Waveplate 633 λ/4 -
14 2-CPW-ZO-L2-0780 Zero-Order Waveplate 780 λ/2 -
15 2-CPW-ZO-L4-0780 Zero-Order Waveplate 780 λ/4 -
16 2-CPW-ZO-L2-0800 Zero-Order Waveplate 800 λ/2 -
17 2-CPW-ZO-L4-0800 Zero-Order Waveplate 800 λ/4 -
18 2-CPW-ZO-L2-0852 Zero-Order Waveplate 852 λ/2 -
19 2-CPW-ZO-L4-0852 Zero-Order Waveplate 852 λ/4 -
20 2-CPW-ZO-L2-1030 Zero-Order Waveplate 1030 λ/2 -
21 2-CPW-ZO-L4-1030 Zero-Order Waveplate 1030 λ/4 -
22 2-CPW-ZO-L2-1064 Zero-Order Waveplate 1064 λ/2 -
23 2-CPW-ZO-L4-1064 Zero-Order Waveplate 1064 λ/4 -
24 2-CPW-ZO-L2-1550 Zero-Order Waveplate 1550 λ/2 -
25 2-CPW-ZO-L4-1550 Zero-Order Waveplate 1550 λ/4 -
