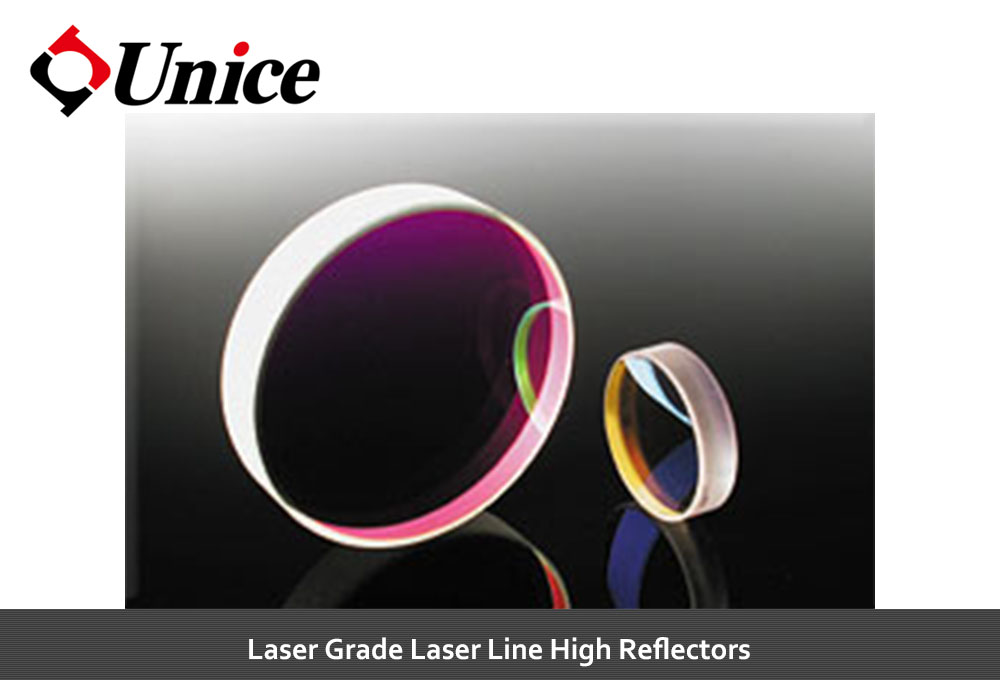

HR-5009U-633-45U

HR-5009U-633-45U

HR-5009U-633-45U

產品型號：HR-5009U-633-45U
產品說明：

● High reflectance

價格(NTD)：$0

產品規格

Model No	HR-5009U-633-45U
Material	UV Grade Fused Silica
Diameter (mm)	50.8
Thickness (mm)	9.525
Wavelength (nm)	633
AOI (Degree)	45
Polarization	UNP
Runp (%)	≥ 99.5
Surface Flatness @633 nm	< λ / 10
Surface Quality	< 10/5
Diameter Tolerance (mm)	< + 0.00 / – 0.20
Thickness Tolerance (mm)	< ± 0.25
Clear Aperture	> 85% of diameter
Scattering	Immeasurable
Durability	Meet adhesion & abrasion per MIL-C-675
