Medium Extinction Broadband Polarizing Cube Beamsplitters
Medium Extinction Broadband Polarizing Cube Beamsplitters
產品名稱 : Medium Extinction Broadband Polarizing Cube Beamsplitters
產品說明 :
These polarizing cube beamsplitters provide a high degree of polarization over a broad visible spectral range. They are made by cementing the prisms together making them unsuitable for high power use. They use BK7 prisms and provide a medium extinction ratio of 100:1.
產品規格
| Material | BK7A |
| Surface Flatness | < λ / 8 @ 633 nm |
| Surface Quality | <20/10 |
| Beam Deviation | < 3 arc min |
| Dimension Tolerance | < + 0.00 / – 0.20 mm |
| Extinction Ratio | Tp / Ts > 100: 1 |
| AR Coating | < 0.5% per face |
| Transmission of p-polarization | T average > 90% |
| Reflectance of s-polarization | R average > 99.8% |
| Absorption | Negligible |
| Damage Thresholds | > 0.5 J/cm2, 10 ns |
| Clear Aperture | > 85% of central circular dimension |
| Temperature Range | – 50° C to 80° C |
 |
|

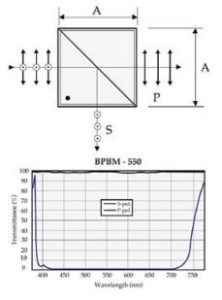

| 產品型號 | 產品說明 | Cube Size A (mm) | Wavelength (nm) | 價格(NTD) | 產品數量 | |
|---|---|---|---|---|---|---|
| 0 | BPBM-10B-550 | Medium Extinction Broadband Polarizing Cube Beamsplitter | 10 | 550 | - | |
| 1 | BPBM-12.7B-550 | Medium Extinction Broadband Polarizing Cube Beamsplitter | 12.7 | 550 | - | |
| 2 | BPBM-25.4B-550 | Medium Extinction Broadband Polarizing Cube Beamsplitter | 25.4 | 550 | - | |
| 3 | BPBM-38.1B-550 | Medium Extinction Broadband Polarizing Cube Beamsplitter | 38.1 | 550 | - | |
| 4 | BPBM-50.8B-550 | Medium Extinction Broadband Polarizing Cube Beamsplitter | 50.8 | 550 | - |
