High Energy Polarizing Cubes

產品名稱 : High Energy Polarizing Cubes
產品說明 :

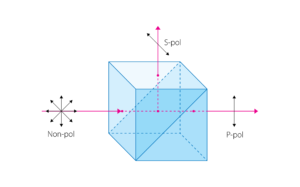

Polarizing beamsplitter cubes offer several advantages over plate beamsplitters. They are easy to handle, high contrast and high-extinction-ratio polarizers that split a randomly polarized beam into two orthogonal, linearly polarized components. These products are typically used in laser-beam separation and combination, and optical-isolation applications. The epoxy-free construction of the cubes enables a superior performance at high energy levels.

Features
● Easy, deformation-free mounting
● High extinction ratio in transmission: Tp/Ts > 1000:1
● Low reflected and transmitted wavefront distortion
● No ghost reflections
● Minimal beam displacement
● Negligible absorption of reflected and transmitted beams
● High transmission of p-polarization: Tp > 97%
● For collimated beams only
● Input and output surfaces are AR-coated for specified wavelengths

*** Custom sizes are available on request ***
