產品名稱 : Variable-Frequency RF Drivers
產品說明 :
Unice offers a large verity of RF Drivers compatible with our Acousto-Optic components. The following instructions will help you choose and pick the proper variable frequency driver for your application.
More detail products information please contact with our services center.
E-mail: unicehq@unice.com.tw
產品規格
More detail products information please contact with our services center. E-mail: unicehq@unice.com.tw
| Model. | VFX-XX-YY-V-A-F2 | VFX-XX-YY-V-B1-F2/2Ch |
|---|---|---|
| Frequency Range | Corresponding to the AO Device Requirements | Matching the 2-D AOD controlled by application of external tuning voltage |
| Tuning Voltage | 0 - 10 V analog (-2 to +20 VDC no damage) | |
| Frequency Stability | 1% nominal after 15 minute warm-up, constant temperature | |
| Scanning Speed | 50 micro sec from min to max frequency with step change in tuning voltage | |
| Output Power | Power is optimized for peak efficiency with supplied AO device. | |
| Modulation Type | Analog Amplitude or TTL Compatible (optional) DC-50 MHz | |
| Modulation Input | 50 Ω; 0-1 V or 330 Ω; 0-5 V | |
| Operating Power | 90-240 VAC ±25% 50-60 Hz | |
| Enclosure | The unit will be packaged in a 190 mm (7.5 inch) wide by 100 mm (4 inch) high by 220 mm (8.75 inch) deep instrument case. The rear panel heat sink increases the depth to 240 mm (9.75 inches) maximum. The size is exclusive of connectors. A detachable AC line cord and RF cable are provided. | |
| Environmental | Nominal Laboratory Conditions: The maximum temperature is +35° C. The unit is not sealed against moisture or condensing humidity. | |
| Remark: 1. In addition to the standard product shown above, customer configurations are available for specialized applications. |
||

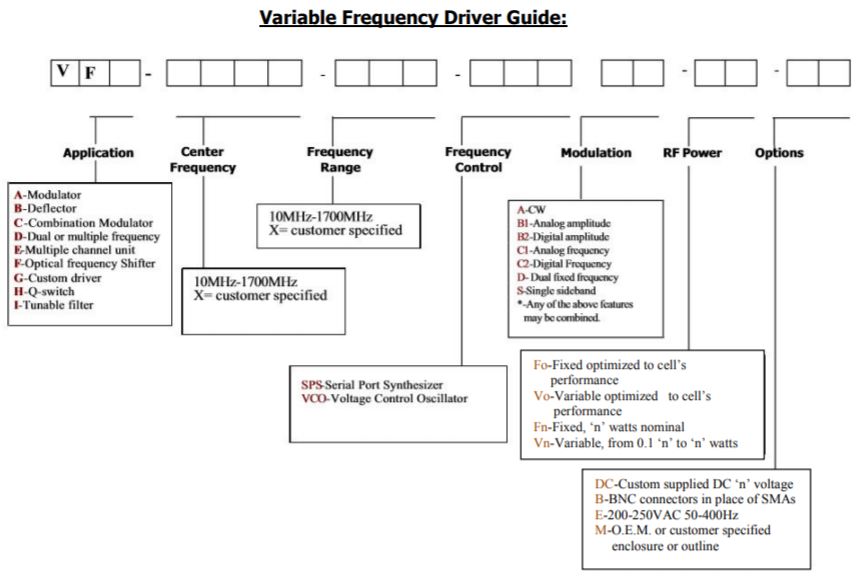

Ordering Information
